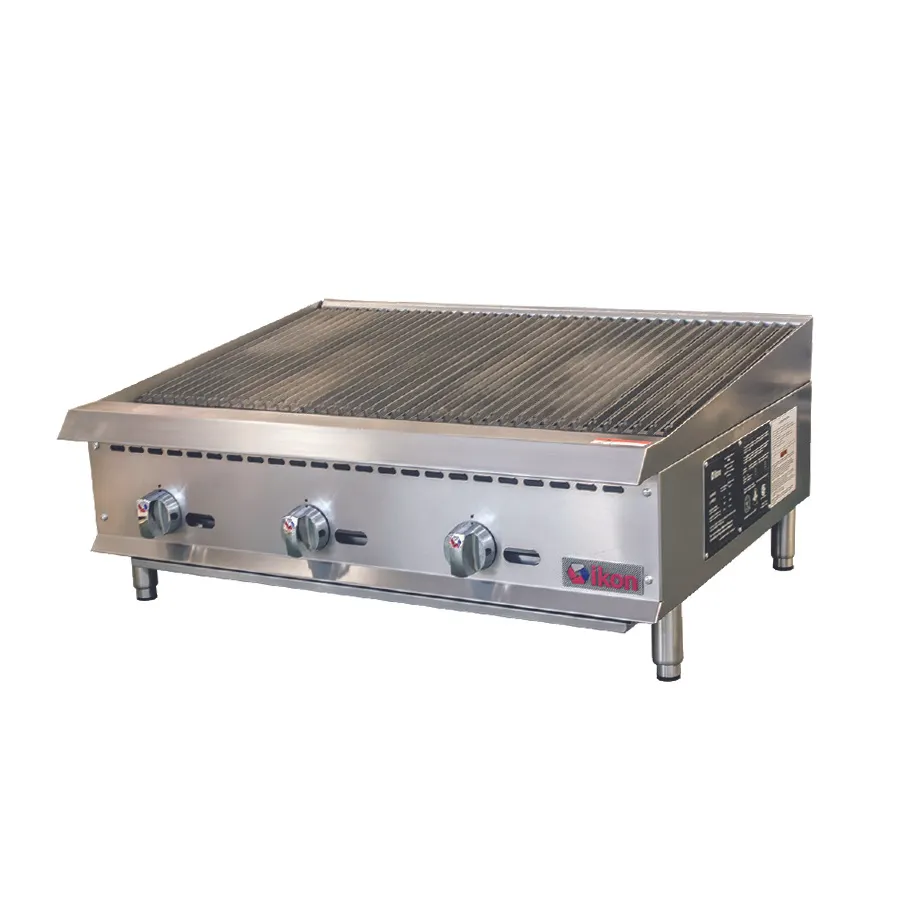

Name: IKON IRB-36 36" Countertop Gas Radiant Charbroiler w/ (3) Burners, 105.000 BTU
Brand: IKON
SKU: MVP-IRB-36
Price: 1200 USD
Availability: InStock

The Ikon Radiant Broilers adjustable manual gas controls provide easy and safe operations

Ikon IRB-36 Features

The Ikon Radiant Broilers are available in 12”, 24”, 36”, & 48” widths
The 3 height position cast iron grates allow cooking various products and temperatures
Pilot light can be lit from the front for ease of use
“U” shape burners provide even heat distribution every 12”
Adjustable pilot light lit from front of unit 35,000 BTU / burner
Available in Natural gas(NG) or Liquid Propane(LP)
A conversion kit is supplied with each unit
Flue located on back of unit for ample ventilation
Adjustable stainless steel legs, non-skid feet
Easy to remove full width crumb tray
10 Ga. Cast Iron Radiants
Gas control knob every 12”
All stainless steel cabinet
Double wall insulated sides
“Cool-to-the-touch” front s/s edge
Back and side splash guards

Gas Requirements

Natural Gas or Liquid Propane (LP) Gas main supply required
A conversion kit is supplied with each unit.In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
3/4” NPT gas connection
35,000 BTU’s per burner
One pilot light per burner
Natural gas 4” W.C., LP gas 10” W.C.

From The Manufacturer

IKON Cooking Radiant Broiler, gas, 36" W x 34.4" D, (3) 35,000 BTU 'U' shape burners, 10 gauge cast iron radiants, rear flue, adjustable manual controls, 3-position cast iron grates, front lit pilot light, double wall insulated sides, back & side splash guards, removable full width crumb tray, rear gas regulator, stainless steel cabinet, adjustable stainless steel legs, non-skid feet, 105,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame

Manufacturer	IKON
Model Number	IRB-36
Weight	229 lbs
Width	36″
Depth	24.4″
Height	15.2″
Installation Type	countertop
Power Type	gas
Number of Burners	3 burners
Heating Source	radiant
Control Type	manual controls
Exterior Finish	all stainless steel exterior
Heating Source Material	cast iron
Total BTU	105,000
Cooking Surface Depth	20"
