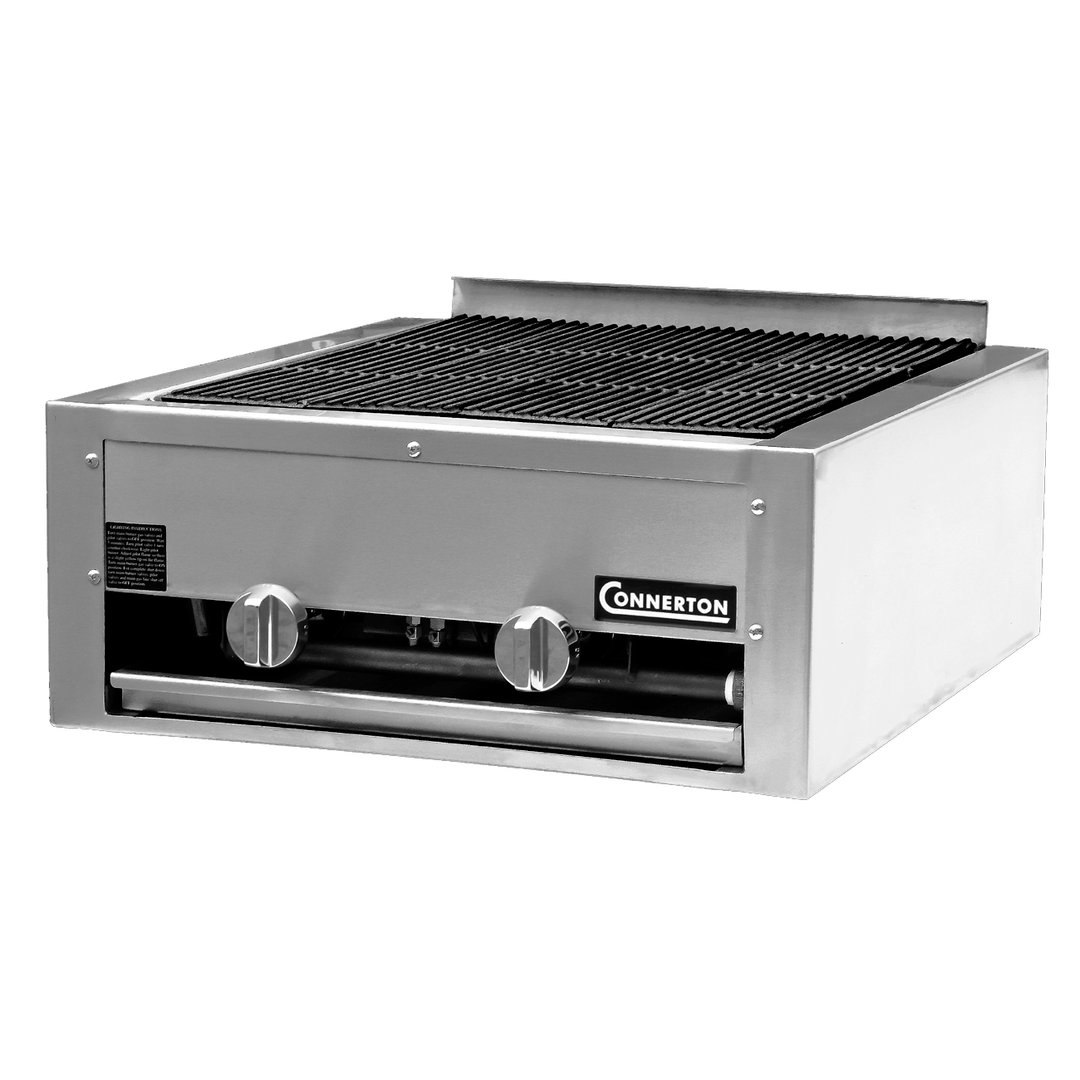

The Connerton LRB-36-S Heavy Duty Lava Rock Broiler

Why use Connerton Broiler?

LRB-S series lava rock broiler features a 40,000 BTU cast-iron ‘H” burner. The fully welded #304 stainless steel body is available in width sizes 18″ through 48″. It is also available as a floor model with adjustable leveling feet or casters.

Connerton LRB-36-S Features

Stainless steel body
Welded #304 Stainless Steel: For easy cleaning and long life
24” Deep Cooking Surface: Increased area for maximum production
Fully-welded
40,000 BTU burners: Cuts preheat time, increases production
CSA & NSF design certified

Connerton LRB-36-S Specifications

Body / Fire Box: 14 Gauge #304 Stainless Steel, Fully Welded
Front: Removable 18 Gauge #304 Stainless Steel Panel
Top Grates: Cast Iron w/Adjustable Rear Height
Bottom Grates: Cast Iron
Burners: 40,000 BTU Cast Iron
Drip Pan: 16 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: ¾ NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Legs (Floor Model): 1-1/2” sq. X 16 Gauge #304 Stainless Steel tubing welded to body, with Stainless Steel undershelf and adjustable feet.

Connerton LRB-36-S Options

1/2” Steel Rolling Rod Grates
4” Removable Stainless Steel Splash, Sides and Back
Stainless Steel Plate Shelf
4” Legs Accessory
Floor Model Accessory

From The Manufacturer

Charbroiler, countertop, gas, 36"W, lava-rock with cast iron bottom grates, cast iron top grates with rear height adjustment, manual controls, 3/4" NPT rear gas connection, fully welded stainless steel body, fire box, front panel & drip pan, 120,000 BTU, NSF, CSA

Manufacturer	Connerton
Model Number	LRB-36-S
Weight	250 lbs
Width	36″
Depth	27″
Height	10″
Installation Type	countertop
Power Type	gas
Number of Burners	3 burners
Heating Source	lava rocks
Control Type	manual controls
Exterior Finish	all stainless steel exterior
Heating Source Material	cast iron
Certifications	NSF, CSA
Total BTU	120,000
Cooking Surface Depth	24"
