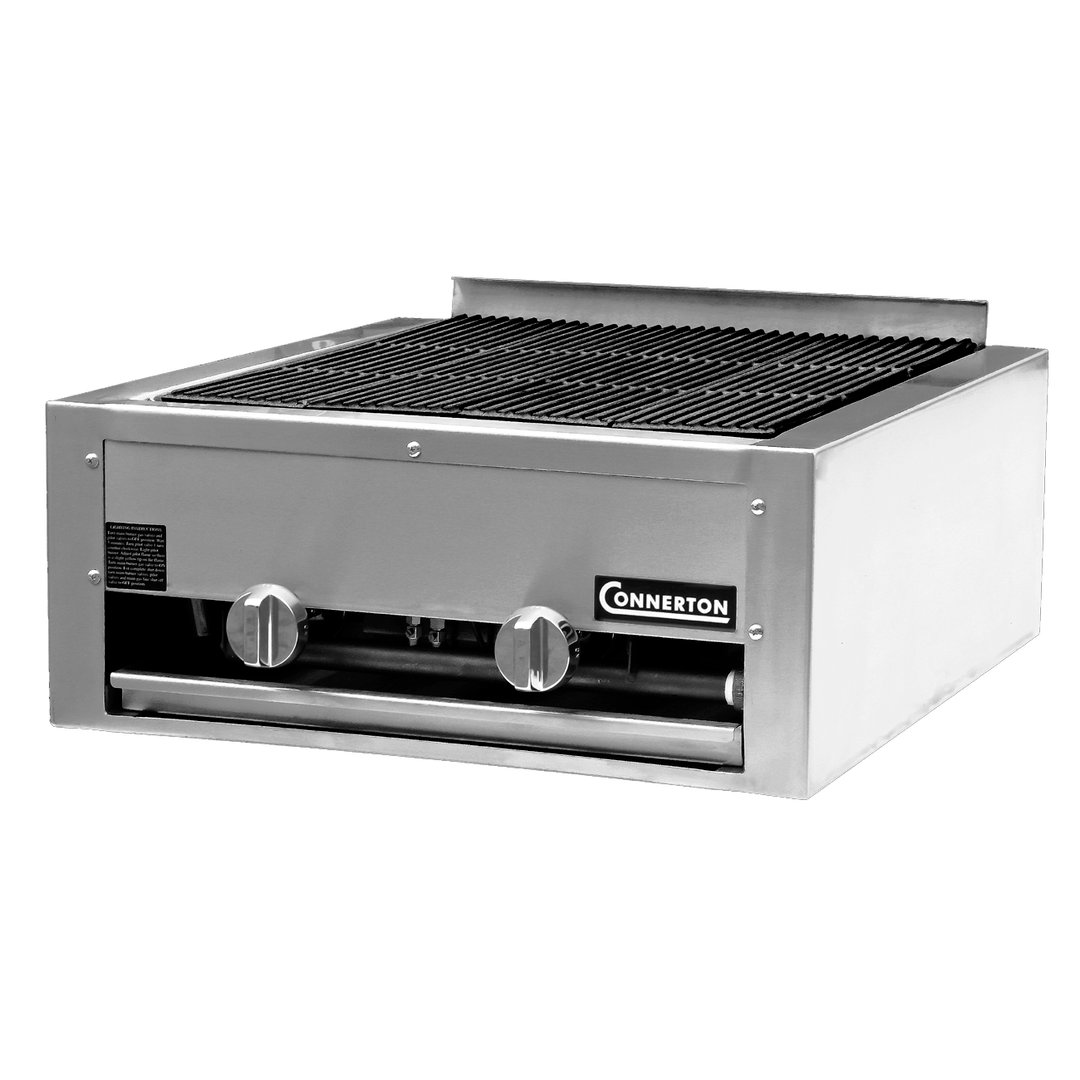

The Connerton LRB-42-S Heavy Duty Lava Rock Broiler

Why use Connerton Broiler?

LRB-S series lava rock broiler features a 40,000 BTU cast-iron ‘H” burner. The fully welded #304 stainless steel body is available in width sizes 18″ through 48″. It is also available as a floor model with adjustable leveling feet or casters.

Connerton LRB-42-S Features

Stainless steel body
Welded #304 Stainless Steel: For easy cleaning and long life
24” Deep Cooking Surface: Increased area for maximum production
Fully-welded
40,000 BTU burners: Cuts preheat time, increases production
CSA & NSF design certified

Connerton LRB-42-S Specifications

Body / Fire Box: 14 Gauge #304 Stainless Steel, Fully Welded
Front: Removable 18 Gauge #304 Stainless Steel Panel
Top Grates: Cast Iron w/Adjustable Rear Height
Bottom Grates: Cast Iron
Burners: 40,000 BTU Cast Iron
Drip Pan: 16 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: ¾ NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Legs (Floor Model): 1-1/2” sq. X 16 Gauge #304 Stainless Steel tubing welded to body, with Stainless Steel undershelf and adjustable feet.

Connerton LRB-42-S Options

1/2” Steel Rolling Rod Grates
4” Removable Stainless Steel Splash, Sides and Back
Stainless Steel Plate Shelf
4” Legs Accessory
Floor Model Accessory

From The Manufacturer

Charbroiler, countertop, gas, 42"W, lava-rock with cast iron bottom grates, cast iron top grates with rear height adjustment, manual controls, 3/4" NPT rear gas connection, fully welded stainless steel body, fire box, front panel & drip pan, 120,000 BTU, NSF, CSA

Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.

Manufacturer	Connerton
Model Number	LRB-42-S
Weight	290 lbs
Width	42″
Depth	27″
Height	10″
Installation Type	countertop
Power Type	gas
Number of Burners	3 burners
Heating Source	lava rocks
Control Type	manual controls
Exterior Finish	all stainless steel exterior
Heating Source Material	cast iron
Certifications	NSF, CSA
Total BTU	120,000
Cooking Surface Depth	24"

	Connerton LRB-42-S 42" Countertop Gas Lava Rock Charbroiler w/ (3) Burners, 120.000 BTU Discounted Shipping	Connerton LRB-36-S 36" Countertop Gas Lava Rock Charbroiler w/ (3) Burners, 120.000 BTU Discounted Shipping	Connerton LRB-42-F 42" Floor Model Gas Lava Rock Charbroiler w/ (3) Burners, 120.000 BTU Discounted Shipping	Connerton LRB-36-F 36" Floor Model Gas Lava Rock Charbroiler w/ (3) Burners, 120.000 BTU Discounted Shipping	Connerton RLRB-23-52L 52" Countertop Gas Lava Rock Charbroiler w/ (5) Burners, 140.000 BTU Discounted Shipping	Connerton RLRB-23-47L 47" Countertop Gas Lava Rock Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-42L 42" Countertop Gas Lava Rock Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-37L 37" Countertop Gas Lava Rock Charbroiler w/ (3) Burners, 84.000 BTU Discounted Shipping	Connerton RLRB-23-32L 32" Countertop Gas Lava Rock Charbroiler w/ (3) Burners, 84.000 BTU Discounted Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU4.000 - 24.500	Total BTU54.000 - 99.500
Certifications	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)42	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)42	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)52	WIDTH (SIDE - SIDE)47	WIDTH (SIDE - SIDE)42	WIDTH (SIDE - SIDE)37	WIDTH (SIDE - SIDE)32
Manufacturer	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton
Control Type	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls
Heating Source	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks
Installation Type	Installation Typecountertop	Installation Typecountertop	Installation Typefloor model	Installation Typefloor model	Installation Typecountertop	Installation Typecountertop	Installation Typecountertop	Installation Typecountertop	Installation Typecountertop
Power Type	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas
Depth (front - back)	Depth (front - back)27"	Depth (front - back)27"	Depth (front - back)27"	Depth (front - back)27"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior
Number of Burners	Number of Burners3 burners	Number of Burners3 burners	Number of Burners3 burners	Number of Burners3 burners	Number of Burners5 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners3 burners	Number of Burners3 burners
Heating Source Material	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron
Base Type	Base Type-	Base Type-	Base Typeopen stand	Base Typeopen stand	Base Type-	Base Type-	Base Type-	Base Type-	Base Type-
Grid	Grid -	Grid -	Grid cast iron grid	Grid cast iron grid	Grid -	Grid -	Grid -	Grid -	Grid -
