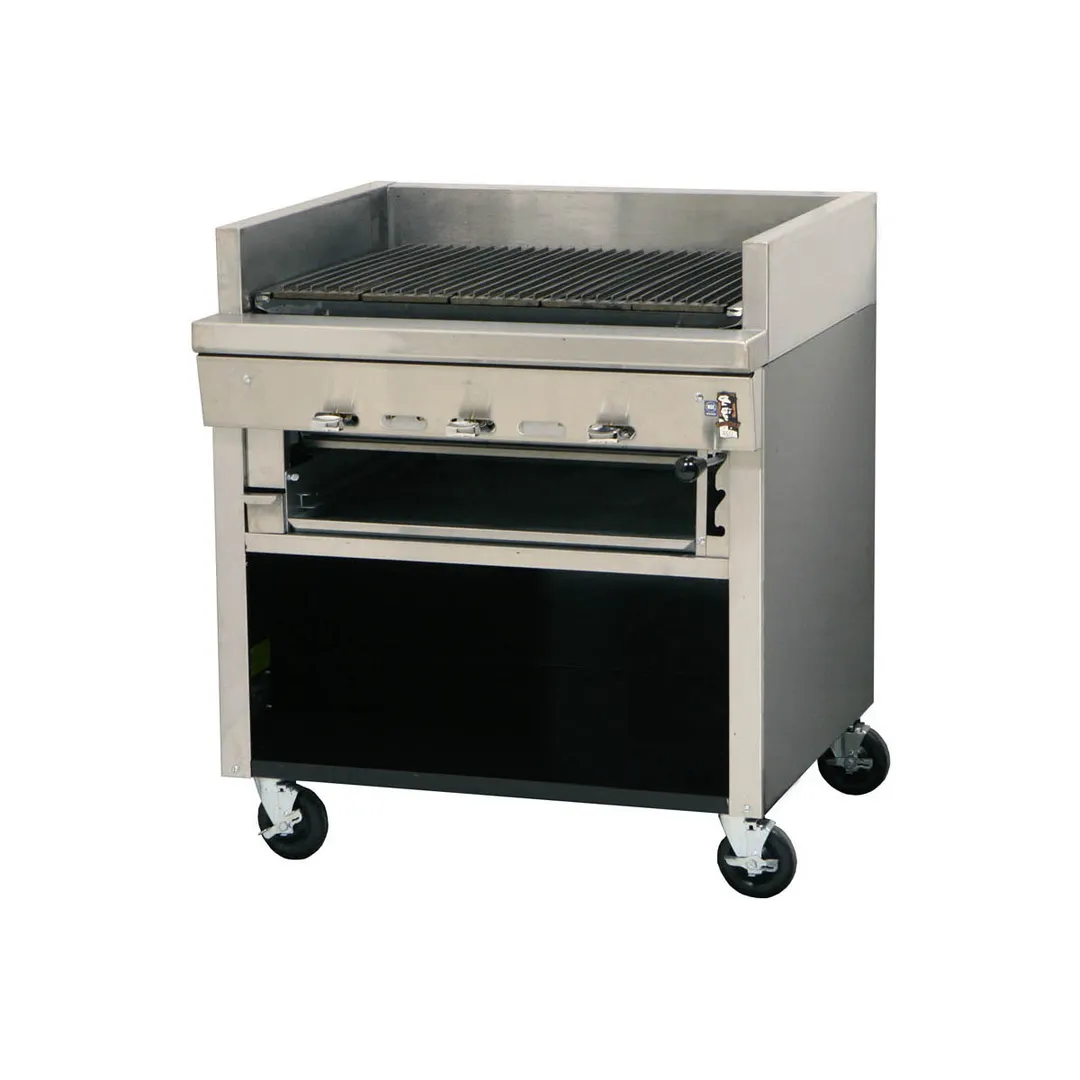

Montague Company UFS-30C Gas Underfired Broilers - Ceramic Free Standing Cabinet Base
Overview
The UFS-30C, Legend™ Char-Broiler, 30" heavy duty free-standing, ceramic briquettes, adjustable 3-position cast iron Ultra-Flow reversible top grate, stainless steel front, top trim & splash shields, open cabinet base, 3/4" rear gas, with pressure regulator, 6" adjustable stainless steel legs, 90,000 BTU , CSA Star, CSA Flame.
Burner/Ceramic Bed Features
- 45,000 BTU/hr cast iron ‘H’ burners
- Stainless steel drip shields;
- Individual manual gas valves for zoned heat control
- Standing pilot for automatic ignition.
- Quick heat absorbing ceramic briquettes reduces flare-ups
- Full width debris screen under burners and above:
- Full width removable trip tray
Montague Company UFS-30C Standard Features
- Satin finish stainless steel front & top trim with 4-1/2” (114mm) deep front rail
- 5-9/16” (141mm) high stainless steel side and rear splash
- Open cabinet base with 6” (152mm) adjustable stainless steel legs
- Other surfaces painted black with electrolytic zinc undercoating
- Full width front grease trough for easy transfer
- Removable large capacity grease containe
Montague Company UFS-30C Specifications
- Description : Ceramic Style Underfired Broiler Range, Free Standing w/Cabinet Base
- Overall Width : 30” (762mm)
- Grates : 4
- Cooking Area : 24” x 24” (610 x 610mm)
- Burners : 2
- Power BTU/hr (kW) : 90,000 (26.4)
- Shipping Weight : 442 lbs (200 kg
- Cube (Crated) ft3/m : 32/.9
- Other Details : See spec. sheet
From The Manufacturer
Legend™ Char-Broiler, 30" heavy duty free-standing, ceramic briquettes, adjustable 3-position cast iron Ultra-Flow reversible top grate, stainless steel front, top trim & splash shields, open cabinet base, 3/4" rear gas, with pressure regulator, 6" adjustable stainless steel legs, 90,000 BTU NSF, CSA Star, CSA Flame
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
