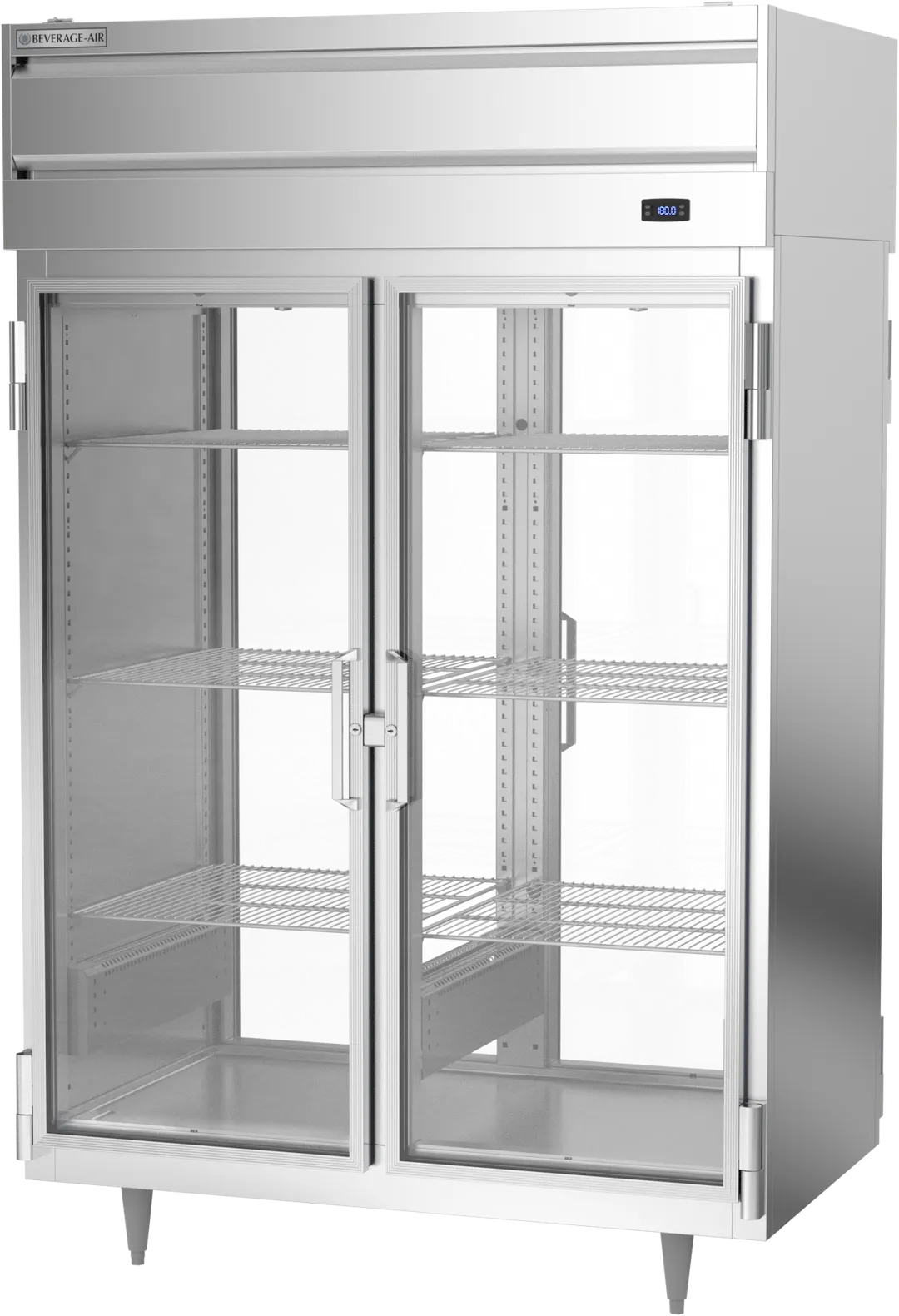

Beverage Air Pass-Thru Heated Cabinet
Cabinet Construction
- Exterior stainless steel front and side (galvanized top and bottom)
- Interior is made of corrosion resistant aluminum
- Stainless steel breaker caps
- Full electronic control
- Operational indicator panel contains thermometer and adjustable thermostat control which is accurately calibrated from 80°F to 180°F
- Built-in, adjustable humidity control vent
- Safety shield strip type heating elements
- External mounted blower maintains even temperatures
- Heavy-duty cylinder locks
- Self-closing doors with 120° hold open feature, with cam-lift hinges
- One-piece, snap-in magnetic door gasket
- Hinged front shroud
- Proximity door switch activates interior incandescent lighting
- 6” Adjustable legs
- Six (6) silver freeze shelves
- 8’ Cord and plug
Electrical System
- 20 AMP breaker required for double door units
- Strip type 750-watt heating elements, operating on 208-240/60/1, having a total of 1500 watts per compartment
- Externally mounted blower system maintains even temperature through out the food zone area
From The Manufacturer
Warming Cabinet, pass-thru, two-section, 43.5 cu. ft., (4) full height doors, cylinder lock, (6) silver freezer shelves, exterior digital thermometer, top mounted heating system, aluminum interior, stainless steel front & sides, 13 amps, cULus, UL EPH Classified, MADE IN USA
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
