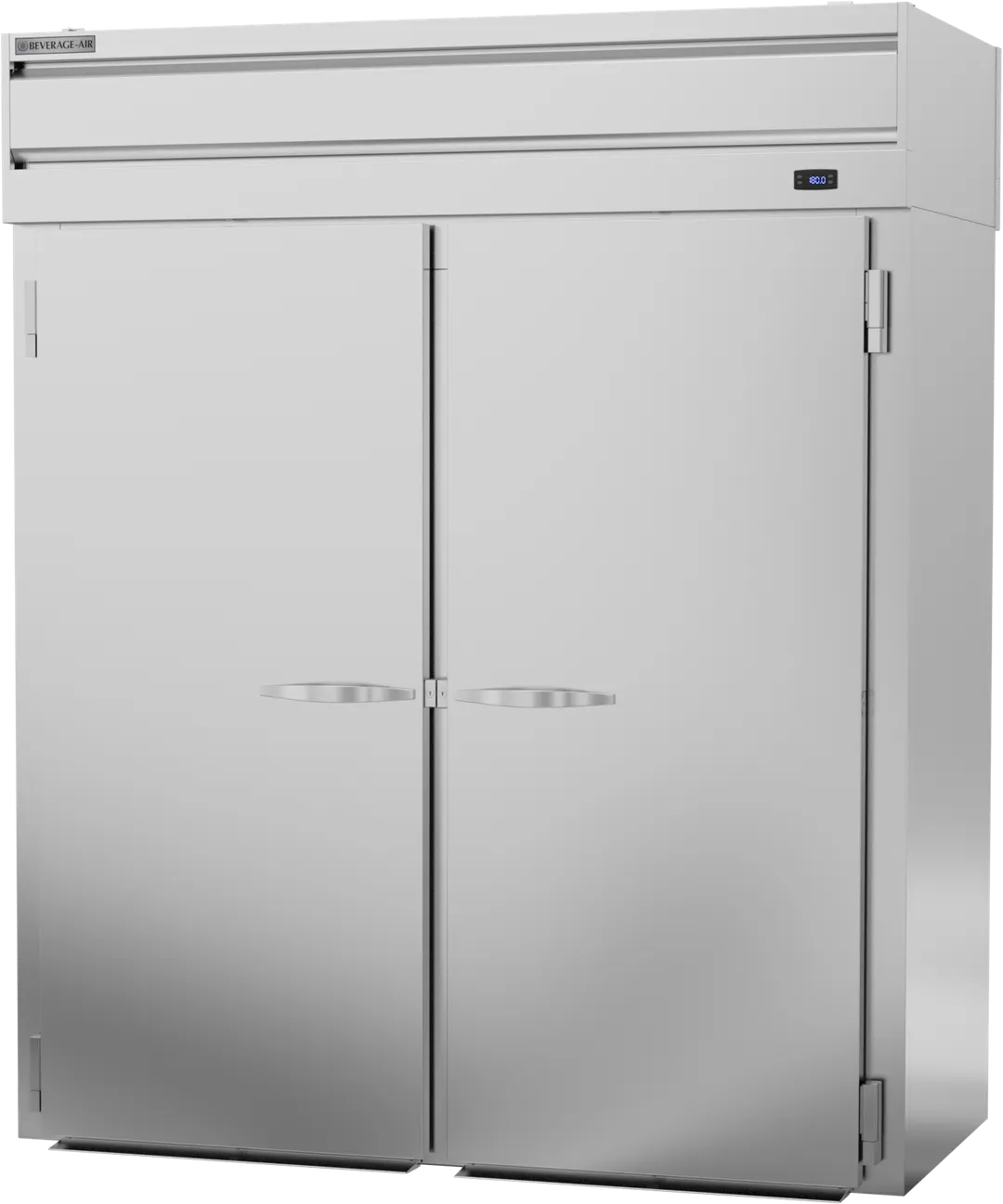

Beverage Air Pass-Thru Heated Cabinet
Cabinet Construction
- Exterior stainless steel front and side (galvanized top, back and bottom)
- Interior is made of corrosion resistant aluminum
- Stainless steel interior door liner
- Stainless steel breaker caps
- Full electronic control
- 22 Gauge stainless steel doors
- Adjustable electronic temp control from 80°F to 180°F
- Built-in, adjustable humidity control vent
- Safety shielded strip type heating elements
- Accepts Cart: 26” (W) x 26” (D) x 64 1/2” (H) (cart not included)
- Heavy-duty cylinder locks
- Self-closing doors with 120° hold open feature, with cam-lift hinges
- One-piece, snap-in magnetic door gasket
- Hinged front shroud
- Proximity door switch activates interior incandescent lighting
- 8’ Cord and plug
Electrical System
- 20 AMP breaker required for double door units
- Strip type 750-watt heating elements, operating on 208-240/60/1, having a total of 3000 watts
- Externally mounted blower system maintains even temperature through out the food zone area
From The Manufacturer
Warming Cabinet, roll-thru, two-section, 72.4 cu. ft., (4) full height doors, cylinder lock, (6) silver freezer shelves, exterior digital thermometer, top mounted heating system, aluminum interior, stainless steel front & sides, 20 amp breaker required, cULus, UL EPH Classified, MADE IN USA
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
