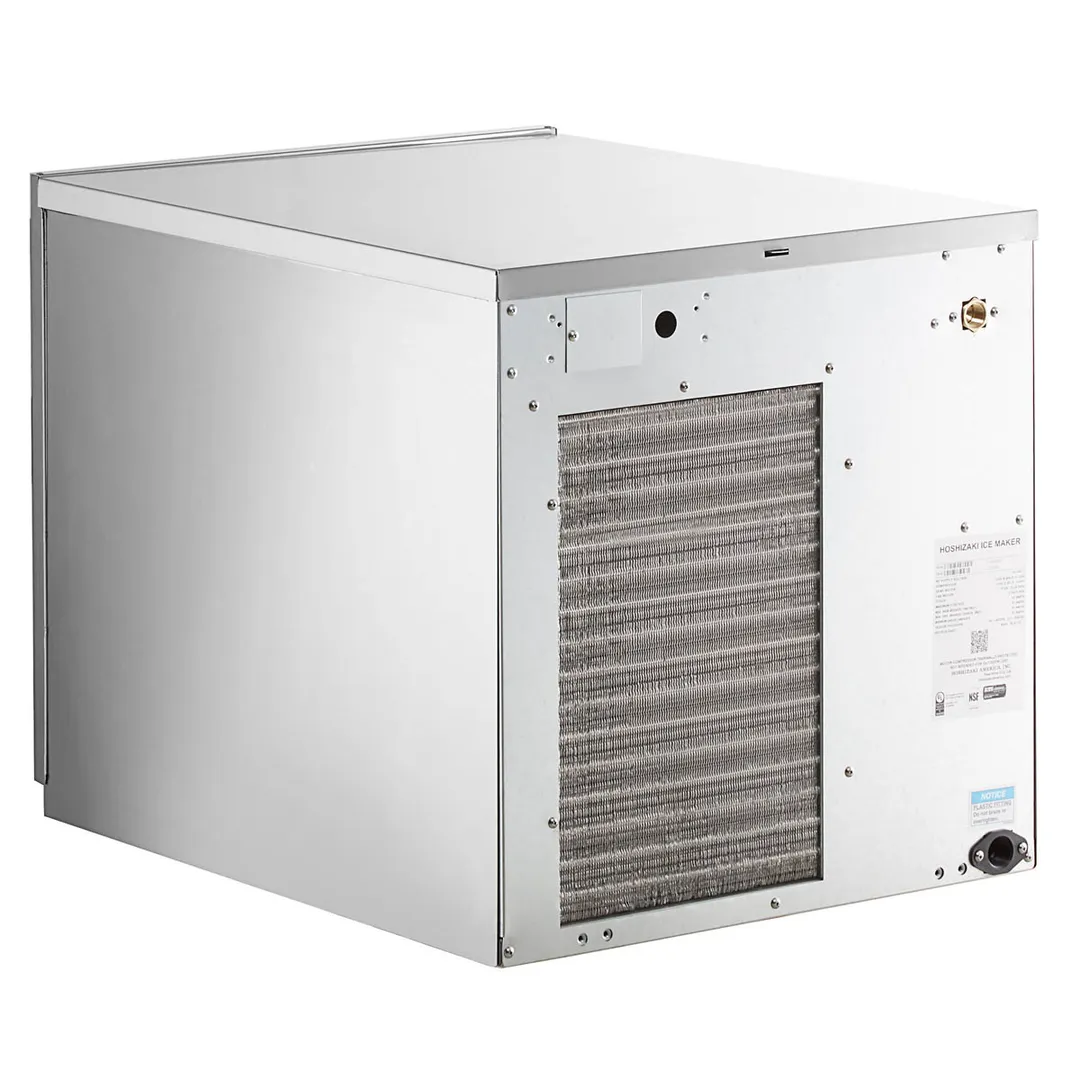

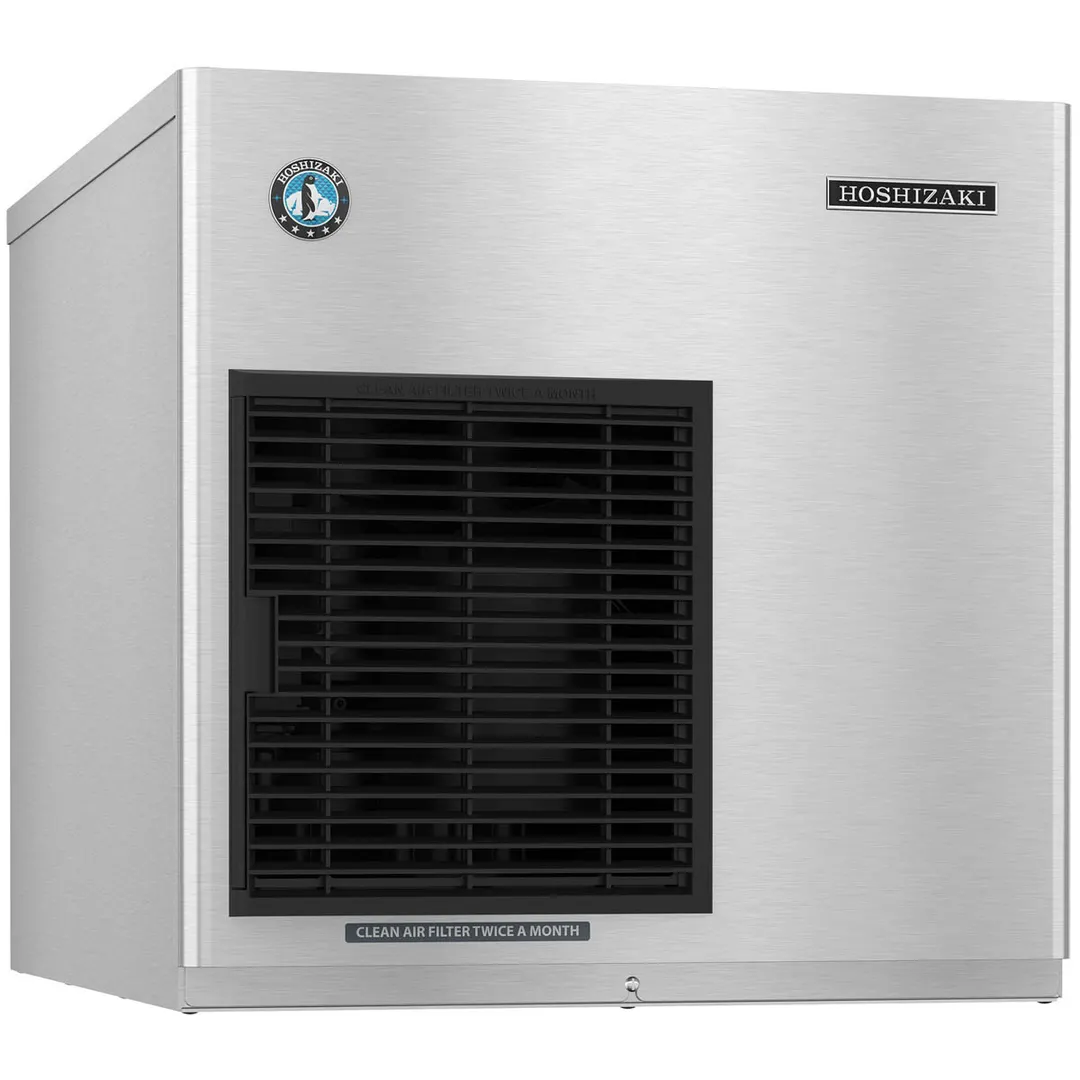

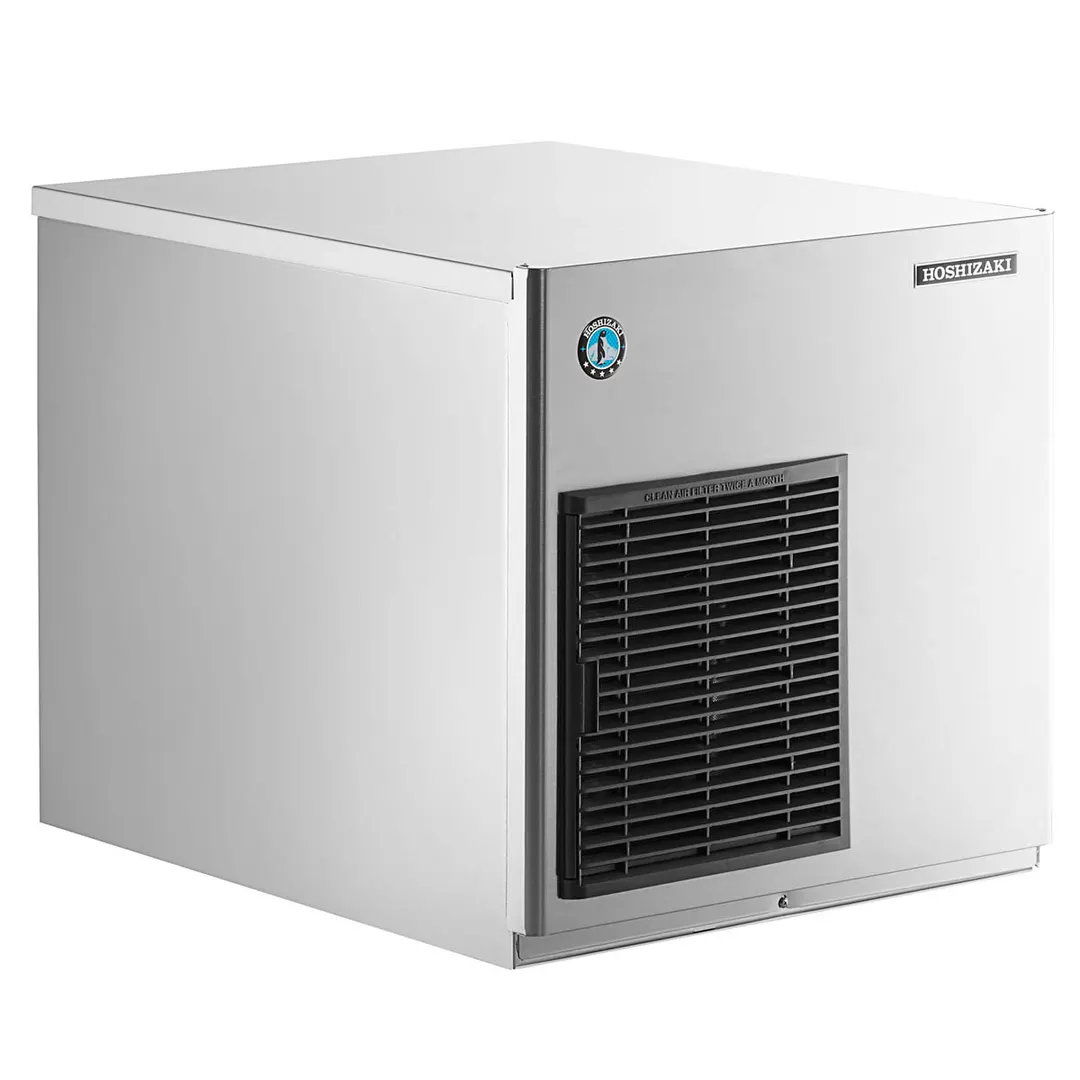

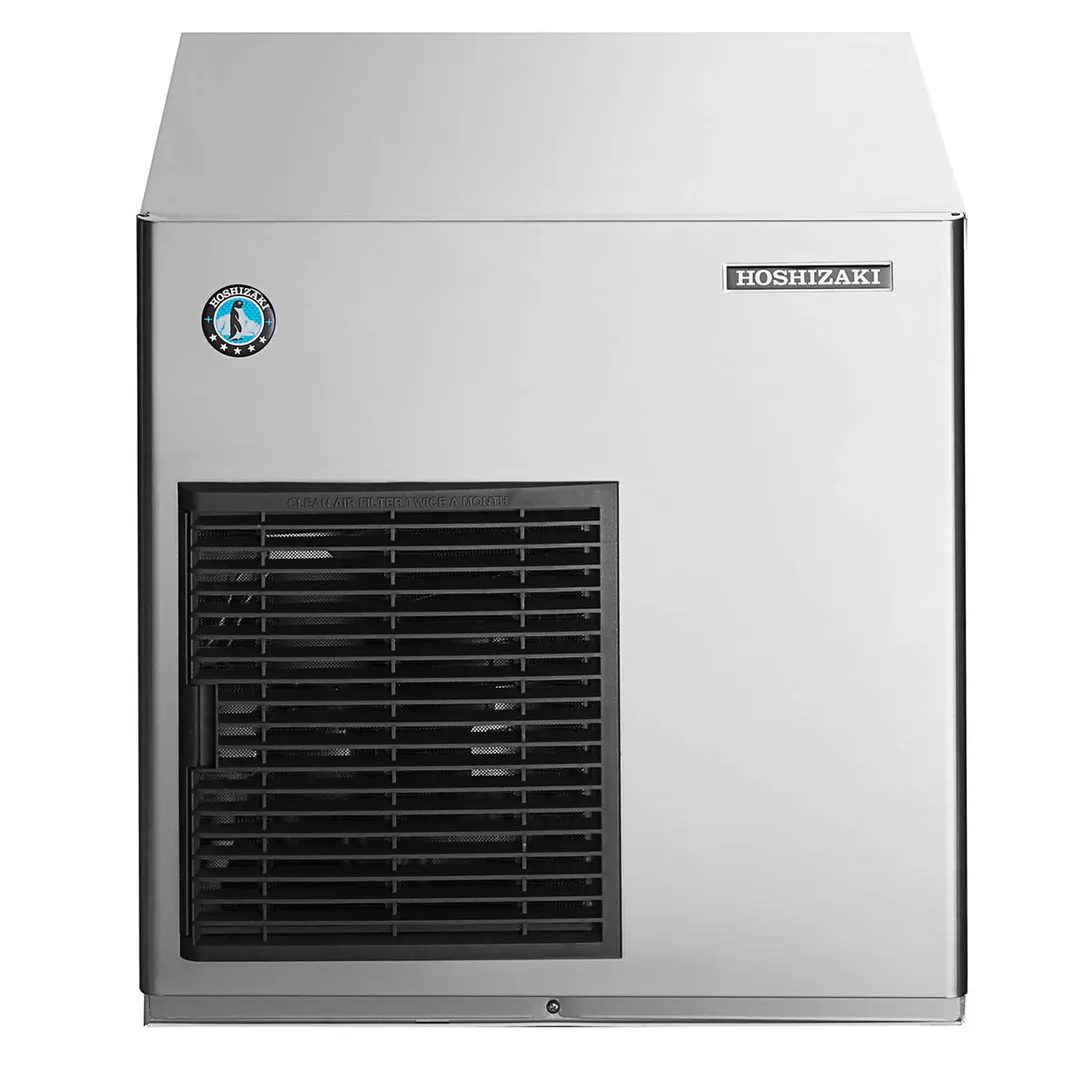

Hoshizaki F-450MAJ 22" Flake Ice Machine Head, Air Cooled, 492 lb/24 hr

Hoshizaki F-450MAJ 22" Flake Ice Machine Head

Hoshizaki F-450MAJ 22" Flake Ice Machine Head is a compact, durable, high-efficiency commercial ice machine that produces up to 492 lbs. (223.167 kg) of flaked ice per 24 hours. Flaked ice is ideal for cooling produce, seafood, and other delicate foods, as it is soft enough not to bruise or damage the items on display. Two Hoshizaki F-450MAJ ice makers can be mounted side by side on the same ice bin, allowing the operator to double production without increasing the footprint.

Hoshizaki commercial ice machine features Advanced CleanCycle24™, which empties the reservoir and evaporator every hour to remove sediments and ensure clean, safe ice production. Thus, the Hoshizaki F-450MAJ 22" Flake Ice Machine Head is ideal for restaurants, supermarkets, hotels, senior living centers, and grocery stores to preserve the freshness of their products while increasing their attractive appearance with clean ice.

Technical Specifications of Hoshizaki F-450MAJ 22" Flake Ice Machine Head

• Width: 22 in (55.8 cm)
• Depth: 27.375 in (69.532 cm)
• Height: 22 in (55.08 cm)
• Production Capacity: Up to 492 lbs. (223.167 Kg) per 24 hours
• Installation Type: Modular
• Ice Type: Flaked ice
• Condenser Type: Air-cooled
• Refrigerant: R-404A
• Energy Consumption: 4.94 kWh per 100 lb. (45.359 kg)
• Water Consumption: 12 gals (45.424 L) per 100 lb. (45.359 kg)
• Electrical Configuration: 115v/60/1-ph, 10.8 amps
• Certifications: NSF and UL
• Shipping Weight: 170 lb. (77.110 kg)

Required Operating Conditions for Hoshizaki F-450MAJ

The Hoshizaki F-450MAJ 22" Flake Ice Machine Head requires specific installation and ambient conditions for a consistently high performance:

• Clearance Requirements: There must be 6 in (15.24 cm) clearance on the rear and sides for proper air circulation and easier reach for parts. The unit requires 24” (69.96 cm) clearance at the top to allow auger removal.
• Away from Heat Sources: This ice machine must be positioned away from heat sources such as ovens, grills, or fryers.
• Ambient Temperature Range: 45°F to 100°F (7.22°C to 37.78°C)
• Water Temperature Range: 45°F to 90°F (7.22°C to 32.22°C)
• Water Pressure: 10 to 113 PSIG
• Voltage Range: 104V to 127V
• Plumbing Specifications: The water supply line requires a minimum of 1/4 in (0.635 cm) nominal ID copper water tubing. The drain line requires a minimum 3/4 in (1.905 cm) nominal ID hard pipe.

Key Features of Hoshizaki F-450MAJ 22" Flake Ice Machine Head

• High-capacity Ice Production: Hoshizaki F-450MAJ can produce up to 492 lbs. of flaked ice per day. You can further increase the production capacity by mounting two units side by side on the same ice bin to produce up to 984 lbs. (446.335 kg) of ice daily when needed.
• Space Saving Design: Featuring a compact 22 inches (55.88 cm) wide, this Hoshizaki ice machine is ideal for locations with space limitations. In addition, it is engineered to allow side-by-side installation on Hoshizaki B-700, B-800, and B-900 ice bins to double the production capacity just by covering a 44” (111.76 cm) floor area in your kitchen.
• Advanced CleanCycle24™ Design: To provide pure and clean ice, this ice maker runs a 2-second flush cycle every hour. This Advanced CleanCycle24 system eliminates sediments and impurities to ensure safe and clear flaked ice.
• Sturdy Construction: Hoshizaki F-450MAJ 22" Flake Ice Machine Head is designed to endure much longer in commercial settings. Hence, it features stainless steel exterior housing to withstand the impacts. Furthermore, the internal auger is made from stainless steel for maximum service life.
• Reliable Components: Hoshizaki F-450MAJ flaked ice machines are designed and manufactured for reliable operation. Hence, the evaporator and the refrigerant tubing are insulated with insulated foamed-in-place polyurethane. The motor and the gearbox are insulated and sealed against moisture for dependable use.
• Infrared Ice Bin Control: This commercial ice maker features infrared ice bin control to prevent overflow and improve cleaning and hygiene. The built-in sensors check the produced ice volume in the ice bin by sending infrared light beams to assess the returning beam and stop the ice production when the ice bin is full.
• Self-Contained Air-Cooled Condenser: Hoshizaki F-450MAJ 22" Flake Ice Machine Head has a built-in air-cooled condenser. So, you do not need to spend extra money on remote condensing units and coolant liquids, thereby lowering your expenses.
• Eco-Friendly Refrigerant: This ice maker uses eco-friendly R-404A refrigerant with zero ozone depletion potential.
• Enhanced Serviceability: The Hoshizaki F-450MAJ flaked ice machine is designed for easier maintenance with removable and cleanable air filters and a removed service panel.
• Flaked Ice: Hoshizaki F-450MAJ makes flaked-shaved ice, which measures around 1 inch (2.54 cm). This small, soft, chewable ice type is suitable for applications in restaurants, grocery stores, supermarkets, hospitals, and senior living centers.
• High Energy Efficiency: This ice machine head uses only 4.94 kWh per 100 lb. (45.359 kg) of ice, decreasing production expenses and maximizing profit.
• Certifications: Hoshizaki FD-650MAJ-C has NSF and UL certifications with its adherence to official regulations and guidelines.

Applications and Benefits of Hoshizaki F-450MAJ 22" Flake Ice Machine Head

Hoshizaki F-450MAJ 22" Flake Ice Machine Head presents high-volume flaked ice production with less energy consumption in a smaller footprint. Therefore, this unit is ideal for:

• Grocery stores and supermarkets to showcase seafood and produce without bruising them,
• Restaurants, hotels, and caterers to keep poultry, seafood, and other frozen treats safely inside insulated drawers or buffets (not suitable for dispensers),
• Senior living centers and bars to use soft and chewable ice in beverages and drinks.

What Type of Ice does the Hoshizaki F-450MAJ 22" Flake Ice Machine Head Produce?

Hoshizaki F-450MAJ 22" Flake Ice Maker Machine produces flaked or shaved ice. It has a 1-inch (2.54 cm) width and features irregular shapes. Flaked ice is a light ice type and has no sharp edges. Hence, it is perfect for buffets and display applications to preserve the freshness and texture of greens, produce, and seafood. Furthermore, flaked ice is soft and suitable for chewing, making it an appropriate option for restaurants, healthcare facilities, and senior living centers to serve elderly people.

Related/Complementary Accessories for Hoshizaki F-450MAJ 22" Flake Ice Machine Head

Hoshizaki helps you maintain optimal performance and pure and clear ice production with spare parts and additional accessories for Hoshizaki F-450MAJ:

• Hoshizaki Prefilter Cartridges: This ice maker has a 10” (25.4 cm) E-10 prefilter to eliminate large particles and sediments before the main water filter. This extends the water filter’s lifetime, reducing maintenance costs and increasing ice quality.
• Hoshizaki H9320-51 Water Filters: Hoshizaki F-450MAJ uses a single cartridge water filter to clean and purify the water supply for ice production. The filter eliminates up to 99.9% of disinfectant chlorine in the water, ensuring clean and safe flaked ice.
• Ice Storage Bins & Ice Dispensers: Compatible with Hoshizaki B-250, B-300, B-500, B-700, B-800, B-900 ice bins (Sold separately)

Why Choose Hoshizaki?

Hoshizaki is one of the industrial leaders in commercial ice machines and refrigeration products. It has almost 80 years of experience in the industry and serves more than 60 countries with high-quality commercial ice makers, refrigerators, and freezers. Hoshizaki commercial ice machines are widely preferred for their:

• High ice production volume: This unit offers a high production volume, which can be doubled by side-by-side mounting on the same ice bin.
• Reliable Warranty: 3 years parts and labor on the entire machine; 5 years parts and labor on the evaporator; 5 years parts on the compressor.
• Clean and Safe Ice: Advanced CleanCycle technology cleans the interior components every hour to eradicate sediments and particles.
• Certified for Safety and Sanitation: NSF and UL listed for commercial use.
• Chewable, Soft, and Light Ice: Chewable, light, soft flaked ice for displaying produce, seafood, and other gentle foods.
