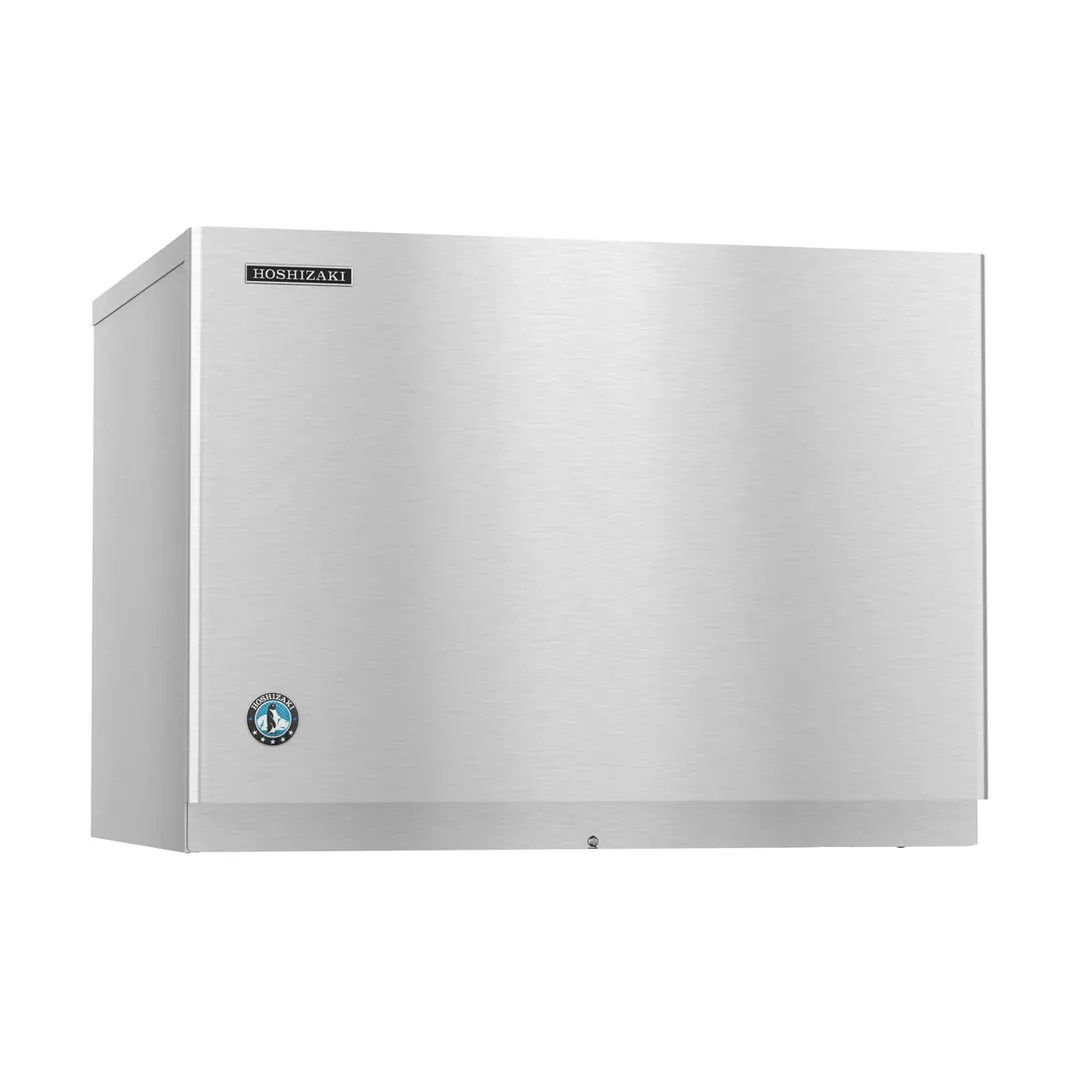

Hoshizaki Modular Crescent Cuber Air-Cooled
Features:
- Individual crescent cube
- Stainless steel evaporator
- Up to 487 lbs. of ice production per 24 hours
- 24” depth perfect for beverage dispensers
- Durable stainless steel exterior
- Protected by H-Guard Plus Antimicrobial Agent
- EverCheckTM alert system
- Removable air filters (air-cooled model only)
- Front air inlet panels available for side-by-side application (used with HS-5065 kit)
- R-404A Refrigerant
Operating Limits:
- Ambient Temp Range 45 - 100°F
- Water Temp Range 45 - 90°F
- Water Pressure 10 - 113 PSIG
- Voltage Range 104-127V
Service:
- Panels easily removed and all components accessible for service.
- Allow 6” (15 cm) clearance at rear, left side, and top and 12” (30 cm) clearance at right side for air-cooled model. Allow 6” (15 cm) clearance at rear, sides, and top for water-cooled model.
Plumbing:
- Icemaker Water Supply Line: Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent
- Icemaker Drain Line: Minimum 3/4” Nominal ID Hard Pipe or Equivalent Water-Cooled Model (Lines Must Be Independent of Icemaker)
- Condenser Water Supply Line: Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent
- Condenser Drain/Return Line: Minimum 1/4” Nominal ID Hard Pipe (open drain system) or Copper Water Tubing (closed loop system) or Equivalent
From The Manufacturer
Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 440 lb/24 hours at 70°/50° (400 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115-120v/60/1-ph, 10.0 amps, NSF, UL
