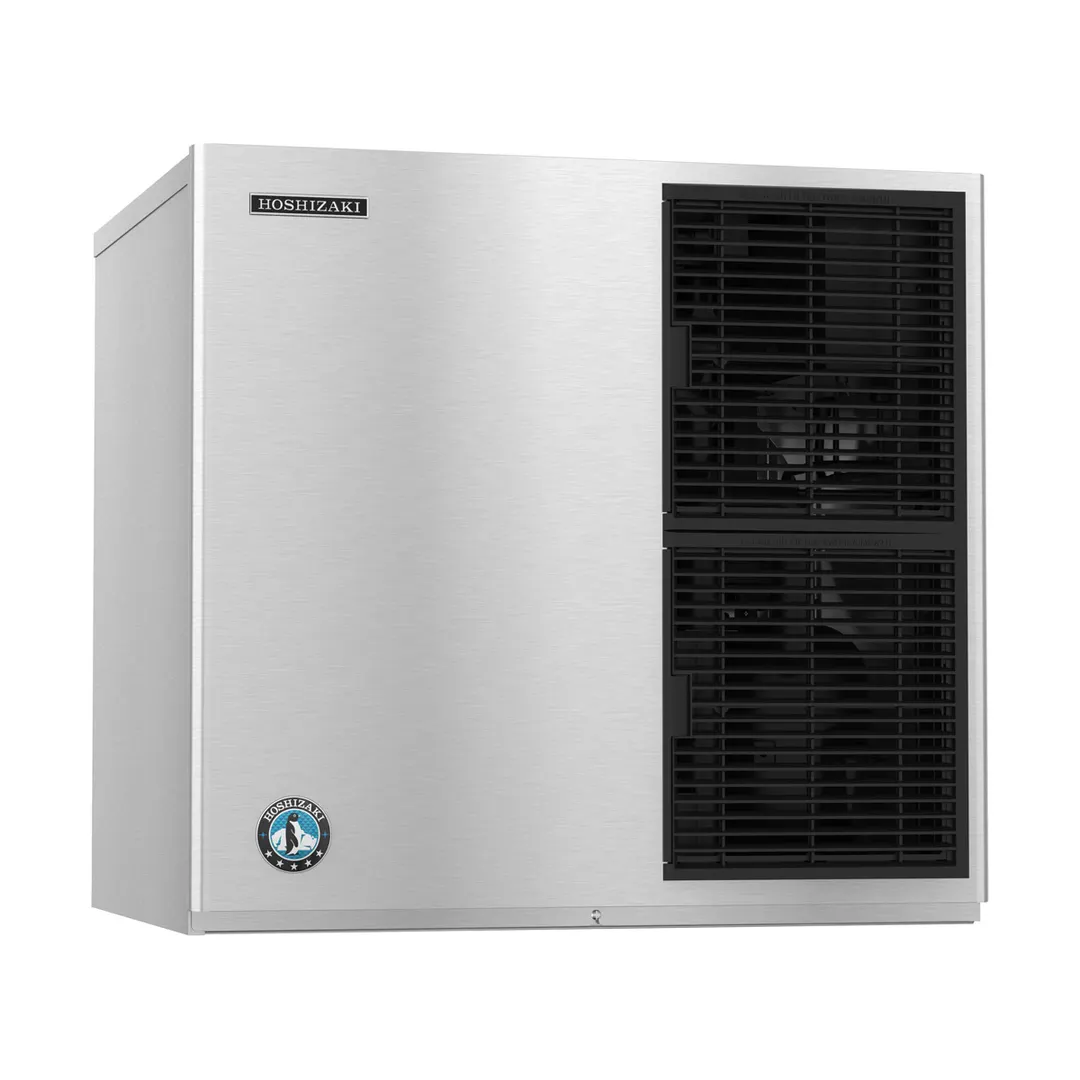

Hoshizaki Modular Crescent Cuber Air-Cooled
Features:
- Individual crescent cube
- Stainless steel evaporator
- CycleSaverTM design
- Up to 967 lbs. of ice production per 24 hours
- Durable stainless steel exterior
- Protected by H-Guard Plus Antimicrobial Agent
- EverCheckTM alert system
- Removable air filters
- R-404A Refrigerant
Operating Limits:
- Ambient Temp Range 45 - 100°F
- Water Temp Range 45 - 90°F
- Water Pressure 10 - 113 PSIG
- Voltage Range 187 - 253V
Service:
- Panels easily removed and all components accessible for service.
- Allow 6” (15cm) clearance at rear, sides, and top for proper air circulation and ease of maintenance/ service.
Plumbing:
- Icemaker Water Supply Line: Min. 1/4” Nominal ID Copper Water Tubing or Equivalent
- Icemaker Drain Line: Min. 3/4” Nominal ID Hard Pipe or Equivalent Water-Cooled Model (Lines Must Be Independent of Icemaker)
- Condenser Water Supply Line: Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent
- Condenser Drain/Return Line: Minimum 1/4” Nominal ID Hard Pipe (open drain system) or Copper Water Tubing (closed loop system) or Equivalent
From The Manufacturer
Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 777 lb/24 hours at 70°/50° (665 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 9.9 amps, NSF, UL
