The Manitowoc RNF0320A Nugget Ice Machines

Why Use Manitowoc Nugget Ice Machines?

Great things happen when you combine the popularity of nugget ice with the quality and reliability of Manitowoc. Manitowoc’s nugget ice provides a soft, chewable texture while maintaining maximum cooling ability. Manitowoc offers its bite-sized nugget ice in the RNF Series ice machines with up to 1130 lbs. (513 kg) of daily ice production.

The Manitowoc RNF0320A Nugget Ice Machines, Chef's Deal

High Performance

Nugget ice provides a high quality, soft, chewable texture while still providing maximum cooling effect. Small nuggets of ice make these ice machines perfect for drink dispensing, ice packs, blended beverages and ice/water needs.

Ice Shape

Nugget ice consists of small pieces ranging from 3/8" to 1/2" in width and length on average. Offers a 85% ice to water ratio with a soft, chewable texture while still providing maximum cooling effect and great dispensibilty.

Manitowoc RNF0320A Standard Features

Bite sized nugget with 85% ice content offers one of the best ice to water ratios for maximum cooling and minimal drink dilution
Up to 308 lbs (140 kg) of daily ice production
Perfect for carbonated beverages, blended smoothies and healthcare/physical therapy.
Can be paired with any 30" Multiplex beverage dispenser for an unbeatable soft-drink experience
High load maintenance free bearings for enhanced reliability
Evaporator is designed for maximum quality and operating life
3-years parts and labor
Compressor parts for 5 years and labor for 3 years

From The Manufacturer

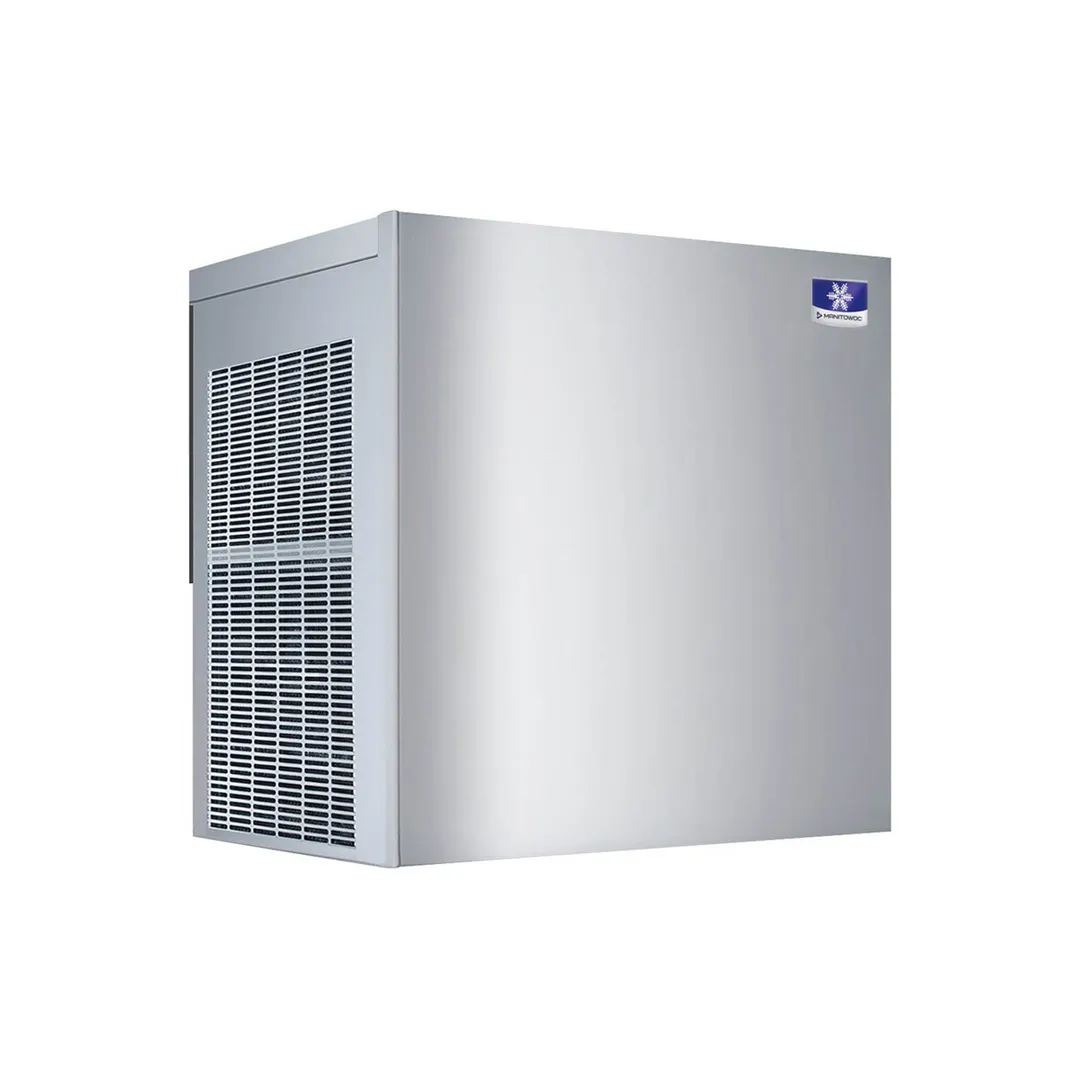

Ice Maker, nugget-style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 308 lb/24 hours at 70°/50° (236 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel finish, 1/2 HP, R-290A, ETL-Sanitation, cETLus

Manufacturer	Manitowoc
Model Number	RNP0320A
Weight	174 lbs
Width	22″
Depth	26.63″
Height	26″
Compatible With	ice bin or dispenser
Condenser Type	air-cooled
Ice Type	nugget ice
Special Features	gravity drain
Voltage	115
Refrigerant Type	R-290
Phase	1
Production per 24 hr (Lbs)	308

	Manitowoc RNP0320A 22" Nugget Ice Machine Head, Air Cooled, 308 lb/24 hr Free Shipping	Manitowoc RNP0620A 22" Nugget Ice Machine Head, Air Cooled, 591 lb/24 hr Free Shipping	Manitowoc RNP0320A/D970/K00473 Air Cooled Nugget 308 lb Ice Machine with 882 lb Bin	Manitowoc RNP0320A/D420 Air Cooled Nugget 308 lb Ice Machine with Bin, 383 lb Storage	Manitowoc RFP0320A 22" Flake Ice Machine Head, Air Cooled, 370 lb/24 hr Free Shipping	Manitowoc UNP0300A 29" Air Cooled Nugget 330 lb Undercounter Ice Machine with 50 lb Bin Free Shipping	Scotsman UN324AX-1 Nugget Ice Maker 24" Width, 80 lb Bin, Cooled, Stainless, R290, 115V, 340 lb/24h Free Shipping	Hoshizaki DCM-300BAK Nugget Ice & Water Dispenser, Countertop, 300‑500 lb/24 hr, 40 lb Bin, R290 Free Shipping	Hoshizaki DCM-300BAK-OS Countertop Nugget Ice & Water Dispenser, 40 lb Bin, Air-Cooled, R290, 115V Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
Production per 24 hr (Lbs)	Production per 24 hr (Lbs)308	Production per 24 hr (Lbs)591	Production per 24 hr (Lbs)308	Production per 24 hr (Lbs)308	Production per 24 hr (Lbs)370	Production per 24 hr (Lbs)330	Production per 24 hr (Lbs)-	Production per 24 hr (Lbs)-	Production per 24 hr (Lbs)-
Bin storage capacity (Lbs)	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)882	Bin storage capacity (Lbs)383	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)50	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)-
Voltage	Voltage115	Voltage115	Voltage115	Voltage115	Voltage115	Voltage115	Voltage-	Voltage-	Voltage-
Phase	Phase1	Phase1	Phase1	Phase1	Phase1	Phase1	Phase-	Phase-	Phase-
Special Features	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Features-	Special Features-	Special Features-
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)22	WIDTH (SIDE - SIDE)22	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)22	WIDTH (SIDE - SIDE)29.06	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)26	WIDTH (SIDE - SIDE)26
Manufacturer	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerScotsman	ManufacturerHoshizaki	ManufacturerHoshizaki
Finish	Finish-	Finish-	Finish-	Finish-	Finish-	Finishstainless steel	Finishstainless steel	Finish-	Finish-
Production per 24 hr	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr501 - 700 lb = 228 - 317 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg
Bin Storage Capacity	Bin Storage Capacity-	Bin Storage Capacity-	Bin Storage Capacity860 - 1255 lb = 390 - 570 kg	Bin Storage Capacity201 - 455 lb = 92 - 206 kg	Bin Storage Capacity-	Bin Storage Capacity50 lb = 22 kg (and under)	Bin Storage Capacity51 - 100 Lb = 23 - 45 Kg	Bin Storage Capacity50 lb = 22 kg (and under)	Bin Storage Capacity50 lb = 22 kg (and under)
Ice Type	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typeflake ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice
Condenser Type	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled
Refrigerant Type	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290
Compatible With	Compatible Withice bin or dispenser	Compatible Withice bin or dispenser	Compatible With-	Compatible With-	Compatible Withice storage bin	Compatible With-	Compatible With-	Compatible With-	Compatible With-
Certifications	CertificationsNo	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	CertificationsAHRI, cULus, ENERGY STAR, NSF	CertificationsAHRI, NSF, UL	CertificationsAHRI, NSF, UL
Refrigeration	RefrigerationNo	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-	Refrigerationself-contained refrigeration	Refrigeration-	Refrigeration-
Placement	Placement-	Placement-	Placement-	Placement-	Placement-	Placement-	Placement-	Placementcountertop	Placementcountertop
Dispenses	Dispenses-	Dispenses-	Dispenses-	Dispenses-	Dispenses-	Dispenses-	Dispenses-	DispensesIce & Water	DispensesIce & Water

Manufacturer	Manitowoc
Model Number	RNP0320A
Weight	174 lbs
Width	22″
Depth	26.63″
Height	26″
Compatible With	ice bin or dispenser
Condenser Type	air-cooled
Ice Type	nugget ice
Special Features	gravity drain
Voltage	115
Refrigerant Type	R-290
Phase	1
Production per 24 hr (Lbs)	308

	Manitowoc RNP0320A 22" Nugget Ice Machine Head, Air Cooled, 308 lb/24 hr Free Shipping	Manitowoc RNP0620A 22" Nugget Ice Machine Head, Air Cooled, 591 lb/24 hr Free Shipping	Manitowoc RNP0320A/D970/K00473 Air Cooled Nugget 308 lb Ice Machine with 882 lb Bin	Manitowoc RNP0320A/D420 Air Cooled Nugget 308 lb Ice Machine with Bin, 383 lb Storage	Manitowoc RFP0320A 22" Flake Ice Machine Head, Air Cooled, 370 lb/24 hr Free Shipping	Manitowoc UNP0300A 29" Air Cooled Nugget 330 lb Undercounter Ice Machine with 50 lb Bin Free Shipping	Scotsman UN324AX-1 Nugget Ice Maker 24" Width, 80 lb Bin, Cooled, Stainless, R290, 115V, 340 lb/24h Free Shipping	Hoshizaki DCM-300BAK Nugget Ice & Water Dispenser, Countertop, 300‑500 lb/24 hr, 40 lb Bin, R290 Free Shipping	Hoshizaki DCM-300BAK-OS Countertop Nugget Ice & Water Dispenser, 40 lb Bin, Air-Cooled, R290, 115V Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
Production per 24 hr (Lbs)	Production per 24 hr (Lbs)308	Production per 24 hr (Lbs)591	Production per 24 hr (Lbs)308	Production per 24 hr (Lbs)308	Production per 24 hr (Lbs)370	Production per 24 hr (Lbs)330	Production per 24 hr (Lbs)-	Production per 24 hr (Lbs)-	Production per 24 hr (Lbs)-
Bin storage capacity (Lbs)	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)882	Bin storage capacity (Lbs)383	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)50	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)-	Bin storage capacity (Lbs)-
Voltage	Voltage115	Voltage115	Voltage115	Voltage115	Voltage115	Voltage115	Voltage-	Voltage-	Voltage-
Phase	Phase1	Phase1	Phase1	Phase1	Phase1	Phase1	Phase-	Phase-	Phase-
Special Features	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Features-	Special Features-	Special Features-
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)22	WIDTH (SIDE - SIDE)22	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)22	WIDTH (SIDE - SIDE)29.06	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)26	WIDTH (SIDE - SIDE)26
Manufacturer	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerManitowoc	ManufacturerScotsman	ManufacturerHoshizaki	ManufacturerHoshizaki
Finish	Finish-	Finish-	Finish-	Finish-	Finish-	Finishstainless steel	Finishstainless steel	Finish-	Finish-
Production per 24 hr	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr501 - 700 lb = 228 - 317 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg	Production per 24 hr300 - 500 lb = 136 - 227 kg
Bin Storage Capacity	Bin Storage Capacity-	Bin Storage Capacity-	Bin Storage Capacity860 - 1255 lb = 390 - 570 kg	Bin Storage Capacity201 - 455 lb = 92 - 206 kg	Bin Storage Capacity-	Bin Storage Capacity50 lb = 22 kg (and under)	Bin Storage Capacity51 - 100 Lb = 23 - 45 Kg	Bin Storage Capacity50 lb = 22 kg (and under)	Bin Storage Capacity50 lb = 22 kg (and under)
Ice Type	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typeflake ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice	Ice Typenugget ice
Condenser Type	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled
Refrigerant Type	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290	Refrigerant TypeR-290
Compatible With	Compatible Withice bin or dispenser	Compatible Withice bin or dispenser	Compatible With-	Compatible With-	Compatible Withice storage bin	Compatible With-	Compatible With-	Compatible With-	Compatible With-
Certifications	CertificationsNo	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	CertificationsAHRI, cULus, ENERGY STAR, NSF	CertificationsAHRI, NSF, UL	CertificationsAHRI, NSF, UL
Refrigeration	RefrigerationNo	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-	Refrigerationself-contained refrigeration	Refrigeration-	Refrigeration-
Placement	Placement-	Placement-	Placement-	Placement-	Placement-	Placement-	Placement-	Placementcountertop	Placementcountertop
Dispenses	Dispenses-	Dispenses-	Dispenses-	Dispenses-	Dispenses-	Dispenses-	Dispenses-	DispensesIce & Water	DispensesIce & Water

Manitowoc RNP0320A 22" Nugget Ice Machine Head, Air Cooled, 308 lb/24 hr
