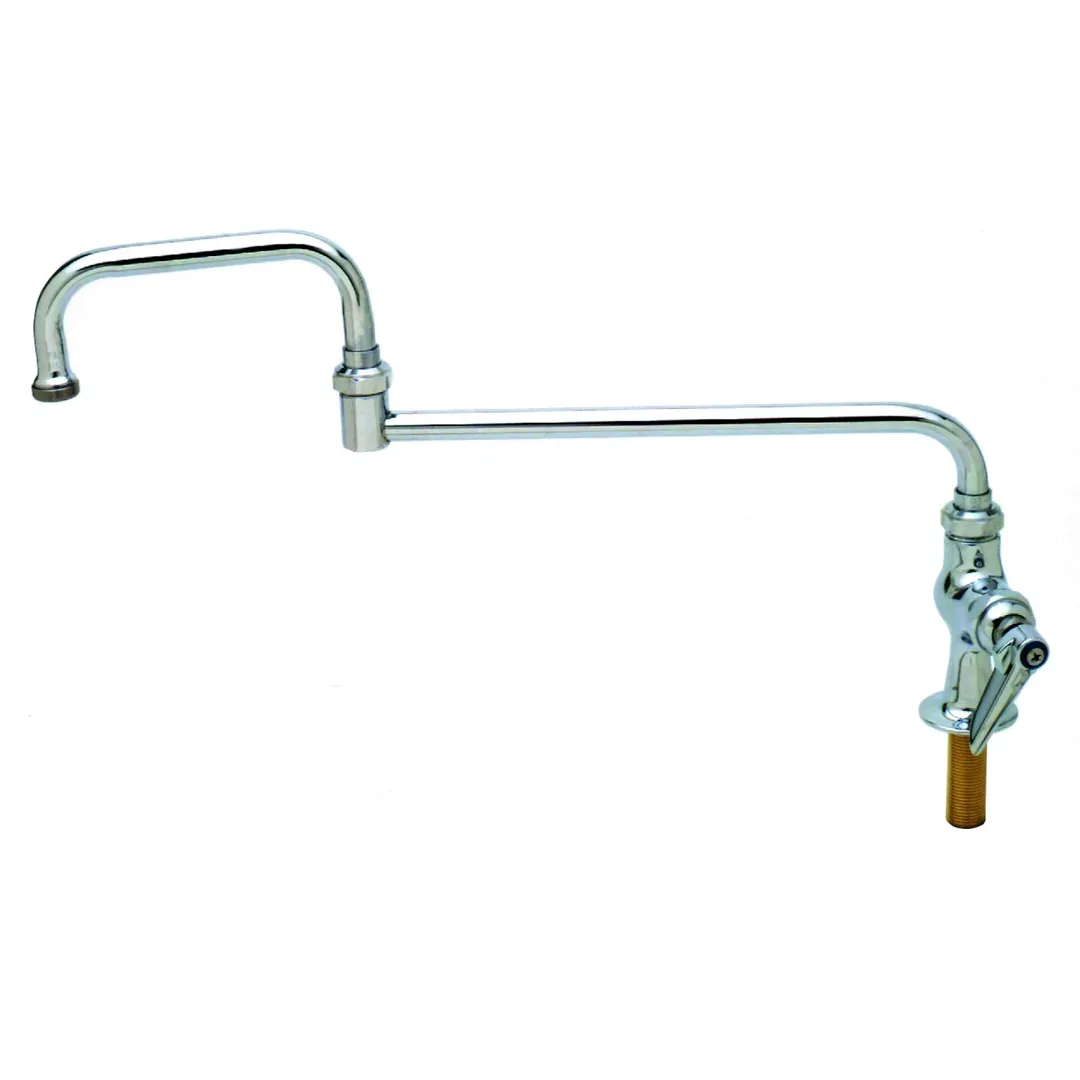

T&S Brass B-0255 Single Pantry Faucet
General Info
The B-0255, Single hole single temperature deck mount faucet with polished chrome plated brass body, 18" double-joint nozzle with stream regulator outlet, compression cartridge with spring check, lever handle and 1/2" NPSM maleinlet.
T&S Brass B-0255 Features
- Single hole single temperature deck mount faucet w/ polished chrome plated brass body
- 18” double joint swing nozzle
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPSM male inlet
- Tailpiece and nut to provide 1/4” NPT male connection
- Material: Polished chrome plated brass body chrome plated tubular spout & chrome plated metal handles
T&S Brass B-0255 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :5.59 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Single Pantry Faucet, deck mount, 18" long extended double joint swing nozzle, shank with 1/2" NPS thread, 1/4" IPS union type tailpiece, lever handle, "C" (or "H"), quarter-turn Eterna cartridges, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
