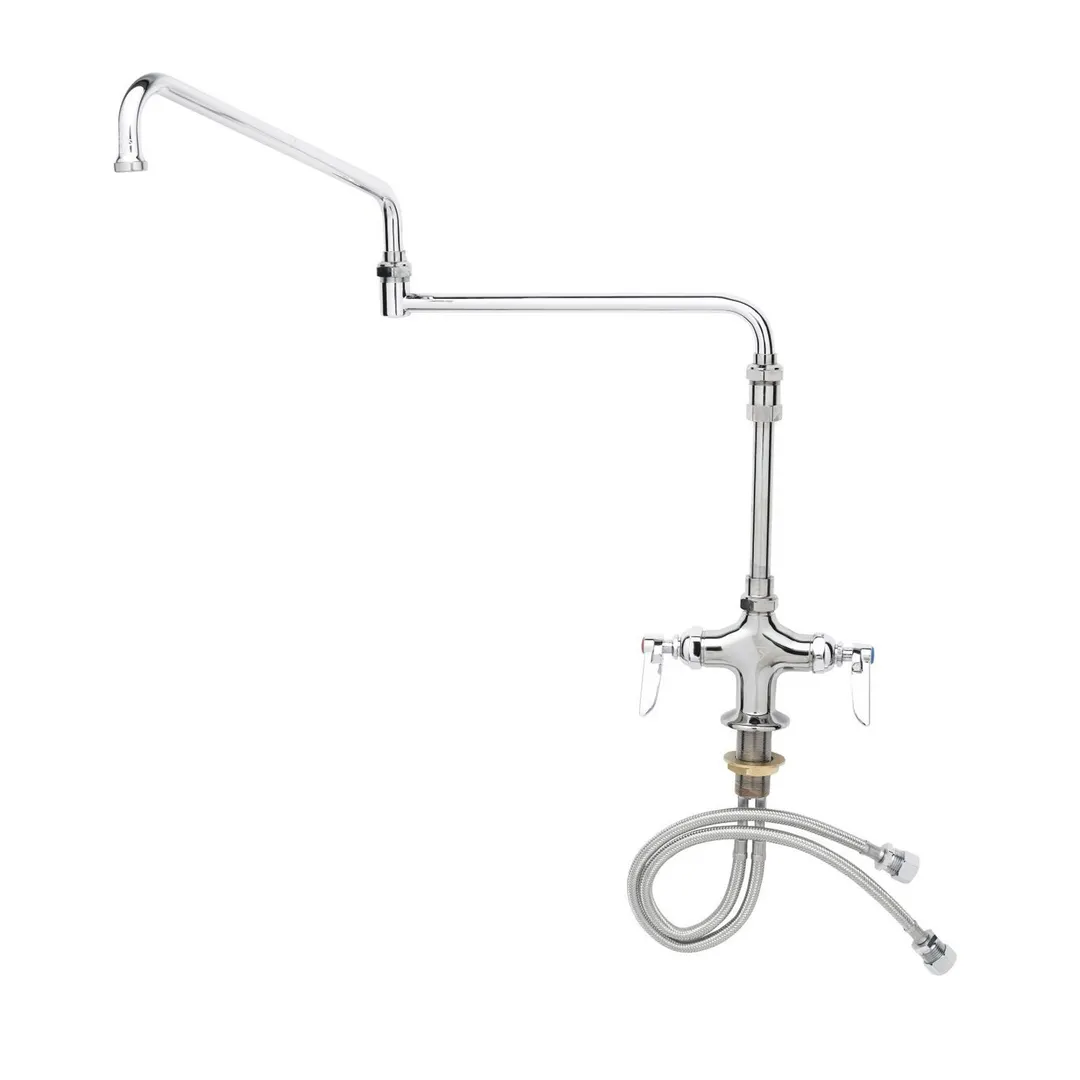

T&S Brass B-0268-01 Double Base Faucet
General Info
The B-0268-01, Single hole deck mount mixing faucet with polished chrome plated brass body, 18" double joint swing nozzle with stream regulator outlet, compression cartridges with spring checks, lever handles, 4 5/8" swivel extension and 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" O.D. compression connections.
T&S Brass B-0268-01 Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 18” double joint swing nozzle with 6” front and 12" back nozzles
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring 4-Arm checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 4 5/8" straight swivel extension
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” O.D. compression connections
- Material: Polished chrome plated brass body & tubular spout and polished chrome metal handles
T&S Brass B-0268-01 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 8.67 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, single hole base, 18" double joint swing nozzle with 4-5/8" extension, 1/2" NPT male threads, quarter-turn Eterna cartridges, low lead, ADA Compliant
