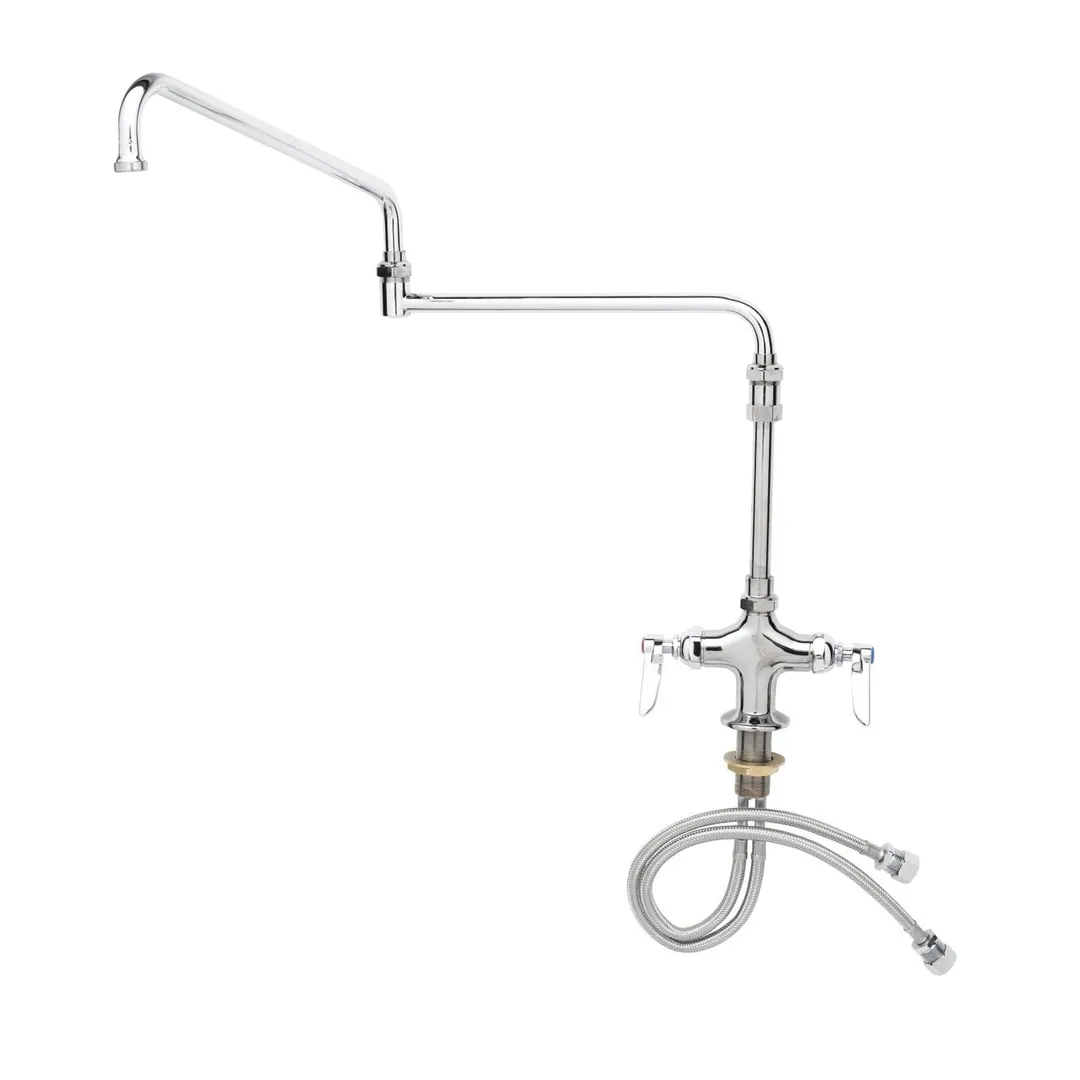

T&S Brass B-0268-04 Double Pantry Faucet
General Info
The B-0268-04, Single hole deck mount mixing faucet with polished chrome plated brass body, 24" double joint swing nozzle with stream regulator outlet, compression cartridges with spring checks, lever handles, 7 5/8" swivel extension and 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" O.D. compression connections.
T&S Brass B-0268-04 Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 24” double joint swing nozzle with 12” front and back nozzles
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring 4-Arm checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 7 5/8" straight swivel extension
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” O.D. compression connections
- Material: Polished chrome plated brass body & tubular spout and polished chrome metal handles
T&S Brass B-0268-04 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 8.67 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, single hole base, 24" double joint swing nozzle, extension, quarter-turn Eterna cartridges, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
