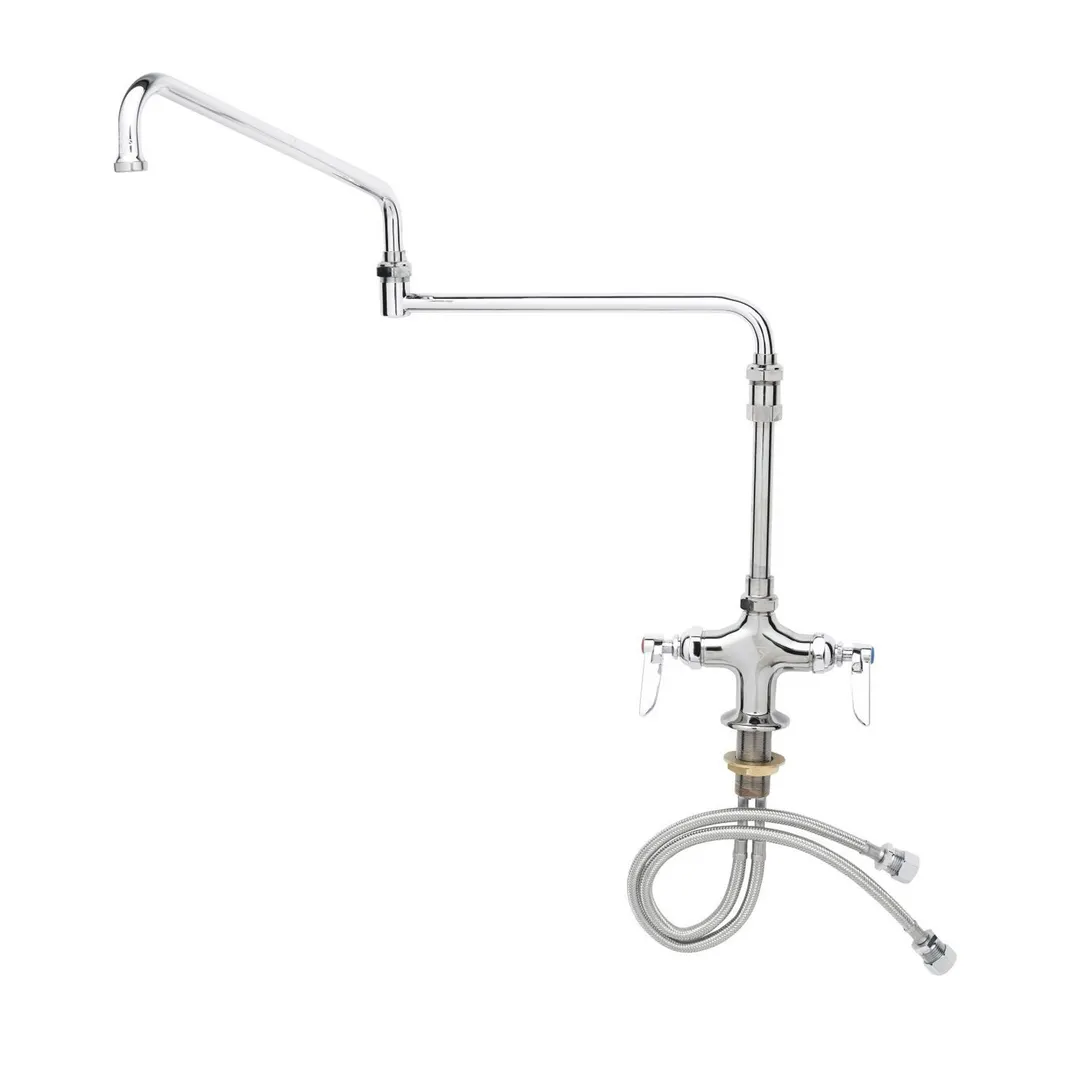

T&S Brass B-0268-02 Double Base Faucet
General Info
The B-0268-02, Single hole deck mount mixing faucet with polished chrome plated brass body, 18" double joint swing nozzle with stream regulator outlet, compression cartridges with spring checks, lever handles, 7 5/8" swivel extension and 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" O.D. compression connections.
T&S Brass B-0268-02 Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 18” double joint swing nozzle with 6” front and 12" back nozzles
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring 4-Arm checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 7 5/8" straight swivel extension
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” O.D. compression connections
- Material: Polished chrome plated brass body & tubular spout and polished chrome metal handles
T&S Brass B-0268-02 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 8.67 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Double Pantry Faucet, deck mount, 6" swing nozzle, 18" double jointed swing nozzle 7-5/8" extension, 4" spreader, lever handle, stream regulator tip, Eterna cartridge, single hole base, low lead, 1/2" NPT, ADA Compliant, NSF
