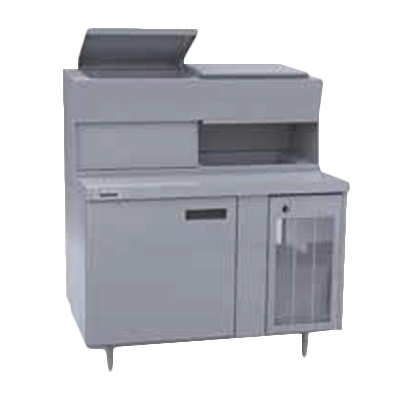

The Delfield F18PD48P Self-Contained Refrigerated Dual Rail Prep Table with Flush Mount LiquiTec Raised Rails
Why Use Delfield's Pizza Prep Table?
Advanced Benefits - Greater Results.
Maximizes kitchen spaces for efficient production. Flush mounted pan design allows for better operator ergonomics and improved visability and reach to all the products with superior cooling technology!
Add To The Menu
Add to the menu without crowding the kitchen. Add toppings and products to the operation in the same space and in the same overall footprint.
Double the Production, Same Footprint
Dual rail prep tables have a second, elevated rail to improve production without adding to the footprint. Add to the menu without crowding the kitchen. Add toppings and products to the operation in the same space.
Consistent Temperatures
Consistent temperatures are maintained below 41 ̊ F. Keep food fresh and appealing, enhancing your revenue opportunities and minimizing waste.
Evaporator Coils
Mullion style evaporator coils mount between door openings to allow full depth storage and improved air circulation throughout the cabinet.
Vad is Patented LiquiTec?
Patented LiquiTec uses eutectic fluid permanently sealed in a jacket surrounding the pan opening as the cooling medium. Refrigerant lines cool the eutectic fluid, which in turn, cools the pan. This fluid remains a liquid at extremely cold temperatures, providing consistent, even super cooling, keeping food fresh and safe. Eutectic fluid surrounds the sides and bottom of the pan providing 100% more surface contact than a traditional mechanically cooled pan. Safe Food – LiquiTec performance meets strict NSF7 standards. Food can be held in open pans at less than 41 ̊ F for 4 hours. This helps you maintain safe food handling practices in your operation.
Full Extension Plus Drawer System
Delfield’s full extension plus drawer system literally surpasses every drawer on the market today. In fact they extend a full 15% further than other manufactures.
Delfield F18PD48P Standart Features
- High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam throughout unit
- F18PD48P: 48" Dual Rail Prep Table with (4) 12"X20" pan openings
- Upper and lower rails are mechanically cooled utilizing LiquiTec® technology with die stamped 12”X20” openings
- Top is constructed of 16-gauge stainless steel
- Pans and adapter bars by others
- Flush mount NSF-7 certified pans
- Dart style quick change gaskets
- Stainless steel removable hinged covers
- On/off switch is located behind the louver
- 1.50" diameter hole in louver for easy access to rail on/off switch
- 8' long electrical cord
- Environmentally friendly HFC-404A refrigerant
- Electronic Controls
- One year parts and labor standard warranty
Delfield F18PD48P Options & Accessories
- Stainless steel back
- Stainless steel ends
- Laminate facing (full front), end and/ or back
- Tray racks
- Variable cutting board types and sizes
- Fixed and adjustable height casters
- Cheese grates with removable catch pans
- 27" wide refrigerated drawers (2) high, holds 6” deep pans
- Door/drawer locks
- Celsius readout for electronic control
- Adapter bars and pans
- 220V/50 cycle electrical system*
- Additional shelf
- Inclusion of these options will alter the electrical specifications of unit
- Remote refrigeration (contact factory)
- Celsius readout for electronic control
Delfield F18PD48P Specification
- Exterior Top: Constructed of one-piece 16-gauge stainless steel, with integral 2.12" (5.4cm) high square nosing at the front. Top has two mechanically cooled LiquiTec® refrigerated raised rails at the rear with openings to accommodate pans (provided by others). Rail interiors are 22-gauge stainless steel. Raised rail openings have 18-gauge stainless steel hinged removable lids. Unit is equipped with separate expansion valve and on/off switch for refrigerated rails. Temperature in top openings maintains 33°F (1°C) to 41°F (5°C) with pans flush mounted at 86°F (29.7˚C) ambient room temperature, meeting NSF 7 requirements.
- Exterior Back, Bottom and Ends: Unfinished galvanized steel back, bottom and exterior ends.
- Base Interior: Stainless steel back and bottom. Base interior sides and door frames are thermoformed ABS plastic. Each interior door section has (1) 25" (63.5cm) deep removable epoxy coated wire shelf. Base is insulated with 2" (5.1cm) high density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) foamed in place polyurethane. End of base has a machine compartment with condensing units installed.
- Refrigeration System: HFC-404A refrigerant. Cabinet has (1) blower coil assembly with expansion valve on 48” and 72” models. Refrigerated base maintains temperature of 36°F (2°C) to 40°F (4°C). On/off switches for rail and base are located behind the louvered panel. A 1.50” diameter hole is on the louver for easy access to rail on/off switch. Electronic control for base reads air temperature. Electronic control for rail displays temperature for set point purposes only. Display does not reflect air or product temps in unit.
- Legs: Equipment is mounted on 6" (15cm) legs.
- Electrical Connections: 115 volt, 60 Hertz, single phase. Unit is wired with 3-wire, grounded, maximum 8' (2.4m) cord and plug.
- Door(s): 22-gauge stainless steel exterior front, with a thermoformed ABS plastic interior liner.
