T&S Brass B-0592-CR Pot Filler
General Info

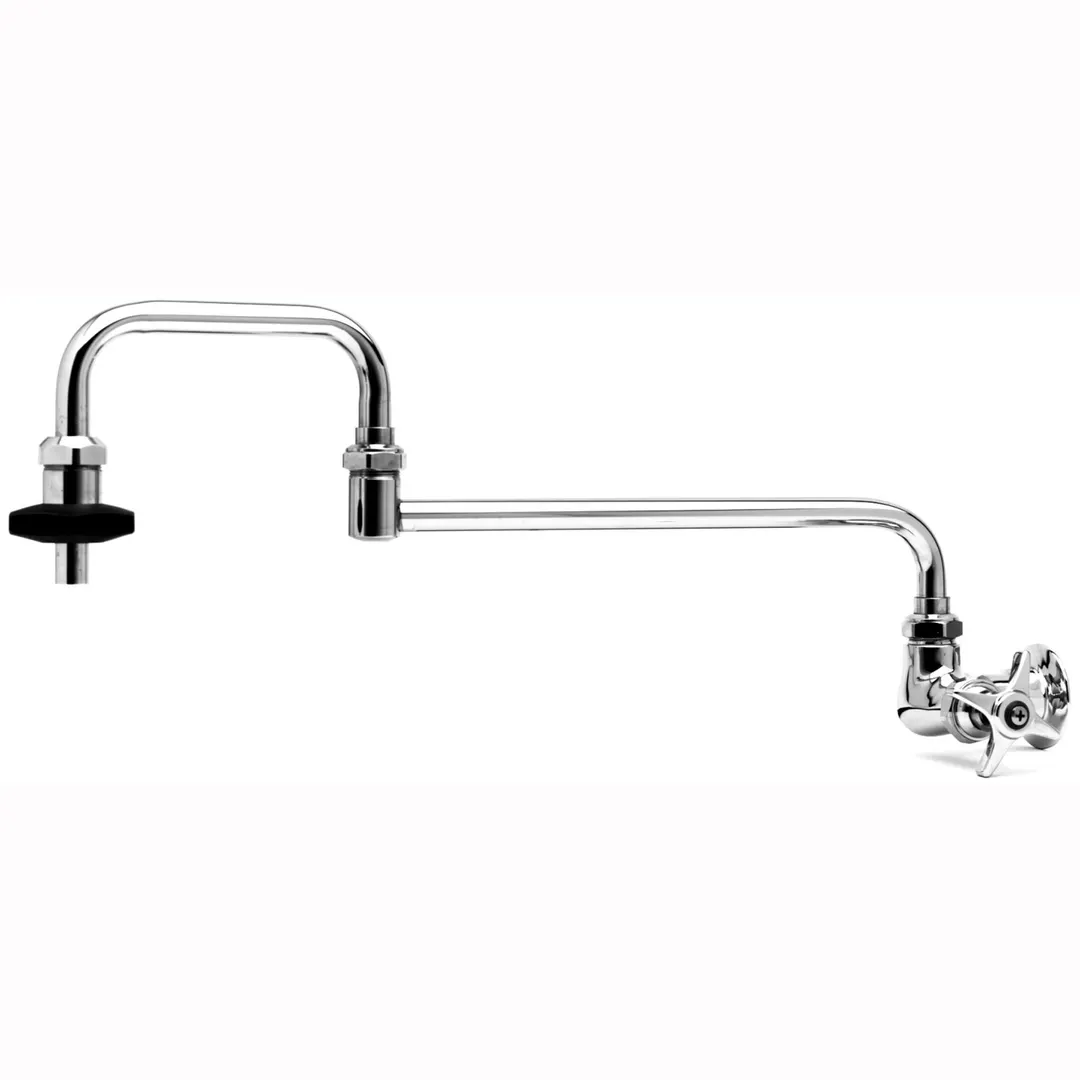

The B-0592-CR, Wall mount pot filler with chrome plated brass body, single control, 18" double joint swing nozzle, on-off volume control outlet with insulated grip, ceramic cartridge with check vlave, 4-arm handle and 1/2" NPT female inlet.
T&S Brass B-0592-CR Features
- Wall mount, single control pot filler
- 18" double joint swing nozzle
- Lock washer provided for rigid application
- On-off volume control outlet with insulated grip
- Quarter-turn Eterna compression cartridge w/ spring check
- 4-arm handle w/ blue index
- 1/2” NPT female inlet with 2” wall flange
- Material: Polished chrome plated brass body, tubular spouts, chrome plated metal handle
T&S Brass B-0592-CR Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :4.02 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pot & Kettle Filler Faucet, wall mount, single control, 18" double-jointed nozzle, heat-resistant 4-arm handle, ceramic cartridge, insulated on/off control, low lead, 1/2" NPT, NSF
