T&S Brass B-2312 Pot Filler With Quick Disconnect
General Info

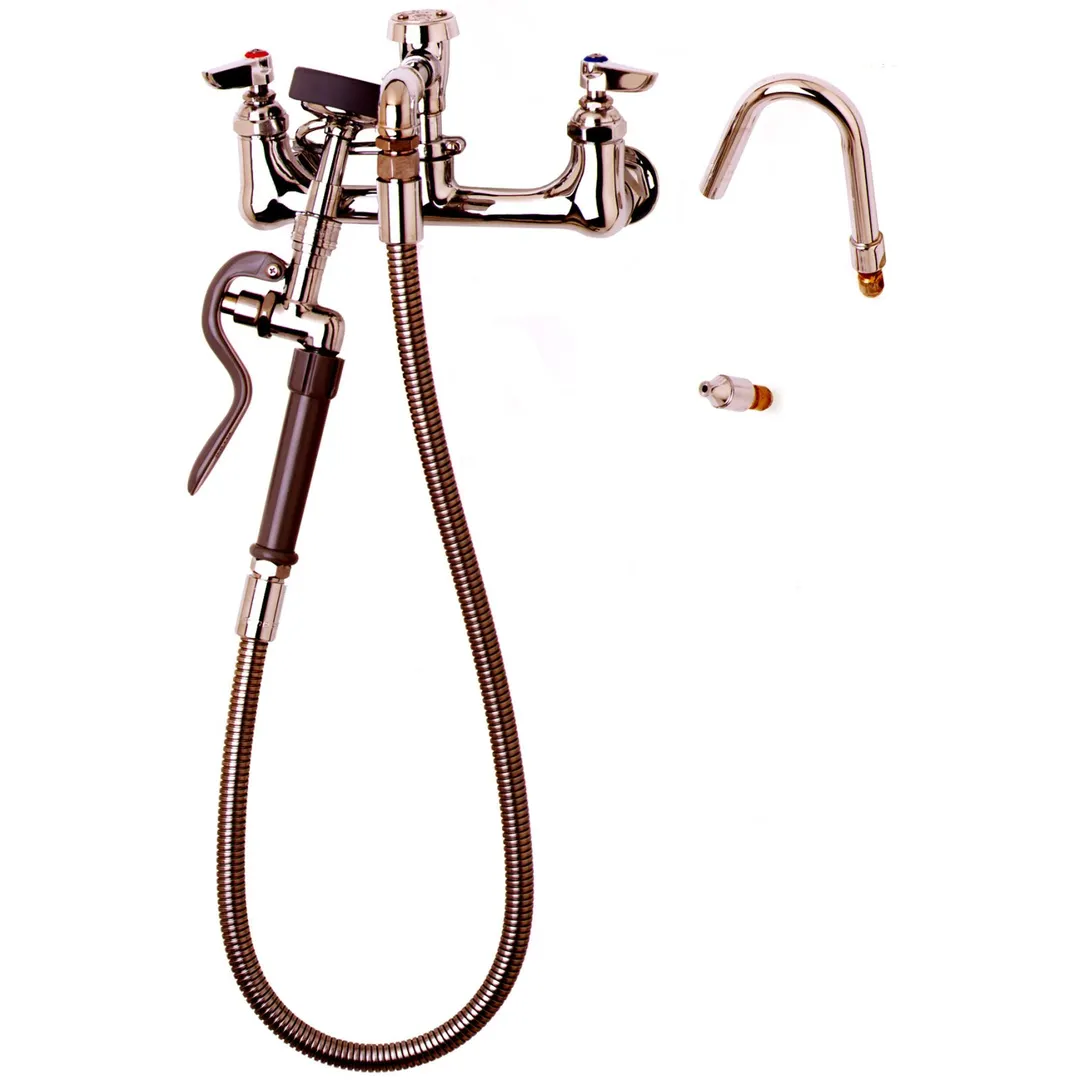

8" wall mount mixing faucet with polished chrome plated brass body, 44" flexible stainless steel hose with heat resistant handle, atmospheric vacuum breaker, spray valve with quick disconnect spray head, quick disconnect jet spray and quick disconnect hook nozzle, compression cartridges with spring checks, lever handles and 1/2" NPT female inlets.
T&S Brass B-2312 Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- 3/8" NPT atmospheric vacuum breaker
- 44” flexible stainless steel hose w/ heat resistant blue handle and hold down ring
- Spray valve with quick disconnect socket
- Quick disconnect shower spray, jet spray and hook nozzle spray accessories spray heads
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body and spray valve body, chrome plated vacuum breaker, chrome plated metal handles and stainless steel hose
T&S Brass B-2312 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Shower Spray: 3.93 GPM [14.88 L/min] @ 60 psi [4.14 bar]
- Fan Jet Spray: 3.25 GPM [12.30 L/min] @ 60 psi [4.14 bar]
- Hook Nozzle: 2.71 GPM [10.26 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Pot Filler Faucet, wall mount mixing faucet with 8" adjustable centers, quarter-turn Eterna cartridges with spring checks, lever handles with color-coded indexes, atmospheric vacuum breaker (B-0968), 44" flexible stainless steel hose with heat-resistant blue handle & hold down ring & quick disconnect, finger hook, includes: quick disconnect spray valve (B-1421), quick disconnect jet spray (B-1422) & quick disconnect hook nozzle (B-1424) chrome-plated brass faucet body, 1/2" NPT female inlets, cCSAus
