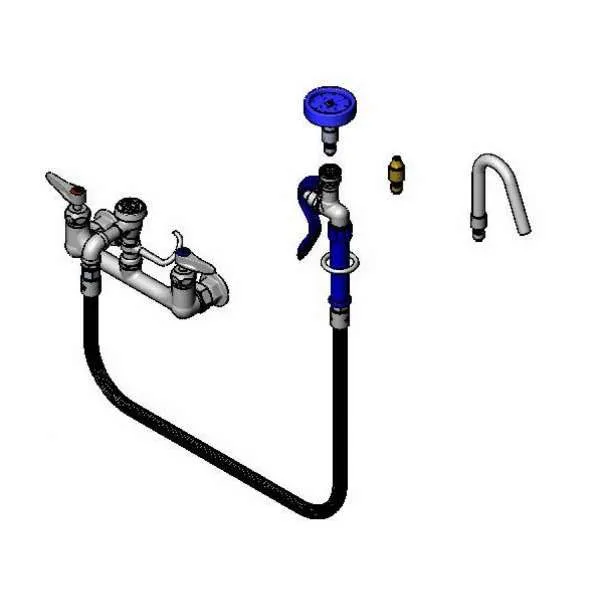

T&S Brass B-2312-CR Pot Filler With Quick Disconnect
General Info
8" wall mount mixing faucet with polished chrome plated brass body, 44" flexible stainless steel hose with heat resistant handle, atmospheric vacuum breaker, spray valve with quick disconnect spray head, quick disconnect jet spray and quick disconnect hook nozzle, ceramic cartridges with check valves, lever handles and 1/2" NPT female inlets.
T&S Brass B-2312-CR Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- 3/8" NPT atmospheric vacuum breaker
- 44” flexible stainless steel hose w/ heat resistant blue handle and hold down ring
- Spray valve with quick disconnect socket
- Quick disconnect shower spray, jet spray and hook nozzle spray accessories spray heads
- Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body and spray valve body, chrome plated vacuum breaker, chrome plated metal handles and stainless steel hose
T&S Brass B-2312-CR Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Shower Spray: 3.93 GPM [14.88 L/min] @ 60 psi [4.14 bar]
- Fan Jet Spray: 3.25 GPM [12.30 L/min] @ 60 psi [4.14 bar]
- Hook Nozzle: 2.71 GPM [10.26 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Pot Filler Faucet, wall mount, 8" centers, single control, 3/8" NPT atmospheric vacuum breaker, 44" stainless steel flexible hose with quick disconnect, quarter-turn Cerama cartridge with check valves, lever handle with color indexes, 1/2" NPT female inlet, chrome-plated brass finish, low lead, NSF, cCSAus
