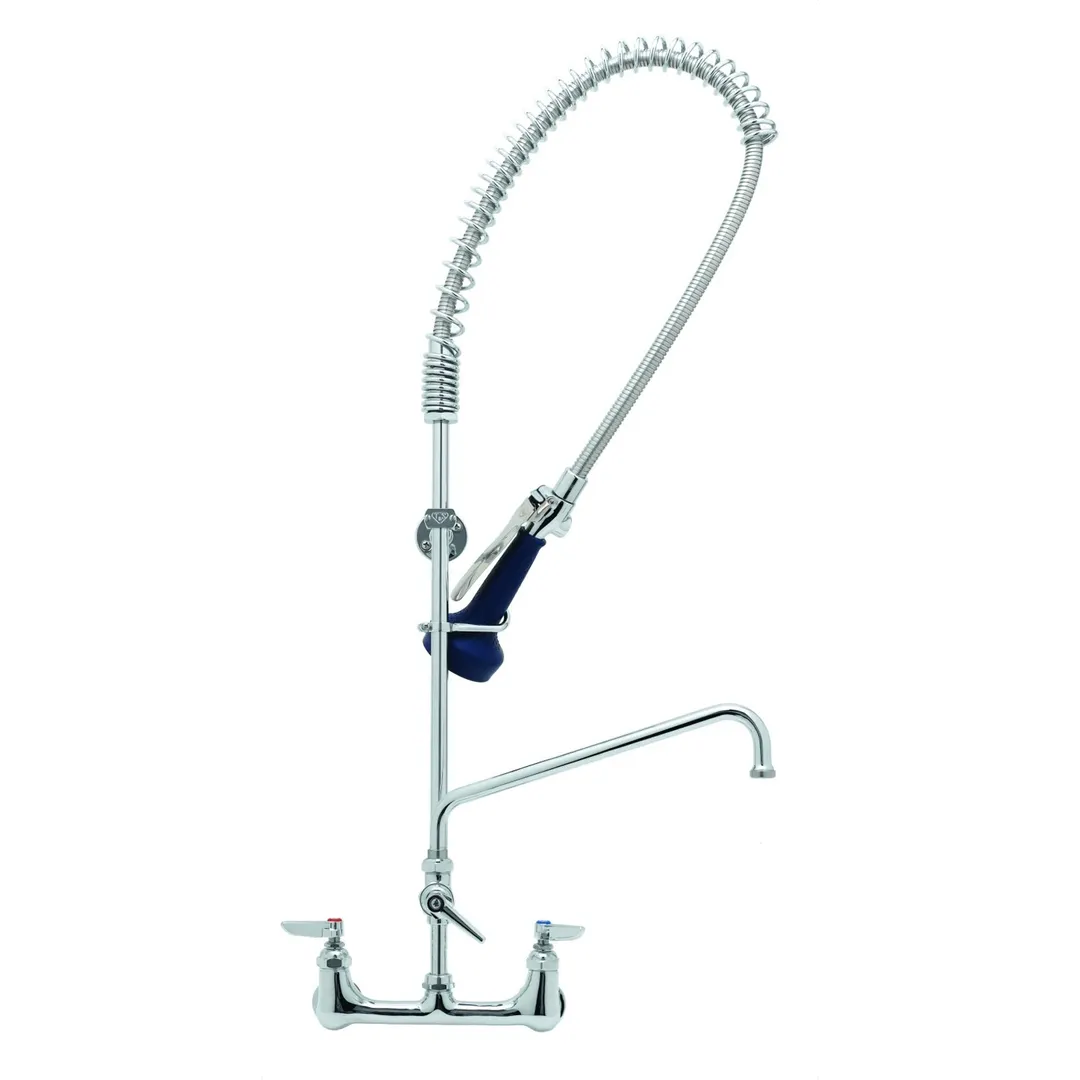

T&S Brass B-0133-A12-08 EasyInstall Pre-Rinse Unit-Spring Action
General Info
The B-0133-A12-08, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 18" riser, 44" flexible stainlesssteel hose, 1.07 GPM spray valve with insulated grip handle.
T&S Brass B-0133-A12-08 Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 12” swing nozzle w/ stream regulator outlet, Series 1
- 18” rigid riser
- 44” flexible stainless steel hose
- 1.07 GPM JeTSpray spray valve with insulated grip handle, stainless steel trigger and trigger lock
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- Material: Polished chrome plated brass body, tubular spout, add-on faucet body, riser & spray valve body, stainless steel hose, and chrome plated metal handles
T&S Brass B-0133-A12-08 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Spray Valve: 1.07 GPM [4.05 L/min] @ 60 psi [4.14 bar]
- Add-On Faucet: 9.73 GPM [36.8 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
EasyInstall Pre-Rinse Unit, 8" wall mount, adjustable centers, EasyInstall 12" add-on faucet with stream regulator, spring action gooseneck, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, 18"rigid riser, 44" flexible stainless steel hose, 1.07 GPM JeTSpray spray valve, 1/2" NPT, low lead, NSF, cCSAus
