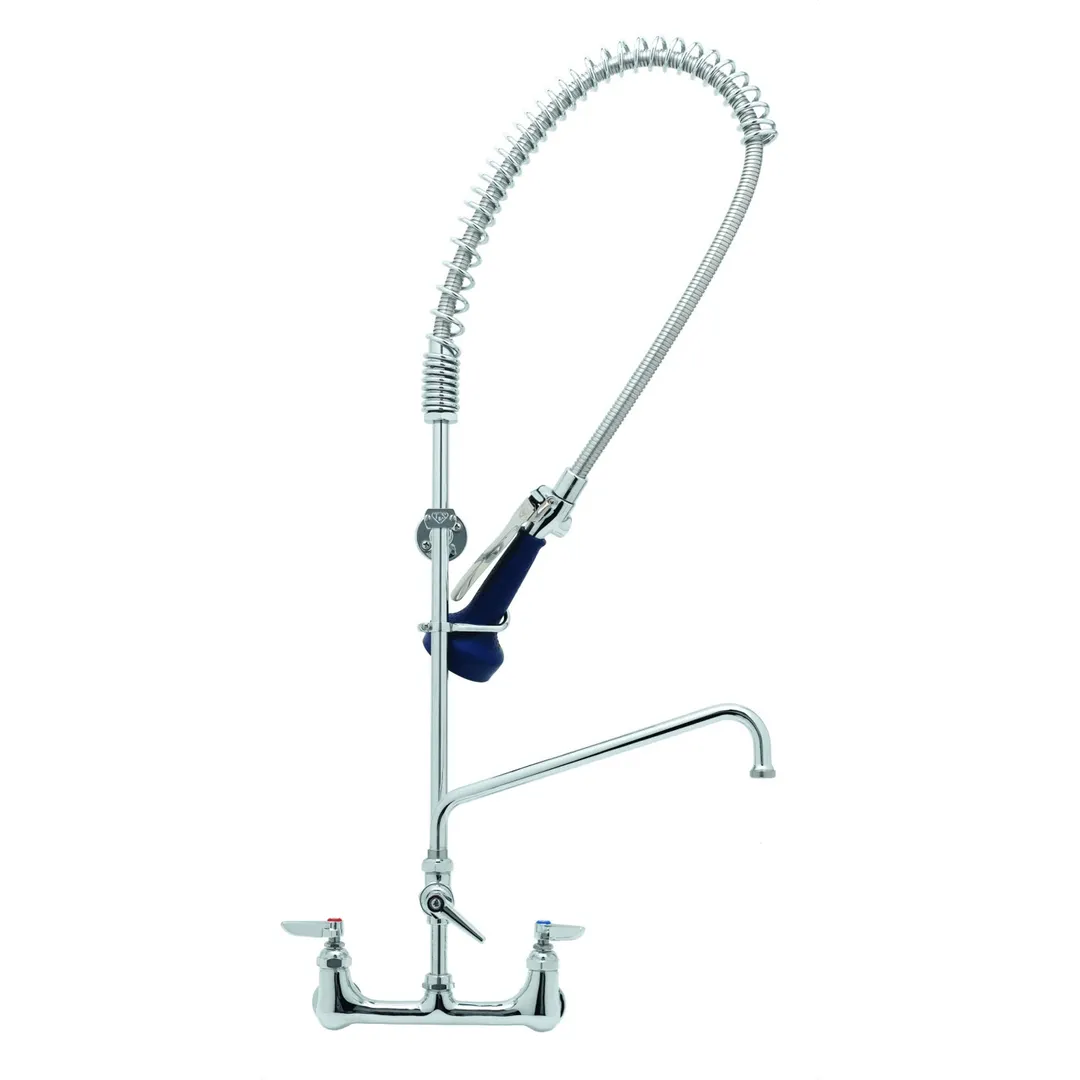

T&S Brass B-0133-A12-B08 EasyInstall Pre-Rinse Unit-Spring Action
General Info
The B-0133-A12-B08, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 18" riser, 44" flexible stainlesssteel hose, 1.07 GPM spray valve with insulated grip handle, compression cartridges with spring checks.
T&S Brass B-0133-A12-B08 Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 12” swing nozzle w/ stream regulator outlet, Series 1
- 18” rigid riser
- 44” flexible stainless steel hose
- 1.07 GPM JeTSpray spray valve with insulated grip handle, stainless steel trigger and trigger lock
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, tubular spout, add-on faucet body, riser & spray valve body, stainless steel hose, and chrome plated metal handles
T&S Brass B-0133-A12-B08 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Spray Valve: 1.07 GPM [4.05 L/min] @ 60 psi [4.14 bar]
- Add-On Faucet: 9.73 GPM [36.8 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
EasyInstall Pre-Rinse Unit, 8" wall mount, adjustable centers, EasyInstall 12" add-on faucet with stream regulator, spring action gooseneck, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, 18"rigid riser, 44" flexible stainless steel hose, 1.07 GPM JeTSpray spray valve, 6" adjustable wall bracket, 1/2" NPT, low lead, NSF, cCSAus
