T&S Brass B-0175-04 Faucet With Swing Nozzle And Spray Unit
General Info

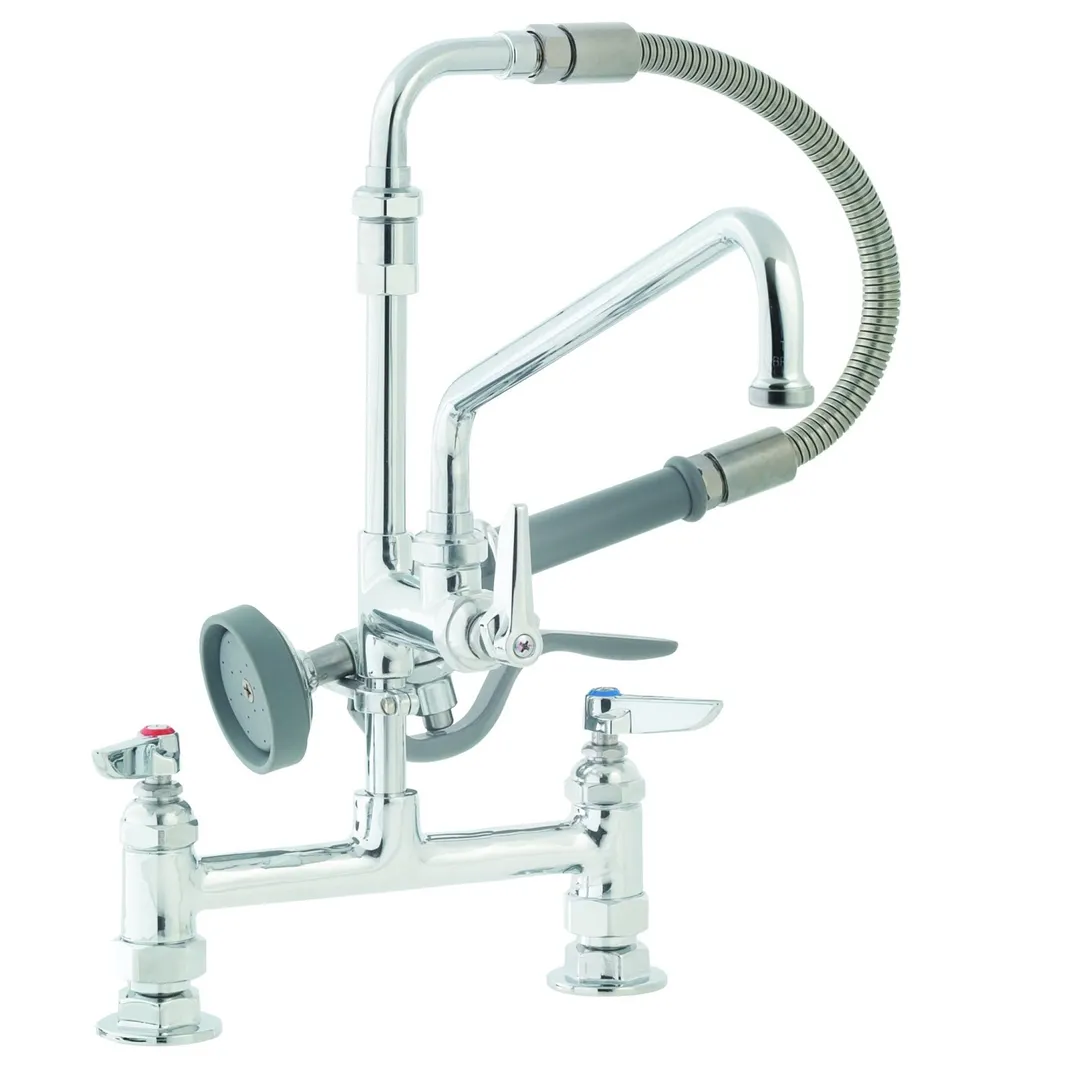

The B-0175-04, 8" deck mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 104" flexible stainless steel hose with heat resistant handle, 90deg swivel adapter arm, 1.15 GPM angled spray valve, compression cartridges with spring checks, lever handles,1/2" NPT female inlets and hose hanger hook.
T&S Brass B-0175-04 Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 12” swing nozzle w/ stream regulator outlet, Series 1
- 104” flexible stainless steel hose with heat resistant gray handle and hold down ring
- 90° swivel adapter arm
- 1.15 GPM angled spray valve
- Quarter-Turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- Hose hanger hook
- Material: Polished chrome plated brass body, add-on faucet, hanger hook, tubular nozzle, swivel arm and spray valve, stainless steel hose & chrome plated metal handles
T&S Brass B-0175-04 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Spray Valve: 1.15 GPM @ 60 psi
- Add-On Faucet: 9.73 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pre-Rinse Unit, 8" deck mount base, add-on faucet with 12" swing nozzle, hose & angled spray valve, wall hook, quarter-turn Eterna cartridges, low lead
