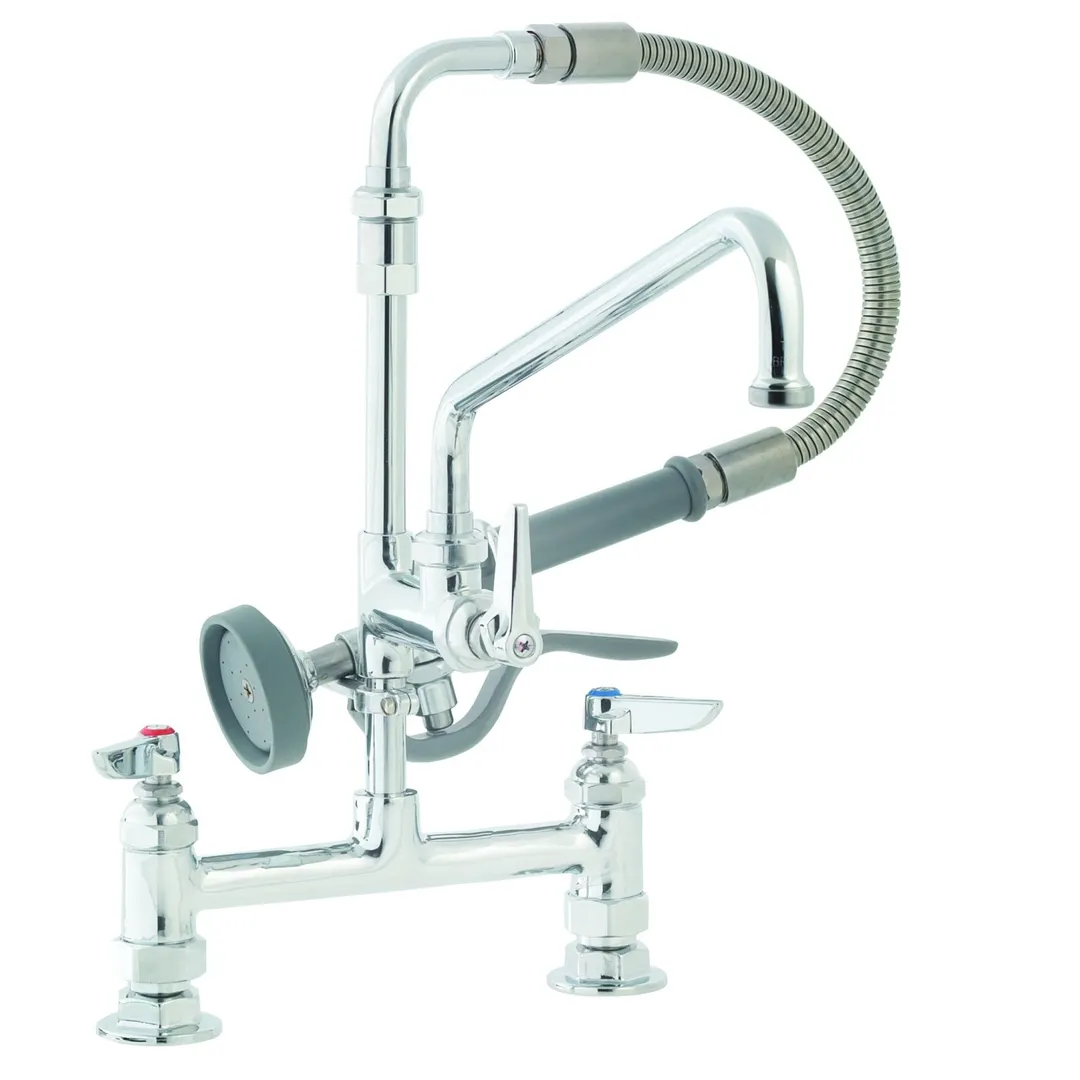

T&S Brass B-0178 Faucet With Swing Nozzle And Spray Unit
General Info
The B-0178, 8" deck mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge w/ spring check and lever handle, 12" swing nozzle with stream regulator outlet, 20" flexible stainlesssteel hose with heat resistant handle, 90deg swivel adapter arm, 1.15 GPM spray valve, compression cartridges with spring checks.
T&S Brass B-0178 Features
- 8” deck mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 12” swing nozzle w/ stream regulator outlet, Series 1
- 20” flexible stainless steel hose with heat resistant gray handle and hold down ring
- 90° swivel adapter arm
- 1.42 GPM spray face
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Optional Handles Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- Material: Polished chrome plated brass body, add-on faucet, hanger hook, tubular nozzle, swivel arm and spray valve, stainless steel hose & chrome plated metal handles
T&S Brass B-0178 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Spray Valve: 1.42 GPM @ 60 psi
- Add-On Faucet: 9.73 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Spray Assembly, 8" centers, deck mount base, 12" add-on faucet, spray valve & hose, quarter-turn Eterna cartridges, low lead
