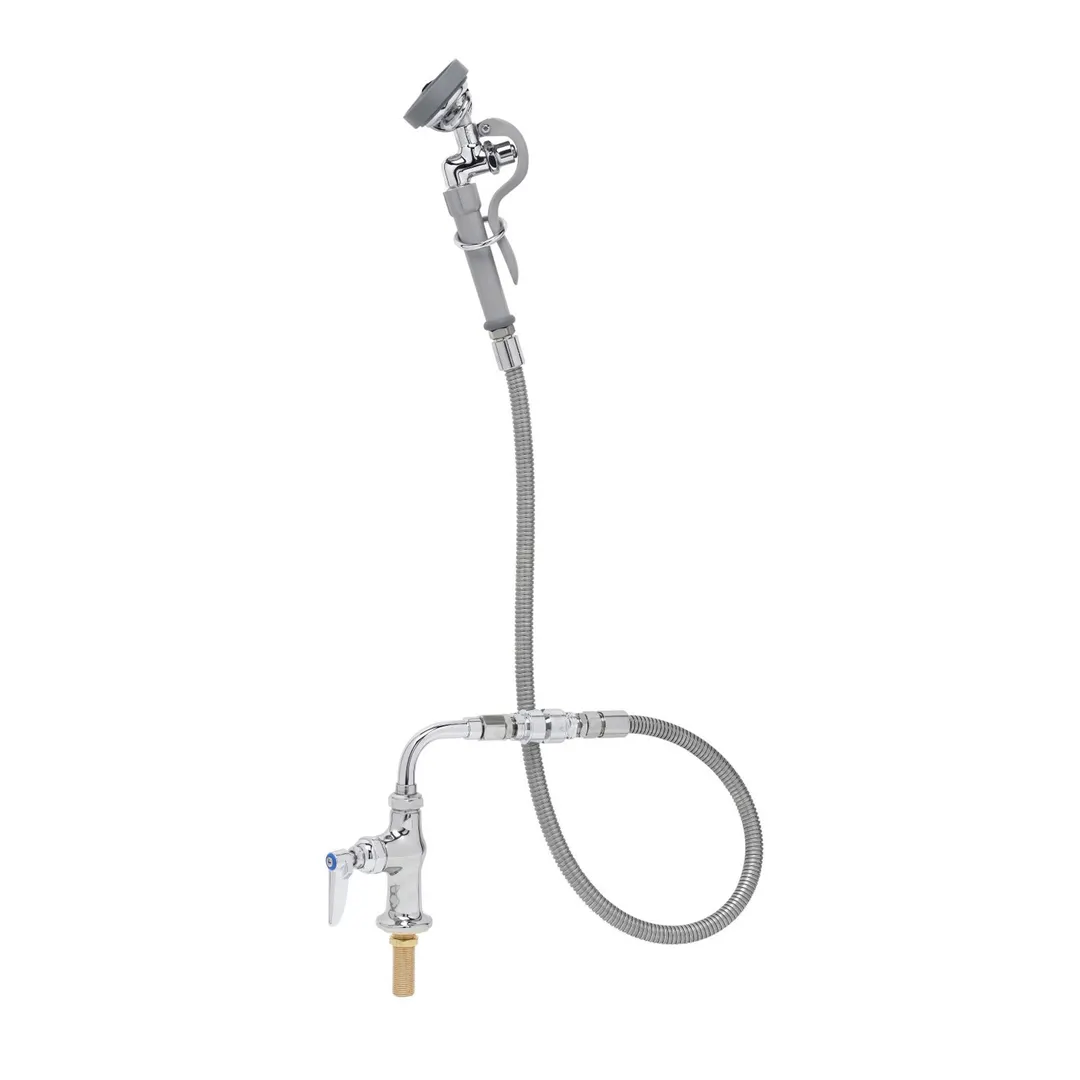

T&S Brass B-0205-44H-VB Single Pantry Washdown Faucet
General Info
The B-0205-44H-VB, Single hole single temperature deck mount faucet with polished chrome plated brass body, 90 swivel adapter, 3/8" NPT vacuum breaker, 44" flexible stainless steel hose, heat resistant handle, 1.15 GPM angled spray valve, compression cartridges with spring checks, lever handles, 1/2" NPSM male inlets and wall hook.
T&S Brass B-0205-44H-VB Features
- Single hole single temperature deck mount mixing faucet w/ polished chrome plated brass body
- 90 swivel adapter
- 3/8" NPT vacuum breaker
- 44” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.42 GPM angled spray valve
- Quarter-turn Eterna compression cartridge w/ spring check
- Lever handle w/ color coded index
- 1/2" NPSM male inlet
- Wall hook holds spray valve when not in use
- Optional tailpieces and nuts for 1/4” NPT male connections
- Material: Polished chrome plated brass body, spray valve body & tubular adapter, stainless steel hose and chrome plated metal handle
T&S Brass B-0205-44H-VB Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 1.42 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pantry Mixing Faucet Kit, single, deck mounted, includes: vacuum breaker (B-0970-01), swivel elbow (034A), angle spray valve with 44" flexible stainless steel hose (B-0107-035), wall hook (B-0104-D), tailpiece & nut for 1/4" NPT connection (150A), lever handles with color coded indexes
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
