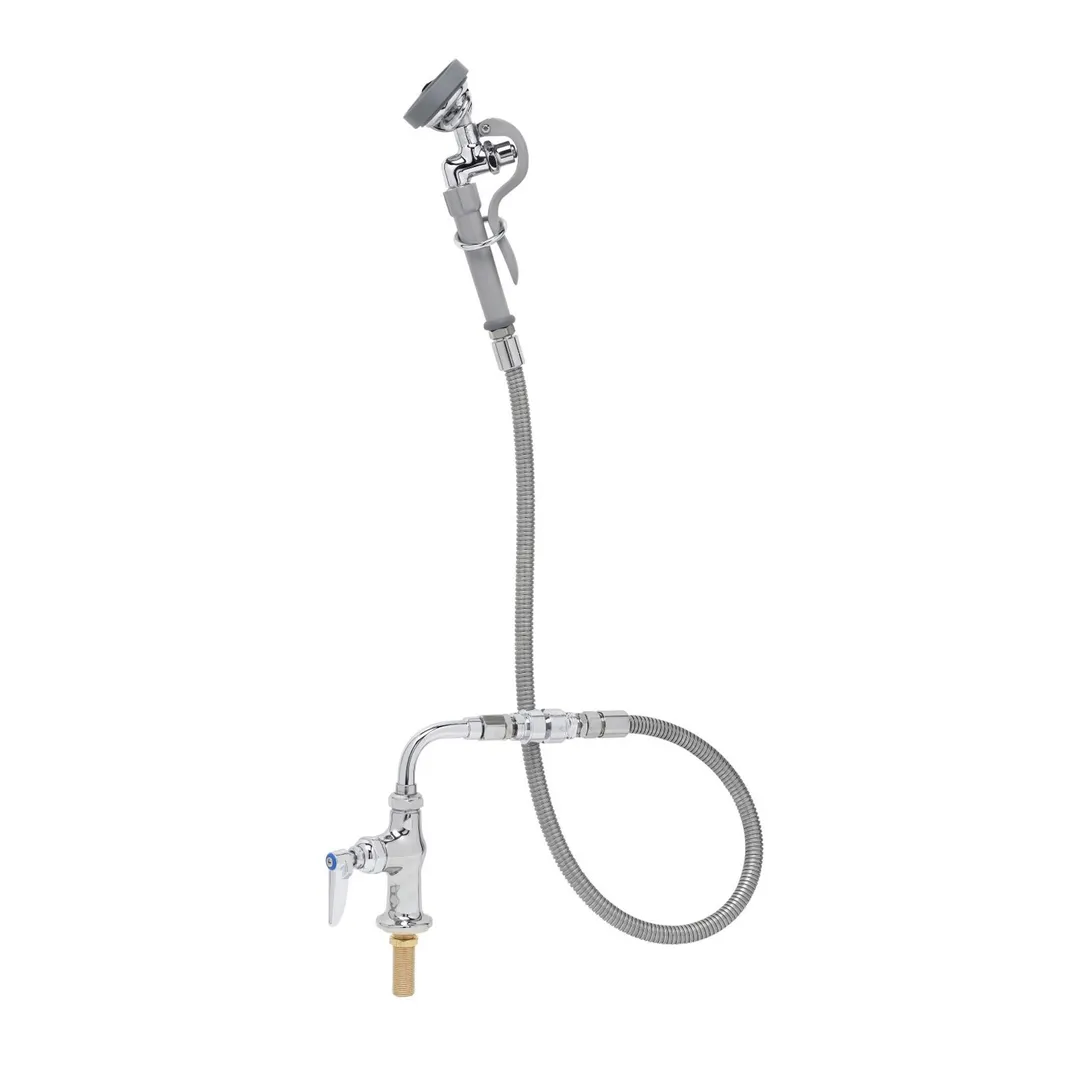

T&S Brass B-0205-60H-VB Single Pantry Washdown Faucet
General Info
The B-0205-60H-VB, Single hole single temperature deck mount faucet with polished chrome plated brass body, 90 swivel adapter, 3/8" NPT vacuum breaker, 60" flexible stainless steel hose, heat resistant handle, 1.15 GPM angled spray valve, compression cartridges with spring checks, lever handles, 1/2" NPSM male inlets and wall hook.
T&S Brass B-0205-60H-VB Features
- Single hole single temperature deck mount mixing faucet w/ polished chrome plated brass body
- 90 swivel adapter
- 3/8" NPT vacuum breaker
- 60” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.42 GPM angled spray valve
- Quarter-turn Eterna compression cartridge w/ spring check
- Lever handle w/ color coded index
- 1/2" NPSM male inlet
- Wall hook holds spray valve when not in use
- Optional tailpieces and nuts for 1/4” NPT male connections
- Material: Polished chrome plated brass body, spray valve body & tubular adapter, stainless steel hose and chrome plated metal handle
T&S Brass B-0205-60H-VB Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 1.42 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pantry Mixing Faucet Kit, single, deck mounted, includes: vacuum breaker (B-0970-01), swivel elbow (034A), angle spray valve with 60" flexible stainless steel hose (B-0107-035), wall hook (B-0104-D), tailpiece & nut for 1/4" NPT connection (150A), lever handles with color coded indexes
