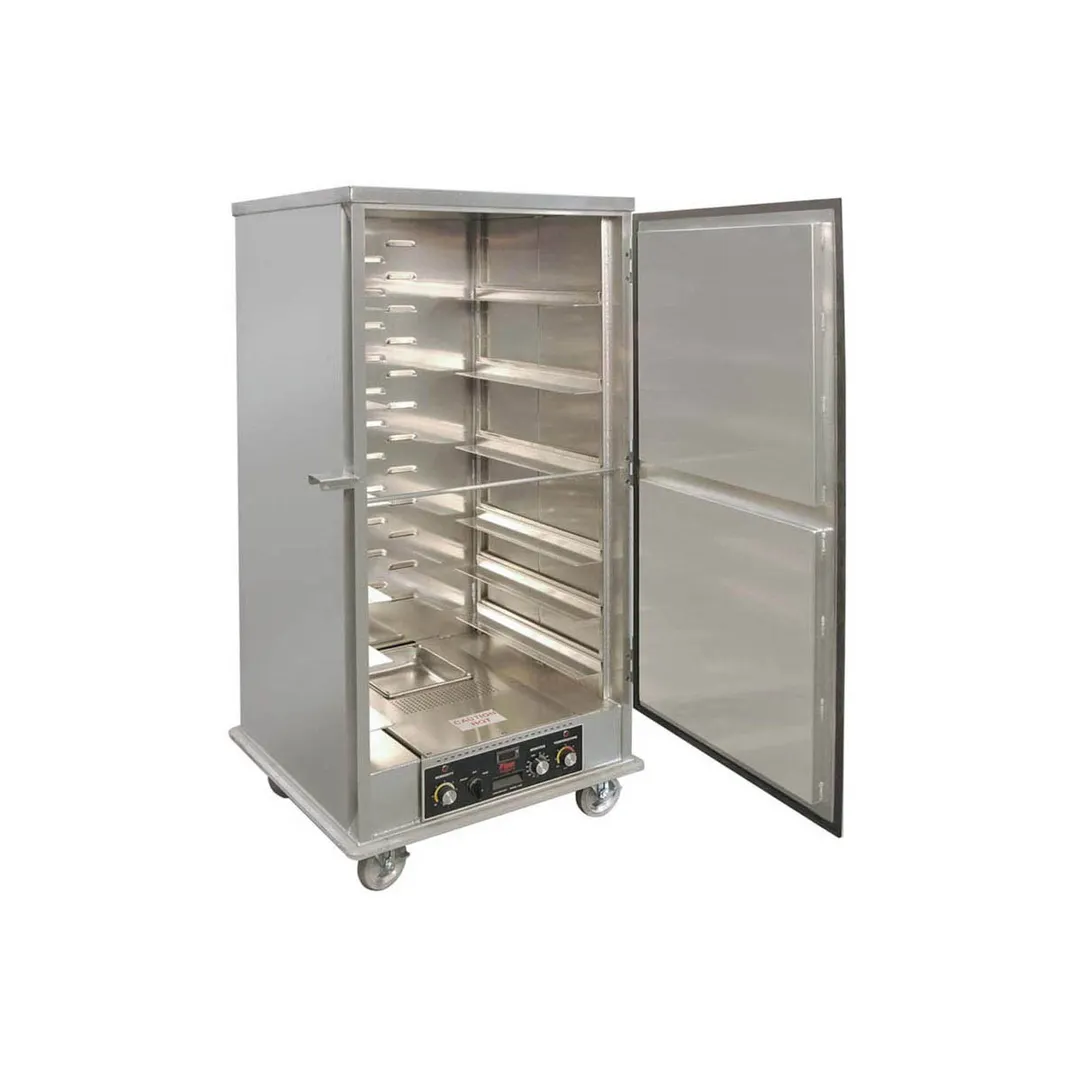

Piper Products 1012U Heated/Proofing Cabinet, (1) Solid Door

SKU PPR-1012U

$6,981.00/Each

Piper Products 1012U Heated/Proofing Cabinet, (1) Solid Door

The image above may not exactly represent the product

$6,981.00/Each

0% Interest for 30 Days with

Calculate Estimated Shipping Cost

View Comparelist

Works With

Piper Products -PB Full Perimeter Non Marking Bumper

Piper Products -B Corner Bumpers,

Piper Products CHT-2 - Canned Heat Tray Insert, Wick Fuel, Transport Cabinet Compatible

Piper Products 109497 Additional slides, for 1012U, priced per set

Financing Available

Small payments, big returns—view financing details now!

Resources

resources of Spec Sheet

Certifications

Piper Products 1012U Heated/Proofing Cabinet, (1) Solid Door

Piper Products 1012U Heated/Proofing Cabinet, (1) Solid Door

Piper Products 1012U Specs

Manufacturer	Piper Products
Model Number	1012U
Weight	260 lbs
Width	31″
Depth	30.5″
Height	67.5″
Placement	mobile
Design Features	heated/proofing cabinet
Sections	1 section w/1 compartment
Slide Spacing (in)	3"
Insulation	insulated
Control Location	bottom
Exterior Finish	aluminum
Interior Finish	aluminum
Proofer Doors	aluminum door
Certifications	NSF, UL

View All Piper Products Products >

Works With

Piper Products -PB Full Perimeter Non Marking Bumper

Piper Products -B Corner Bumpers,

Piper Products CHT-2 - Canned Heat Tray Insert, Wick Fuel, Transport Cabinet Compatible

Piper Products 109497 Additional slides, for 1012U, priced per set

Description

Reviews

Piper Products 1012U Universal Heated Proofer

Why use Piper Products Proofer?

Piper’s aluminum Heated Cabinets /Proofers are designed with features to make your operation efficient. Controls can be easily accessed at the front of the Cabinet without opening the doors and the entire heater unit can be removed for cleaning and maintenance.

Piper Products 1012U Heat System

Individual heat and food moisture controls
Digital read-out for accuracy
Stainless steel 1 gallon water pan
Unit removable for easy cleaning & maintenance
60 minute timer
120 volt, 12.5 AMP, 1500 Watts

Piper Products 1012U Heavy Duty Casters

5” diameter x 1/1/4” wide swivel sealed wheels
350 lb. capacity
Maximum resistance to chemicals, acids, bases, alcohol, water and steam
Maximum low temperature flexibility or superior performance even in freezing temperatures

Piper Products 1012U Common Options

Lexan full-view door
Push handle
Dutch doors
Personalized embossment

Piper Products 1012U Standart Features

Base is a solid bottom constructed of .125” aluminum, rolled edge base acts as a built-in bumper
Two 14-gauge aluminized steel reinforcing channels attach the casters and support the bottom panel
Frame consist of four extruded channels 1-1/2” x 5/8” x.094” aluminum. Corners have .190 channel supports for reinforcement
Double pan top constructed of two .080” thick aluminum panels, fully welded corners
Universal Glides are adjustable on 3” centers to accommodate various steam table and sheet pan sizes
Door panel is .125” PVC coated aluminum attached to cabinet with bakery hinges, 270 degree door swing with card clip
Back panel is .080” aluminum fully welded with removable multiple louvered vent stack
1/2” extruded aluminum tie bar keeps cabinet square
16-gauge stainless steel positive gravity latch is provided to keep door closed during transport
Stainless steel side door latch holds door open
One inch insulation surround the cabinet (Insulated models only)
Card clip, easy identification of cabinet content when door is closed

From The Manufacturer

Heated Proofer Cabinet for 18" x 26" & 12" x 20" pans, insulated, aluminum construction, universal shelving, (12) sets of slides, 5” diameter swivel sealed wheels (2 with brakes), NSF, UL
