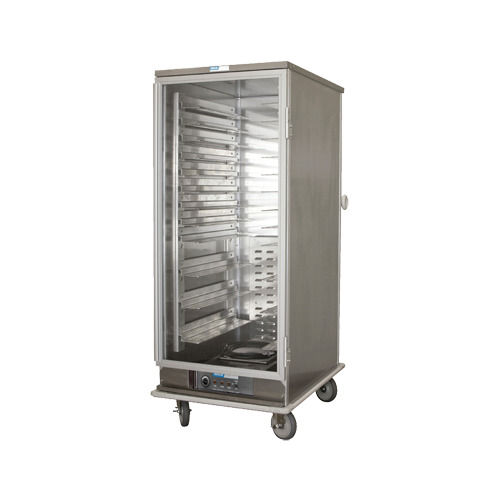

SecoSelect VCHI-66-RFMG Full Height Insulated Heated/Proofing Cabinet, (1) Right Hinged Lexan Door

SecoSelect VCHI-66-RFMG Heated Cabinet Features

• Double Wall Construction with reinforcement channels welded between corner posts for added support and rigidity.
• Fully insulated top, sides, back and door for energy efficiency and heat retention.
• 20 gauge Aluminum Exterior for durability and cleanabilty.
• Aluminum Interior for even heat retention and energy efficiency
• Heavy Duty Frame side panels for an air tight seal and structural rigidity.
• Doors open 270 degrees, are equipped with center reinforcement and heavy duty flag hinges. Comes standard with built in Flush Mounted Door Handle.
• Designed to hold 18” X 26” or 14” X 18” Trays or 12” X 20” Hotel Pans with variable spacing on 3 1/8” centers. The tray slides are easily removable for cleaning.
• SecoSelect® Stainless Steel EvenHeat™ unit is removable from the front.
• Heating unit has a blower and rear mounted louvered flue to distribute heat evenly throughout cabinet.
• 1750 Watts, heating elements not exposed to water.
• Separate Heater and Proofer Controls.

General

Cabinet shall be constructed with a 20 gauge aluminum exterior and an aluminum interior. All double wall construction insulated with high density fiberglass insulation.

Internal Frame

Cabinet shall be framed with 1 ½“ x 1 ½” x 1/8” thick 6063-T5 aluminum tubing in the front and back. Frame shall be fully welded.

Base

IBase shall be .100 aluminum and shall be reinforced with 1/8” thick aluminum cross braces.

Inner Cabinet

Inner cabinet shall be all aluminum construction. Cabinet shall be insulated with high density fiberglass. 1” on sides, top and bottom, ¼” on the back. Cabinet slides shall be constructed using 1/8” thick aluminum extrusions. Cabinet shall come standard with 12 sets of slides which shall be adjustable and removable. Cabinet shall accommodate 18” x 26” sheet pans and 12” x 20” hotel pans. Cabinet shall be heated by the EvenHeat™ System.

Door

Door shall have an aluminum interior and exterior, and shall be insulated. Door shall have two (2) heavy-duty, 5/8” thick extruded flag type hinges. Door shall be removable without tools and shall have recessed handles. Door shall have a heavy-duty positive action magnetic latch.

Electrical Characteristics

Cabinet shall have a bottom mounted, proofing/heating control panel consisting of: on and off switch, power indicator lights, and thermostat control. The 1750 watt EvenHeat™ System shall be removable from the front. Cabinet shall be 120 volt, 60 cycles, and 1 phase. Cabinet shall have a cord with a Nema #5-15 plug. Shall come standard with a drip trough to catch condensation.

Casters

Cabinet shall come complete with 4-5” nonmarking plate casters, 2 rigid and 2 swivel. Casters shall have a weight capacity of 200 lbs each.
