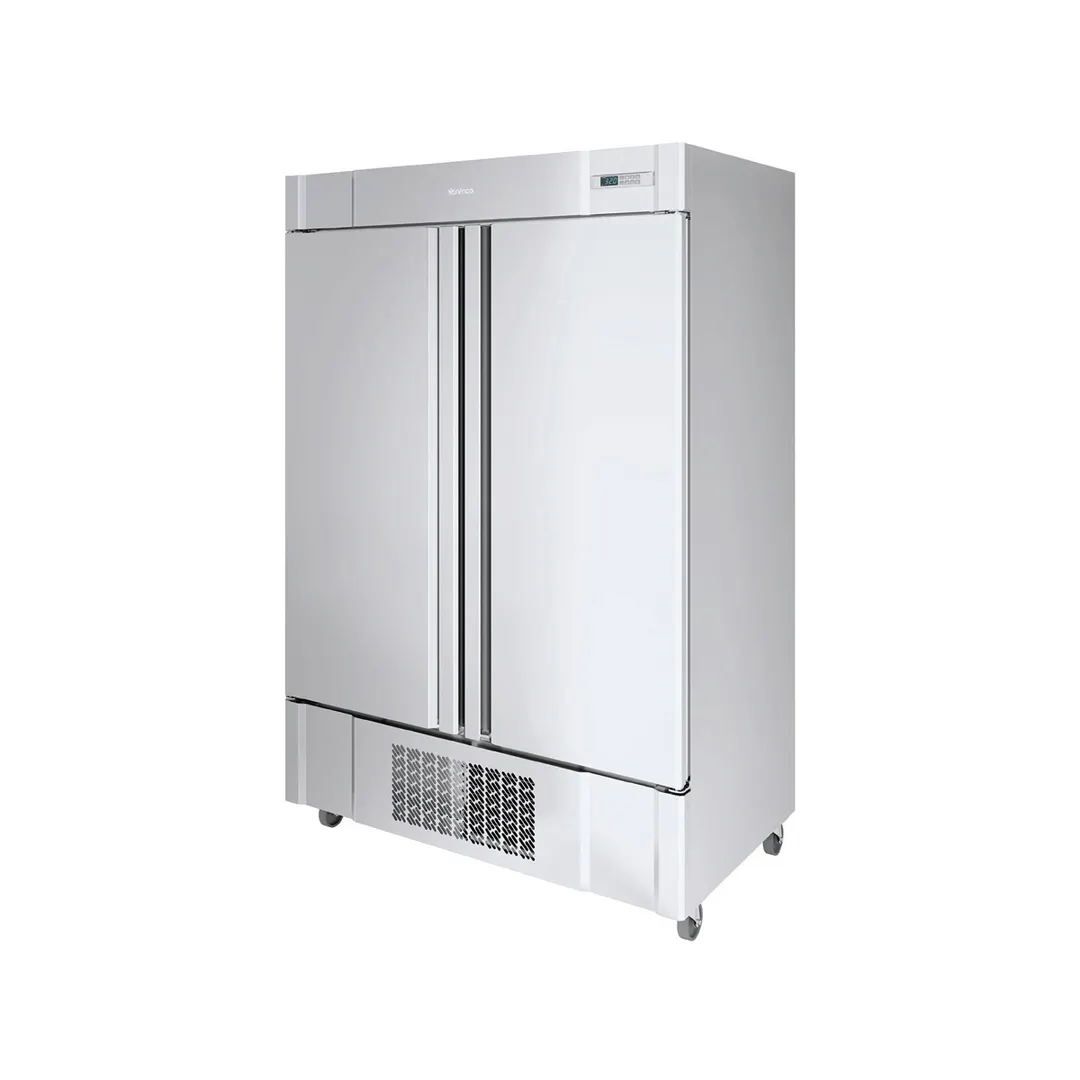

Infrico USA IRR-AN49BT 54" 2-Solid Door Reach-In Freezer, Bottom Mounted, 49 cu. ft.

Structure

AISI 430 stainless steel. Galvanized metal back cover plate. 4 inch casters diameter. Front casters with brake. Lift-up control panel for easy access to condenser unit. Lock system. Wide rounded corners to aid cleaning. Drain inside the cabinet.

Energy Efficiency

Better energy class due to the optimized circulation of air, the use of R290 refrigerant and electronic fans, all this for a better interior temperature distribution. 30amp. controller.

Sanitation

The interior cabinet is built with rounded corners (extensive radius for easy cleaning). Quick ability to take off shelves and slides for interior cleaning. Each cabinet has a drain at the bottom of the unit. When cleaning the unit make sure the drain hose is routed to a floor drain.

Doors

Self-closing door system with permanent pressure. Stay open feature included when door remains open after 95 degrees. All doors include triple chamber door gaskets, easy to remove and snap in. Doors are field reversible, parts not included.

Control Systems

Greater ability for the adjustment of temperature range as per the end user’s requirements.

100% Tested

All condenser units are 100% tested, in helium chambers for refrigerant leak detections.

Lighting

LED lighting in the canopy and cabinet sides reduces the energy consumption by 80% to 90% compared to a traditional bulb, better light quality

Certifications

Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7. AENOR audited and certified by internationally recognized firm. ISO 9001:2015 (Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety).

Infrico USA IRR-AN49BT Specifications

• Dimensions(inches) : 54-1/2 W X 31-1/8 D X 83-3/8 H
• Nº Doors : 2
• Nº Shelves : 6
• Ref. : R290
• Ref. Weight (Lbs.) : 0.33
• Temp. Range (ºF) : 0 ºF
• Capacity (Cu. Ft.) :49
• Cond. Unit. H.P : 1 1/4
• Case Amps (115V.) :8,7
• Crated Weight (Lbs.) : 610
