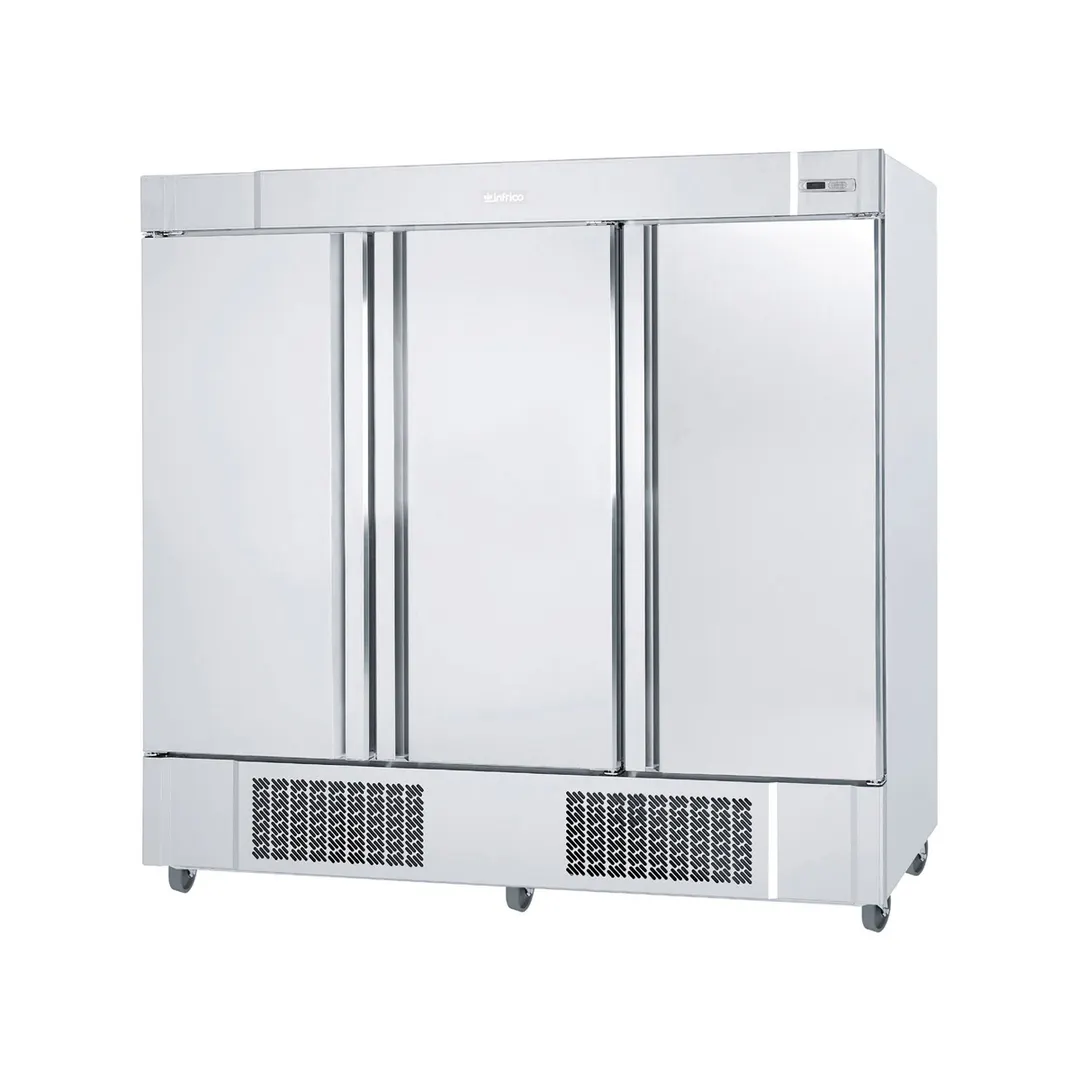

Infrico USA IRR-AN67BT Reach In: Bottom Mounted Reach-in Freezers
Structure
AISI 430 stainless steel. Galvanized metal back cover plate. 4 inch casters diameter. Front casters with brake. Lift-up control panel for easy access to condenser unit. Lock system. Wide rounded corners to aid cleaning. Drain inside the cabinet.
Energy Efficiency
Better energy class due to the optimized circulation of air, the use of R290 refrigerant and electronic fans, all this for a better interior temperature distribution. 30amp. controller.
Sanitation
The interior cabinet is built with rounded corners (extensive radius for easy cleaning). Quick ability to take off shelves and slides for interior cleaning. Each cabinet has a drain at the bottom of the unit. When cleaning the unit make sure the drain hose is routed to a floor drain.
Doors
Self-closing door system with permanent pressure. Stay open feature included when door remains open after 95 degrees. All doors include triple chamber door gaskets, easy to remove and snap in. Doors are field reversible, parts not included.
Control Systems
Greater ability for the adjustment of temperature range as per the end user’s requirements.
100% Tested
All condenser units are 100% tested, in helium chambers for refrigerant leak detections.
Lighting
LED lighting in the canopy and cabinet sides reduces the energy consumption by 80% to 90% compared to a traditional bulb, better light quality
Certifications
Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7. AENOR audited and certified by internationally recognized firm. ISO 9001:2015 (Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety).
Infrico USA IRR-AN67BT Specifications
- Dimensions(inches) : 82 W X 31-1/8 D X 83-3/8 H
- Nº Doors : 3
- Nº Shelves : 9
- Ref. : R290
- Ref. Weight (Lbs.) : 0.31
- Temp. Range (ºF) : 0 ºF
- Capacity (Cu. Ft.) :67
- Cond. Unit. H.P : 3/4 + 3/4
- Case Amps :10,6 (115V) & 24 (220V)
- Crated Weight (Lbs.) : 900
