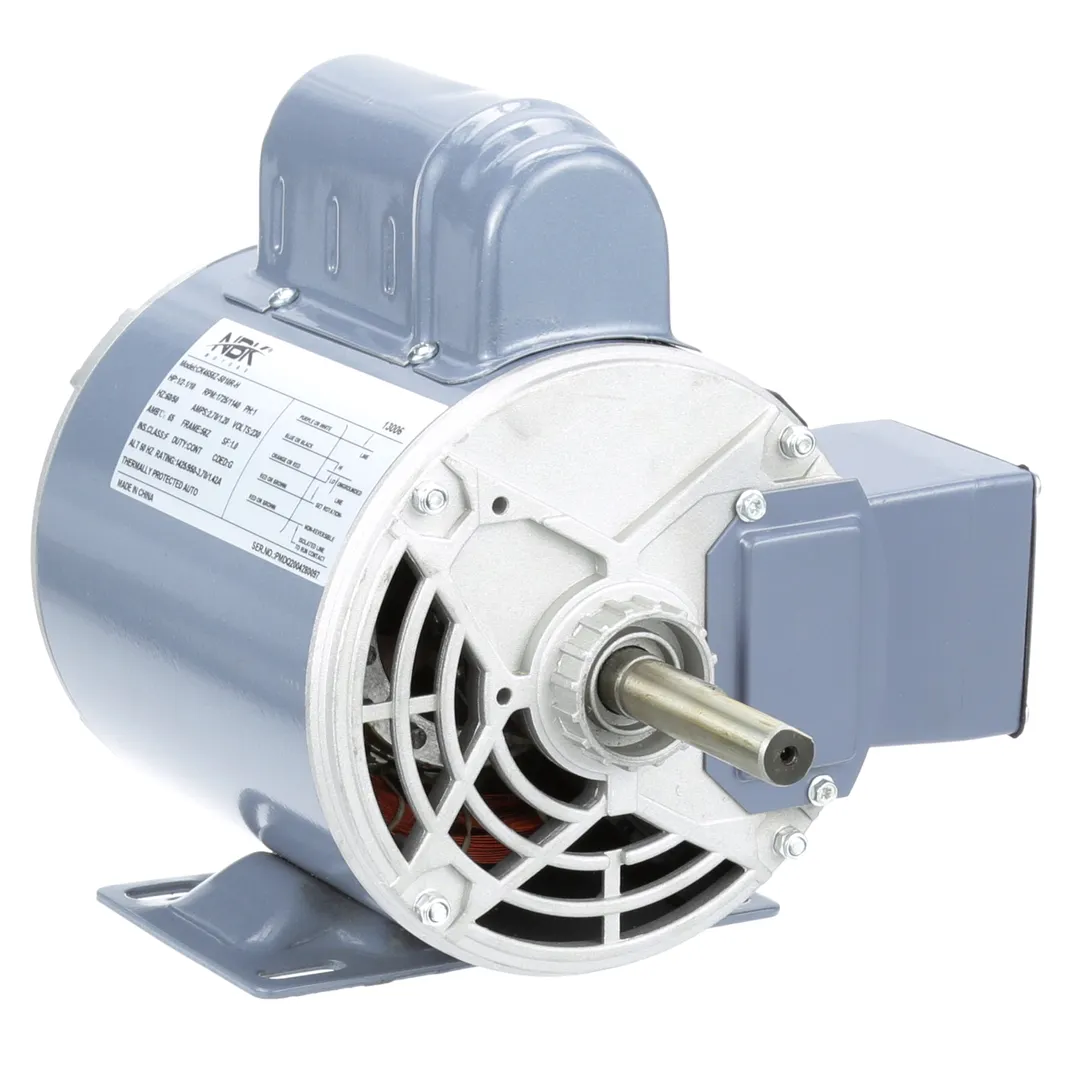

Reliable Two‑Speed Motor for High‑Volume Kitchen Blowers
Deliver consistent airflow and energy efficiency with AllPoints 681117’s dual‑speed design, keeping ovens and fryers operating at peak performance.
Key Features
- Two‑speed operation at 1724 RPM (high) and 1140 RPM (low) for adaptable airflow control.
- Rated 208‑230 V, 50/60 Hz single‑phase power suitable for standard commercial kitchen circuits.
- Output range of 1/2‑1/10 HP provides reliable torque for demanding cooking equipment.
- 56Z frame with 5/8" × 2‑1/2" shaft ensures direct fit to Hobart, Vulcan, and Wolf blower wheels.
- Clockwise rotation and compatible with flat‑back (26‑1468) or concave‑back (26‑2287) blower wheels for versatile equipment replacement.
From The Manufacturer
Blower Motor, 2 Speed,, 208-230V,, 50/60 Hz, 1/2-1/10Hp,, 1Ph, 1724/1140 Rpm, Cw Rotation, 56Z Frame,, 5/8" X 2-1/2" Shaft, Hobart & Vulcan Blower Wheels:, Flat Back # 26-1468 Or, Concave Back # 26-2287, Either Should Work, Same Size., Wolf Blower Wheel # 26-1469, Hobart Oven Hgc40, Vulcan Oven Sg4(C, D), Sg6(C, D), Gco(4D, 6D, 4S, 44S), Gdo(4S, 44S) Vc4G(S, D), Vc6G(S, D), Wolf Oven Wkgd,
