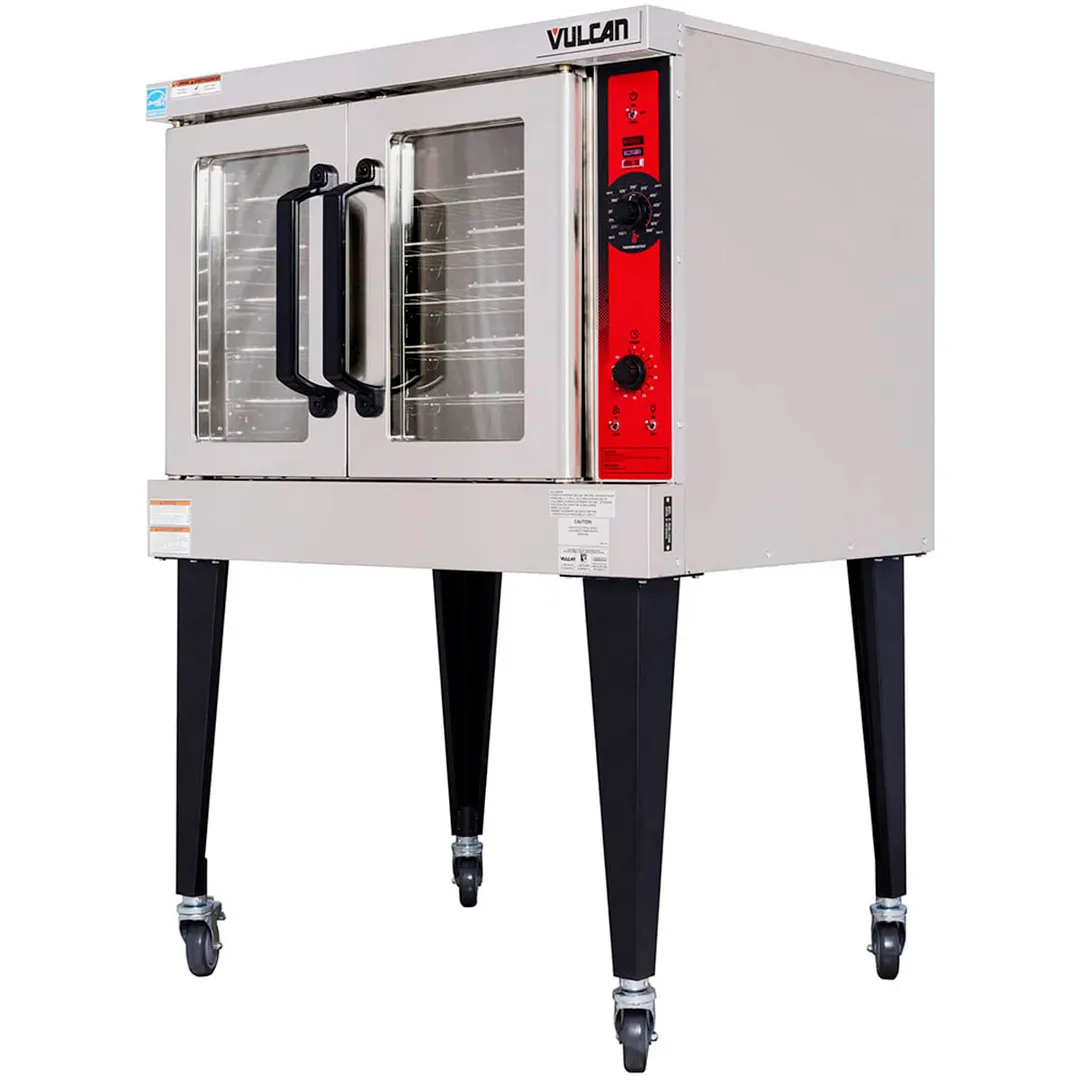

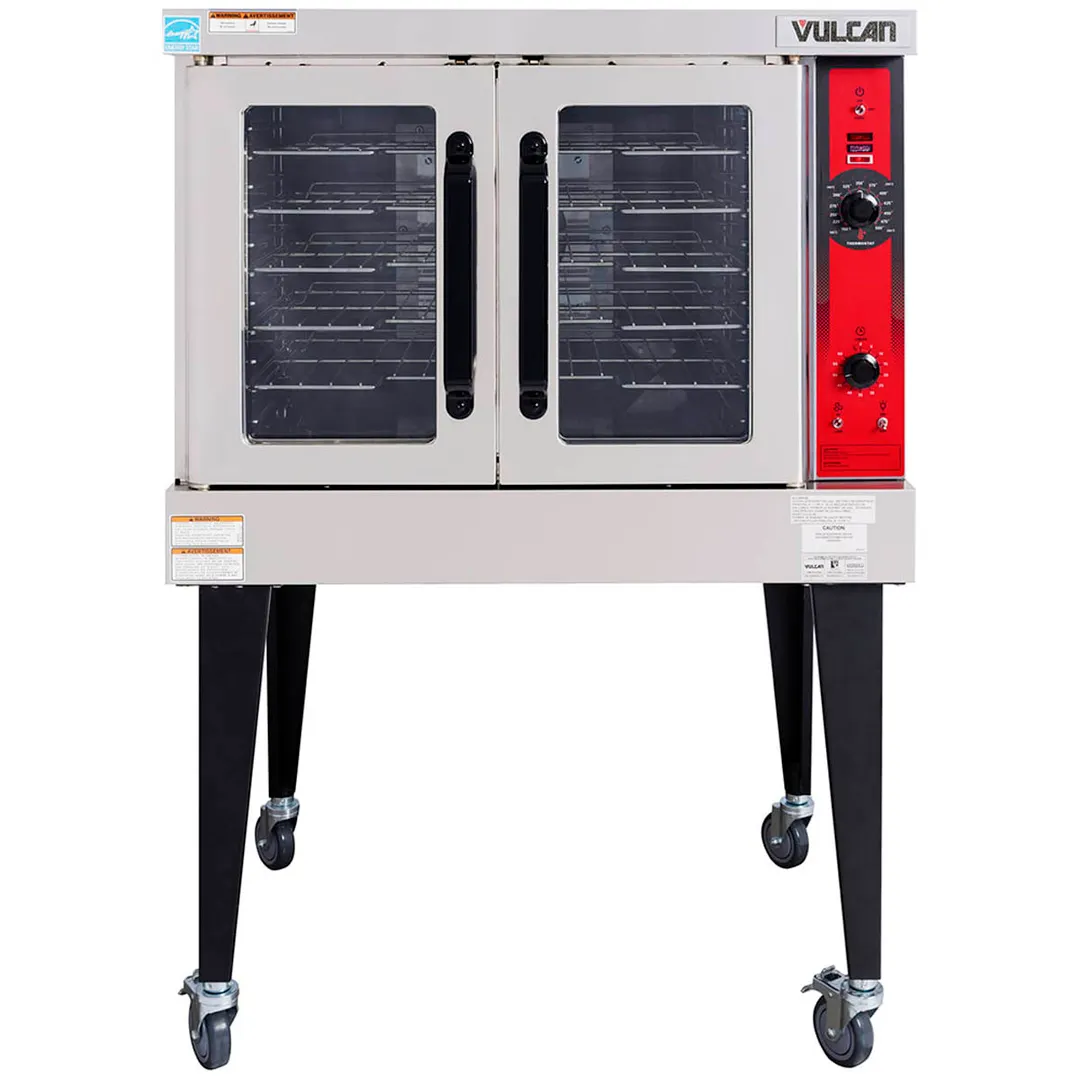

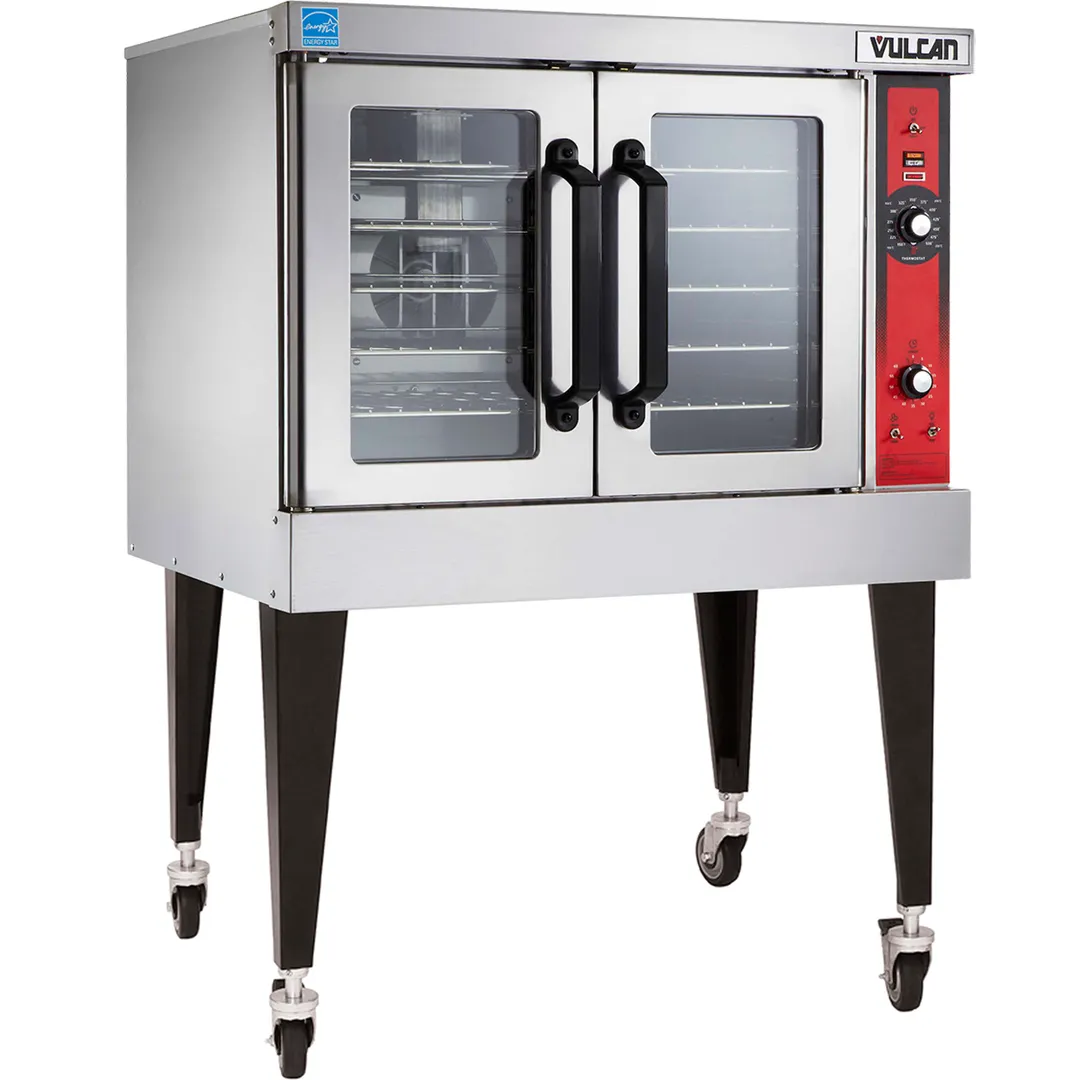

Vulcan VC4E SERIES SINGLE DECK ELECTRIC CONVECTION OVENS
SPECIFICATIONS
Single section, electric convection oven, Vulcan Model No. (VC4ED) (VC4EC). Stainless steel front, sides and top. Painted legs. Independently operated stainless steel doors with double pane windows. Non-sag insulation applied to the top, rear, sides, bottom and doors. Porcelain enamel on steel oven interior measures 29"w x 22 1⁄8"d x 20"h. Two interior oven lights. Five nickel plated oven racks measure 28 1⁄4" x 20 1⁄2". Eleven position nickel plated rack guides with positive rack stops. Heated by electric solid sheath elements rated at 12 KW. Furnished with a two speed 1⁄2 H.P. oven blower-motor. Oven cool switch for rapid cool down. 208 or 240 volt, 60 Hz, 1 or 3 phase.
Exterior Dimensions:
40 1⁄4"w x 41 1⁄8"d (includes motor & door handles) 37 3⁄4"d (includes motor only) x 54 3⁄4"h on 23 3⁄4" legs with feet. 23 3⁄4" legs can adjust an additional 1" in length. Legs with casters are adjustable from 28" to 29 1⁄8" in length. NSF listed. UL listed. UL listed to Canadian safety standards
- VC4ED: Solid state temperature controls adjust from 150° to 500°F. 60 minute timer with audible alarm
- VC4EC: Computer controls with digital time and temperature readouts. 99-hour timer with audible alarm. Roast and Hold cycle. One hundred programmable menu selections. Shelf I.D. programming.
STANDARD FEATURES
- Stainless steel front, sides and top.
- Painted legs.
- Independently operated stainless steel doors with double pane windows.
- 12.5 total KW
- 1⁄2 H.P. two speed oven blower-motor
- Moisture vent damper control.
- Oven cool switch for rapid cool down.
- Porcelain enamel on steel oven interior
- Five nickel plated oven racks with eleven rack positions.
- One year limited parts and labor warranty.
