Energy‑Efficient Air Curtain for Restaurant Entrances
Keeps restaurant entrances climate‑controlled while blocking insects, improving energy efficiency and food safety.
Key Features
- Four ½ hp NEMA 1 TEAO motors (115 V/60 Hz, 1‑phase) deliver 5,541 cfm airflow for a 120"‑131" door opening up to 8 ft high.
- Aluminum cabinet with Pearl White powder‑coat finish provides corrosion‑resistant, fire‑retardant durability for indoor or outdoor use.
- cETLus and AMCA‑certified compliance meets UL 507, CSA 22.2 and ASHRAE 90.1 standards.
- Cleanable polyester filter is standard; optional washable aluminum or pleated paper filters are available for easy maintenance.
- Units up to 72" wide can be suspended without intermediate support; longer units require center support, with 2" side and 18" top clearance.
From The Manufacturer

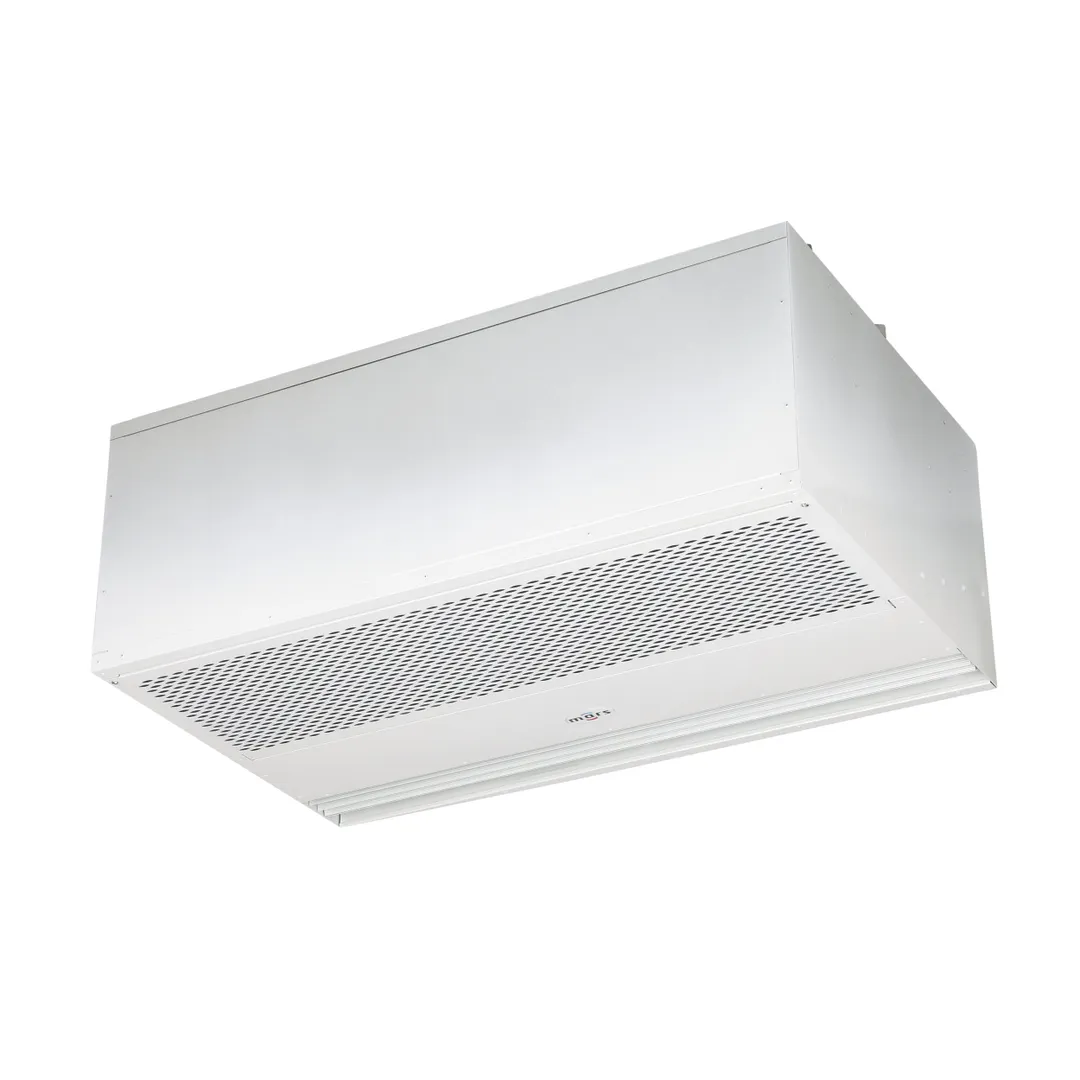

Phantom 10 air curtain for 120"W door, unheated, aluminum cabinet, Pearl White powder coat finish, (4) 1/2 HP motor, 115v/60/1-ph, cETLus
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
