Cleveland TRI-LEG/PEDESTAL, DIRECT STEAM
STANDARD FEATURES:
- Shall be CLEVELAND, Direct Steam Kettle, Trileg or Pedestal stationary, Model KD __ - _____ . 2⁄3 Steam Jacketed, Type 304 Stainless Steel with 50 psi Steam Jacket Rating on 80 - 100 gallon, 35 psi on125 gallon and larger. Supports to be Stainless Steel. Includes springassisted, Domed Cover and 2˝ Tangent Draw-off Valve; heavy re-enforced Rolled Rim. To operate, connect directly to a steam source supplying from 5 to 45 psi steam.
- Spring-assisted Cover: domed, hinged, onepiece rotatable (not available on KDL-250)
- Type 304 Stainless Steel construction, #4 finish on kettle and supports
- 2˝ diameter Tangent Draw-off Valve with Drain Strainer
- 50 psi Steam Jacket Rating on 25 - 100 gal. models, 35 psi Steam Jacket Rating on 125 - 250 gal. models
- 50 psi chrome plated Safety Valve on 25 - 100 gal. models,35 psi chrome plated Safety Valve on 125 - 250 gal. models
- Condensate Drain Valve with insulated handle
- For Tri-leg Models: Tri-leg supports of 1.63˝ O.D., Type 304 Stainless Steel tubular construction, with level adjustable Flanged Feet for Floor Bolting
- For Pedestal Models: Pedestal support of Type 304 Stainless Steel with .75˝ thick floor plate, (level adjustable for sloping floors), comes with Stainless Steel Collar for sealing
- Faucet Mounting Bracket
- Steam Control Inlet Valve
- Typical approvals include NSF and ASME
From The Manufacturer

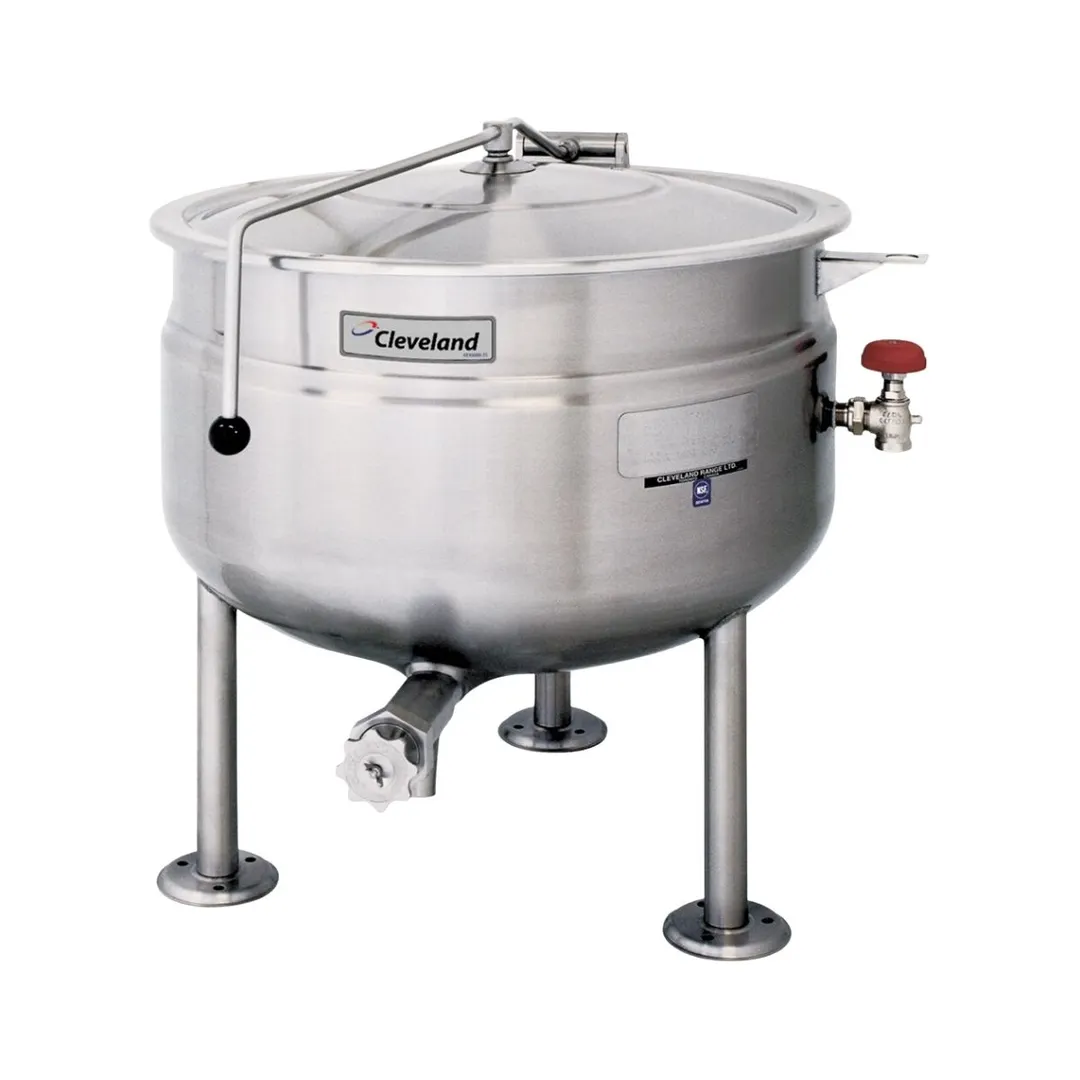

Short Series™ Steam Jacketed Kettle, direct steam, 60-gallon capacity, 34.8" rim height, full steam jacket design, open tri-leg base, 316 series stainless steel interior, solid state temperature controls, faucet mounting bracket, 2" tangent draw-off & drain strainer, steam control valve, spring assist cover, 50 psi rating
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
