Cleveland TRI-LEG/PEDESTAL, DIRECT STEAM
STANDARD FEATURES:
- Shall be CLEVELAND, Direct Steam Kettle, Trileg or Pedestal stationary, Model KD __ - _____ . 2⁄3 Steam Jacketed, Type 304 Stainless Steel with 50 psi Steam Jacket Rating on 80 - 100 gallon, 35 psi on125 gallon and larger. Supports to be Stainless Steel. Includes springassisted, Domed Cover and 2˝ Tangent Draw-off Valve; heavy re-enforced Rolled Rim. To operate, connect directly to a steam source supplying from 5 to 45 psi steam.
- Spring-assisted Cover: domed, hinged, onepiece rotatable (not available on KDL-250)
- Type 304 Stainless Steel construction, #4 finish on kettle and supports
- 2˝ diameter Tangent Draw-off Valve with Drain Strainer
- 50 psi Steam Jacket Rating on 25 - 100 gal. models, 35 psi Steam Jacket Rating on 125 - 250 gal. models
- 50 psi chrome plated Safety Valve on 25 - 100 gal. models,35 psi chrome plated Safety Valve on 125 - 250 gal. models
- Condensate Drain Valve with insulated handle
- For Tri-leg Models: Tri-leg supports of 1.63˝ O.D., Type 304 Stainless Steel tubular construction, with level adjustable Flanged Feet for Floor Bolting
- For Pedestal Models: Pedestal support of Type 304 Stainless Steel with .75˝ thick floor plate, (level adjustable for sloping floors), comes with Stainless Steel Collar for sealing
- Faucet Mounting Bracket
- Steam Control Inlet Valve
- Typical approvals include NSF and ASME
From The Manufacturer

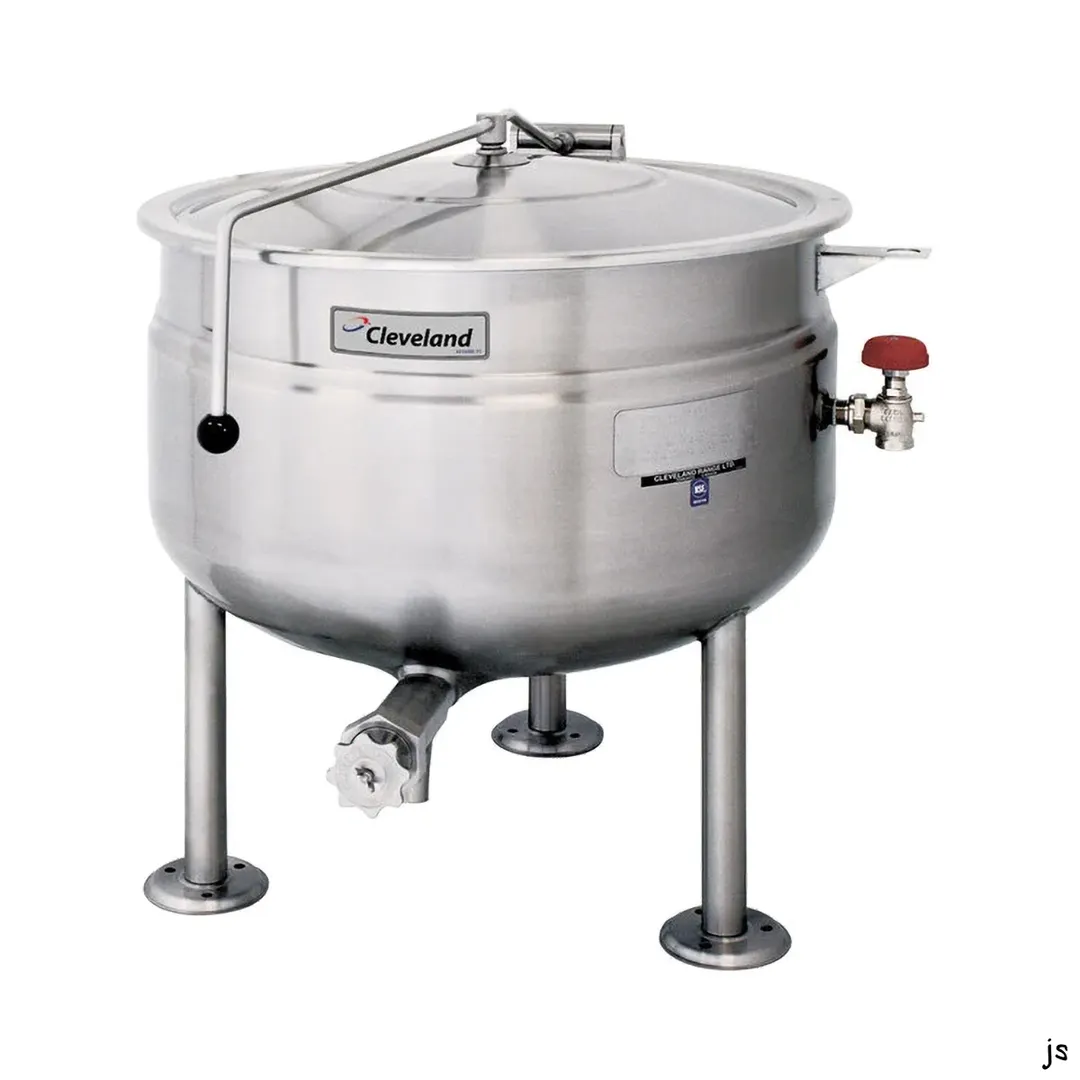

Short Series™ Steam Jacketed Kettle, direct steam, 80-gallon capacity, 34.8" rim height, full steam jacket design, open tri-leg base, 316 series stainless steel interior, solid state temperature controls, faucet mounting bracket, 2" tangent draw-off & drain strainer, steam control valve, spring assist cover, 50 psi rating
