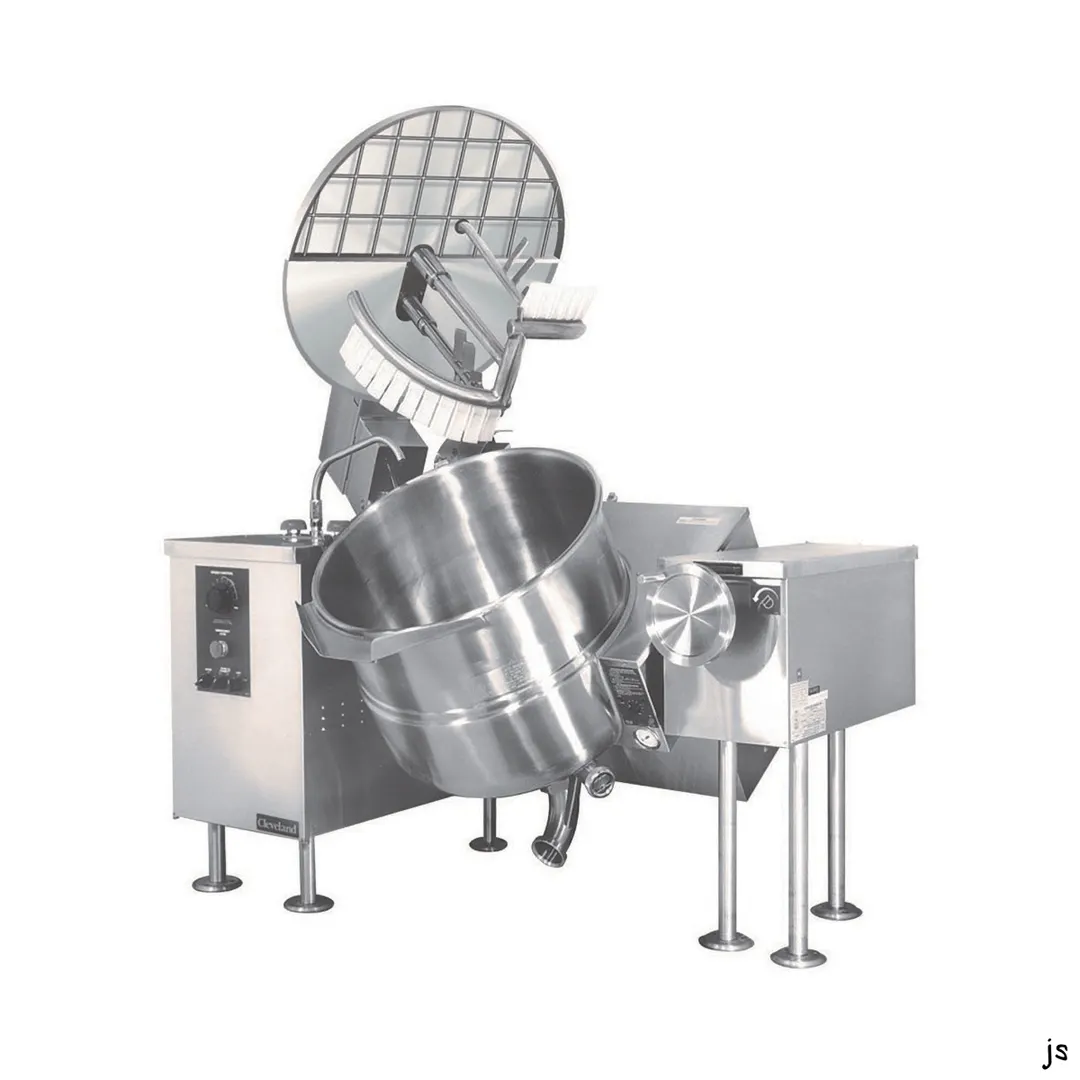

Cleveland MKGL60T 60 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle, Double Console, 190,000 BTU

STANDARD FEATURES:

• Cleveland Gas-Fired Tilting Vertical Mixer Kettle. MKGL-___T ___ gallons, 2/3 steam jacketed, 65% efficient forced air double pass heating system, 50 psi steam jacket rating, automatic ignition, solid-state splash-proof controls, 3˝ Diameter Butterfly Valve.
• High Efficiency (65%) Forced Air Double Pass Heating System. 140M BTU on 40 gallons, 190M BTU on 60 and 80 gallons
• Automatic Ignition System and 50 psi Steam Jacket Rating
• Insulated Heat Exchanger
• Type 304 Stainless Steel with #4 finish on kettle and supports
• Enclosed, Balanced 10 gauge Stainless Steel hydraulically operated mixer-bridge
• Steam Jacket permanently filled with treated distilled water
• Recessed, front-mounted Pressure/Vacuum Gauge
• Solid-State, precise temperature controls with less than 1˚ C temperature differences. LED indicator for Heat Cycle and Low Water Indicator, Power On/Off Switch
• Infinitely Variable Ratio Control between Scraper and Agitator. Agitator rotates from 0 to 8 times the speed of the Scraper. Infinitely Variable Scraper Speed Controls from 0 to 45 RPM
• 3-horsepower hydraulic powered Agitator, Scraper and Bridge Lift. Nylon Scraper Blades removable without tools
• 3˝ diameter Quick Opening Butterfly Valve
• Hot & Cold Water Faucet. (DPK)
• Tilt Mechanism of roller bearings and case hardened self-locking machined worm and segment gear
• Standard for natural gas operation, standard voltage is 120/208- 240, 3 phase
• Level adjustable flanged feet, Gallon markings on Scraper Shaft
• Typical approvals include AGA, CSA, CE, NSF and ASME
• Safety Cover and Screen included on Mixer Bridge
