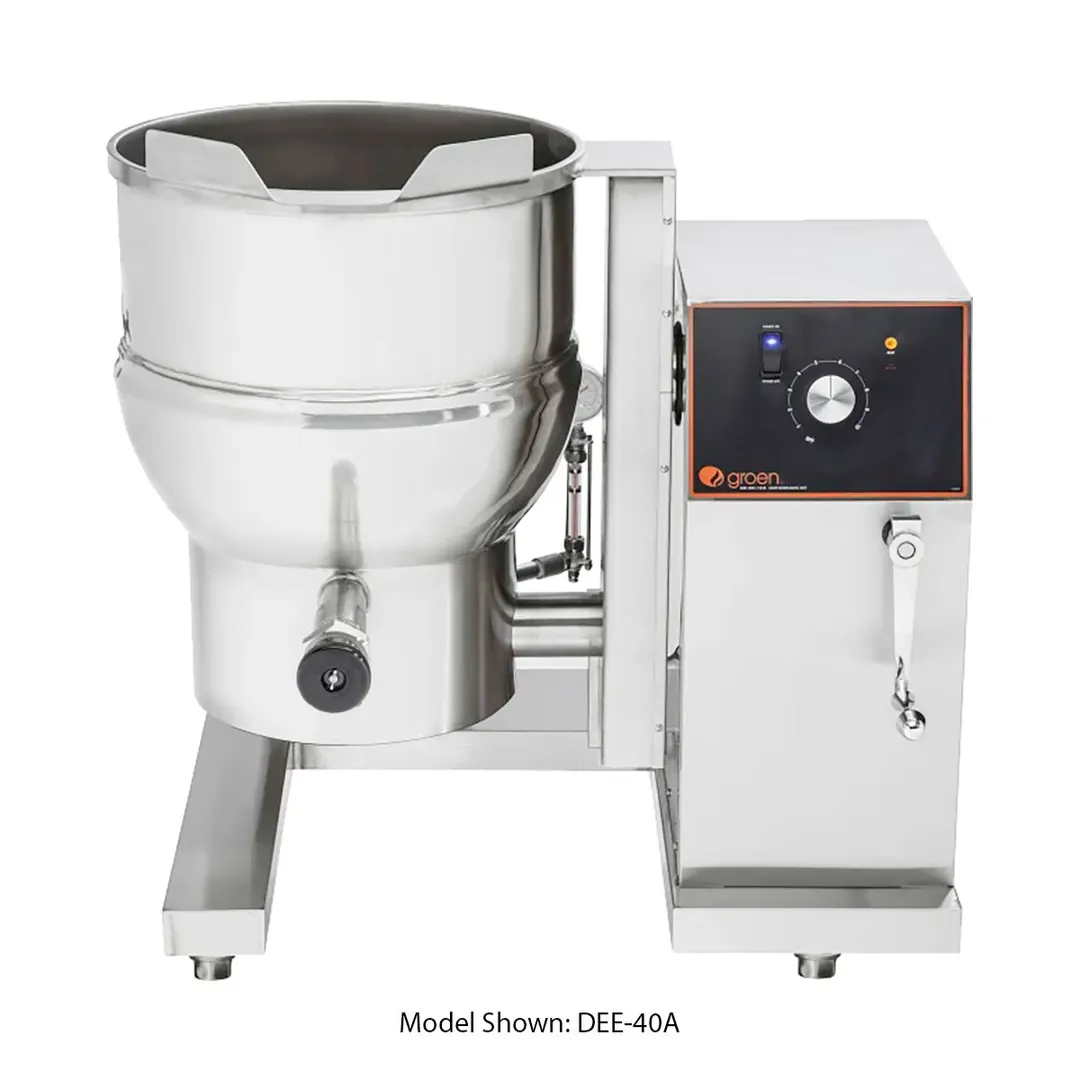

Groen DEE-20C2T 20 Gallon Floor Tilting 2/3 Steam Jacketed Electric Kettle, Cook2Temp Controls
Construction
Kettle interior shall be of type 316 stainless steel with solid one-piece welded construction. The console and all exposed surfaces shall be stainless steel. The kettle body shall be mounted in a heavy-duty stainless steel combination kettle support tilt trunnion, mounted to a polished stainless steel enclosed base. The base shall be have stainless steel tubular legs with adjustable bullet feet. The enclosed trunnion support shall have a smooth operating, self-locking tilt mechanism, with sanitary, water resistant IPX6-rated enclosure with interior readily accessible for installation or maintenance. The unit shall have a heavy reinforced bar rim with a welded-in butterfly shaped pouring lip for pouring control and durability. Designed for single point electrical connection.
Finish
Kettle interior shall be polished to a 180 emery grit finish. Exterior of kettle shall be finished to a bright high buff finish, ensuring maximum ease in cleaning and maintaining brilliant appearance.
ASME Code
Unit shall be ASME shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 50 PSI. Unit shall be UL listed for sale in USA and Canada. Unit shall be registered in Canada with a CRN number.
Sanitation
Unit shall be designed and constructed to meet NSF and known health department and sanitation codes, and be NSF listed.
Self Contained Steam Source
Kettle shall have an electrically heated self-contained steam source to provide kettle temperatures of 150°F to approximately 295°F. Unit shall be factory charged with chemically pure water and rust inhibitors to ensure long life and minimum maintenance.
Safety Systems
Safety systems to include kettle-mounted: pressure-vacuum gauge, pressure relief valve, pressure limit control, water sight glass; plus safety tilt and low-water cutoffs.
Performance Features

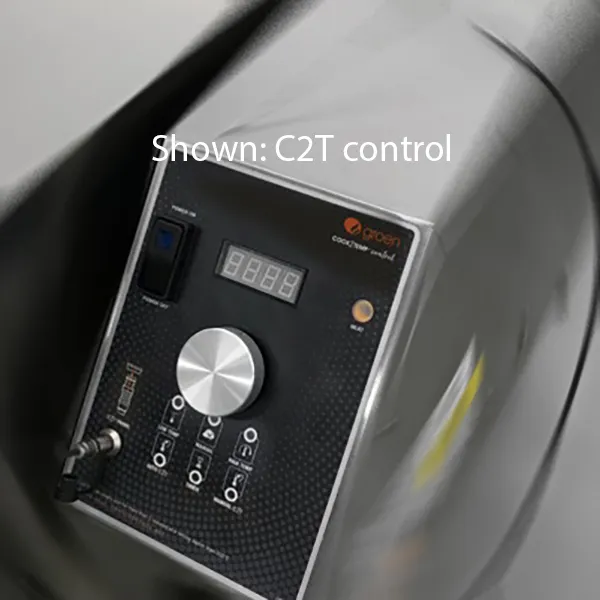

Unit shall be thermostatically controlled to automatically shut off when the desired temperature setting is reached and turn on when product temperature drops below setting. Smooth action manual tilt crank allows for easy pouring and transfer of kettle contents.
Drawoff
A 2” tangent drawoff is optional. If drawoff is specified, outlet shall be equipped with removable 1/4” perforated stainless steel strainer.
