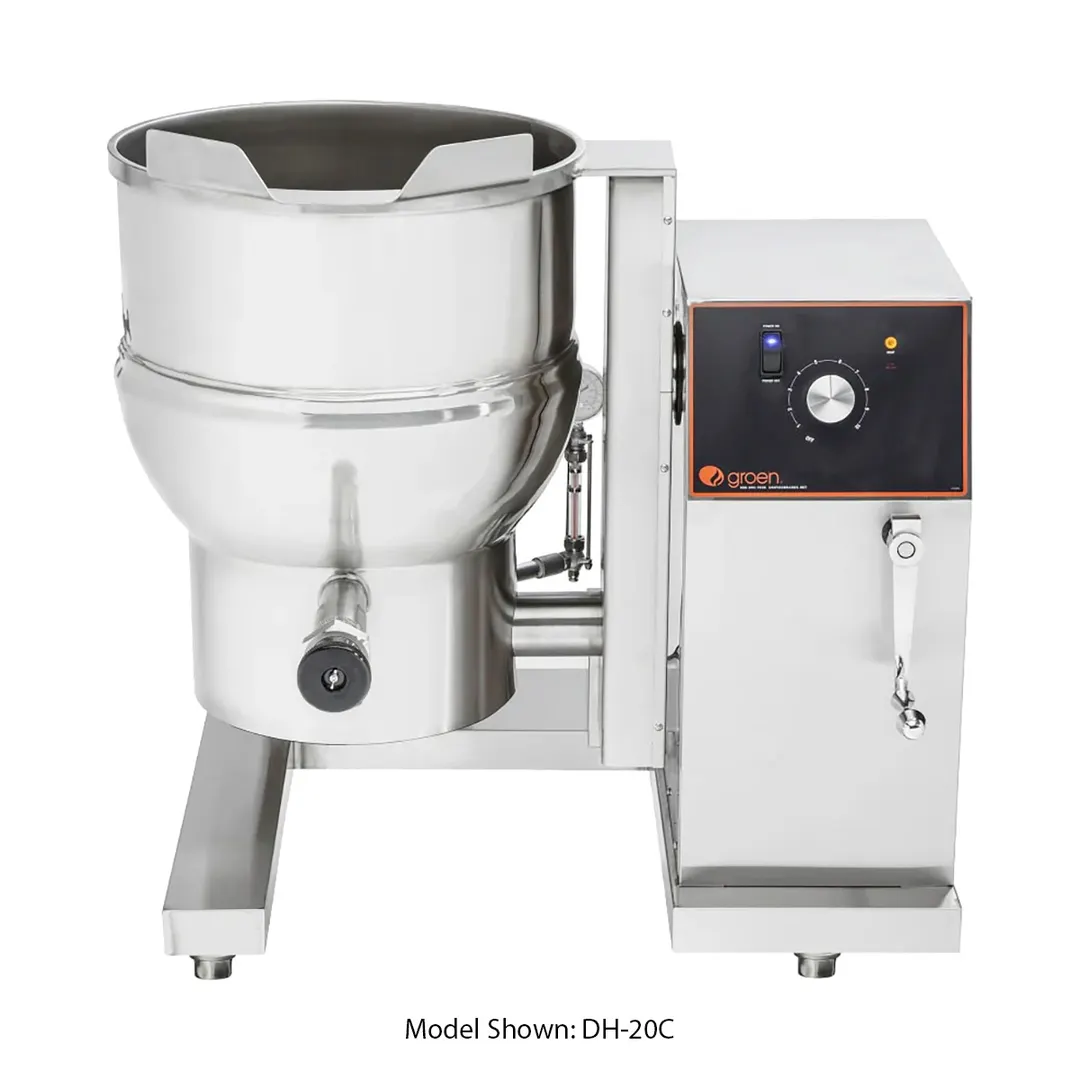

Groen DH-20C2T 20 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle w/ Crank Tilt, 72.000 Btu
Construction
Kettle interior shall be of type 316 stainless steel, solid one-piece welded construction. The console and all exposed surfaces shall be stainless steel. All controls shall be mounted in a water resistant IPX6-rated enclosure right of the kettle body. The kettle body shall be mounted in a heavy-duty stainless steel combination kettle support tilt trunnion, supported by the stainless steel enclosed base. The base shall have stainless steel tubular legs with height adjustable bullet feet. The trunnion support base shall contain a smooth operating, self locking manual crank tilt mechanism, accessible for installation or maintenance. Kettle body shall have a heavy reinforced bar rim with a welded in butterfly shaped pouring lip for maximum sanitation and durability. Faucet mounting bracket is standard.
Finish
Kettle interior shall be polished to a 180 emery grit finish. Exterior of kettle shall be finished to a bright high buff finish, ensuring maximum ease in cleaning and maintaining brilliant appearance.
ASME Code
Unit shall be ASME shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 50 PSI. Unit shall be design certified by CSA International. (Natural and Propane only.)
Sanitation
Unit shall be designed and constructed to meet NSF and known health department and sanitation codes and be NSF listed.
Self Contained Steam Source
Kettle shall have a gas-heated (natural, butane, propane) self-contained steam system to provide kettle temperatures of 150 to approximately 295˚F. Unit shall be factory charged with chemically-pure water and rust inhibitors to ensure long life and minimum maintenance.
Safety Systems
Safety systems to include kettle-mounted: pressure-vacuum gauge, pressure relief valve, pressure limit control, water sight glass; plus lowwater cutoff, gas regulator valve and kettle tilt automatic gas shutoff.
Performance Features
Patented fin tube burner assembly delivers 62-65% efficient combustion, depending on size. 20 Gallon Model has 72,000 BTU/HR firing rate with 44,140 BTU/HR into the product; 40 Gallon Model has 100,000 BTU/HR firing rate with 65,000 BTU/HR into the product, and 60 Gallon Model has 150,000 BTU/HR firing rate with 93,000 BTU/HR into the product. Electronic ignition to standing pilot is standard.
Drawoff
A 2” tangent drawoff is optional. If drawoff is specified, outlet shall be equipped with removable 1/4” perforated stainless steel strainer.
