Legion Model TLGB-F Insulated SelfContained Kettle

STANDARD FEATURES

304 stainless kettle liner
304L stainless kettle jacket
Kettle Protection System
Thermostat temperature control, 150˚F-260˚
Pressure relief valve
Air eliminator valve
Pressure gauge
Jacket-water fill and sight glass
Automatic low water cutoff and indicator light
Safety pilot control
Full body insulation (3” - 14”) between kettle jacket and outer casing
Electronic ignition, 120V standard
304 stainless outer casing seam welded to the 3” reinforced radius lip
304 stainless, seam welded control console
304 stainless, reinforced gear box
304 stainless, seam welded tubular frame construction
Self-locking, permanently lubricated, single reduction worm gear case
Adjustable flanged feet

From The Manufacturer

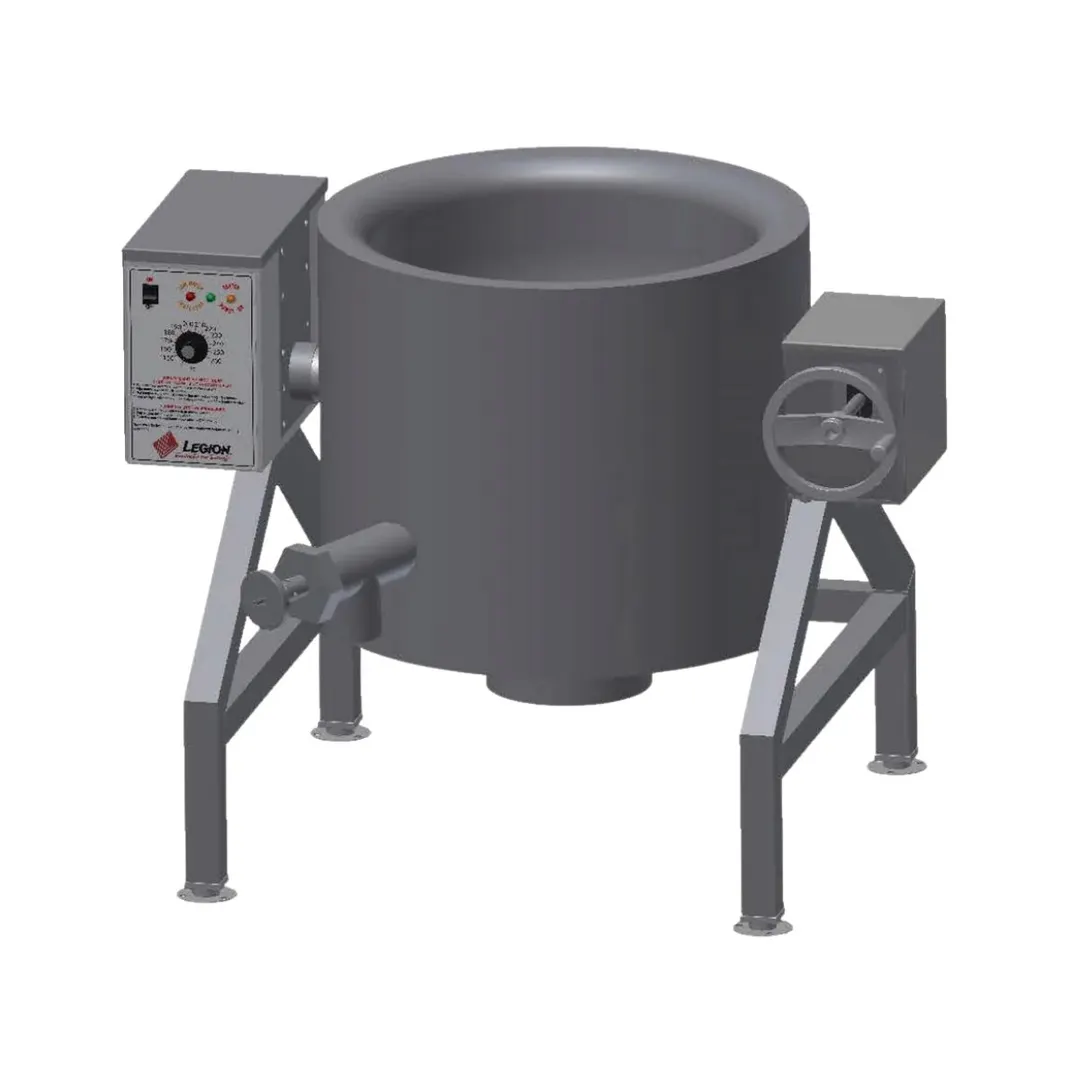

Low-Rim Tilting Kettle, Gas, insulated, self-contained, 30-gallon, 304 stainless steel liner, floor model, full jacket, 79,855 BTU

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.

Manufacturer	Legion
Model Number	TLGB-30F
Weight	555 lbs
Width	47.7″
Product Type	standard kettle
Installation Type	floor model
Power Type	gas
Operation Type	tilt
Jacket Type	full steam jacket
Number of Kettles	single
Tilt Type	manual tilt
Kettle Liner	304 stainless steel
Total BTU	79,855
Capacity (gallons)	30

	Legion TLGB-30F 30 Gallon Floor Tilting Full Steam Jacketed Gas Kettle, 79.855 BTU	Legion TLGB-40F 40 Gallon Floor Tilting Full Steam Jacketed Gas Kettle w/ 106.759 BTU	Legion TLGB-40 40 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle, 79.855 BTU	Legion TLGB-30 30 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle, 66.725 BTU	Legion TLGB-20F 20 Gallon Floor Tilting Full Steam Jacketed Gas Kettle, 66.725 BTU	Legion TLGB-60F 60 Gallon Floor Tilting Full Steam Jacketed Gas Kettle w/ 131.353 BTU
Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Total BTU	Total BTU 79,855	Total BTU 106,759	Total BTU 79,900	Total BTU 66,725	Total BTU 66,725	Total BTU 131,353
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)47.7	WIDTH (SIDE - SIDE)51.1	WIDTH (SIDE - SIDE)51.1	WIDTH (SIDE - SIDE)47.7	WIDTH (SIDE - SIDE)46.8	WIDTH (SIDE - SIDE)56.6
Manufacturer	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion
Capacity	Capacity 27 - 49 gallons	Capacity 27 - 49 gallons	Capacity 27 - 49 gallons	Capacity 27 - 49 gallons	Capacity 16 - 26 gallons	Capacity 50 - 79 gallons
Kettle Liner	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel
Jacket Type	Jacket Typefull steam jacket	Jacket Typefull steam jacket	Jacket Type2/3 steam jacket	Jacket Type2/3 steam jacket	Jacket Typefull steam jacket	Jacket Typefull steam jacket
Product Type	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle
Power Type	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas
Operation Type	Operation Typetilt	Operation Typetilt	Operation Typetilt	Operation Typetilt	Operation Typetilt	Operation Typetilt
Installation Type	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model
Number of Kettles	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle
Total BTU	Total BTU54.000 - 99.500	Total BTU100.000 - 140.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU100.000 - 140.500
Tilt Type	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt

Manufacturer	Legion
Model Number	TLGB-30F
Weight	555 lbs
Width	47.7″
Product Type	standard kettle
Installation Type	floor model
Power Type	gas
Operation Type	tilt
Jacket Type	full steam jacket
Number of Kettles	single
Tilt Type	manual tilt
Kettle Liner	304 stainless steel
Total BTU	79,855
Capacity (gallons)	30

	Legion TLGB-30F 30 Gallon Floor Tilting Full Steam Jacketed Gas Kettle, 79.855 BTU	Legion TLGB-40F 40 Gallon Floor Tilting Full Steam Jacketed Gas Kettle w/ 106.759 BTU	Legion TLGB-40 40 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle, 79.855 BTU	Legion TLGB-30 30 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle, 66.725 BTU	Legion TLGB-20F 20 Gallon Floor Tilting Full Steam Jacketed Gas Kettle, 66.725 BTU	Legion TLGB-60F 60 Gallon Floor Tilting Full Steam Jacketed Gas Kettle w/ 131.353 BTU
Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Total BTU	Total BTU 79,855	Total BTU 106,759	Total BTU 79,900	Total BTU 66,725	Total BTU 66,725	Total BTU 131,353
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)47.7	WIDTH (SIDE - SIDE)51.1	WIDTH (SIDE - SIDE)51.1	WIDTH (SIDE - SIDE)47.7	WIDTH (SIDE - SIDE)46.8	WIDTH (SIDE - SIDE)56.6
Manufacturer	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion	ManufacturerLegion
Capacity	Capacity 27 - 49 gallons	Capacity 27 - 49 gallons	Capacity 27 - 49 gallons	Capacity 27 - 49 gallons	Capacity 16 - 26 gallons	Capacity 50 - 79 gallons
Kettle Liner	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel	Kettle Liner304 stainless steel
Jacket Type	Jacket Typefull steam jacket	Jacket Typefull steam jacket	Jacket Type2/3 steam jacket	Jacket Type2/3 steam jacket	Jacket Typefull steam jacket	Jacket Typefull steam jacket
Product Type	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle	Product Typestandard kettle
Power Type	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas
Operation Type	Operation Typetilt	Operation Typetilt	Operation Typetilt	Operation Typetilt	Operation Typetilt	Operation Typetilt
Installation Type	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model	Installation Typefloor model
Number of Kettles	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle	Number of Kettlessingle
Total BTU	Total BTU54.000 - 99.500	Total BTU100.000 - 140.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU100.000 - 140.500
Tilt Type	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt	Tilt Typemanual tilt
