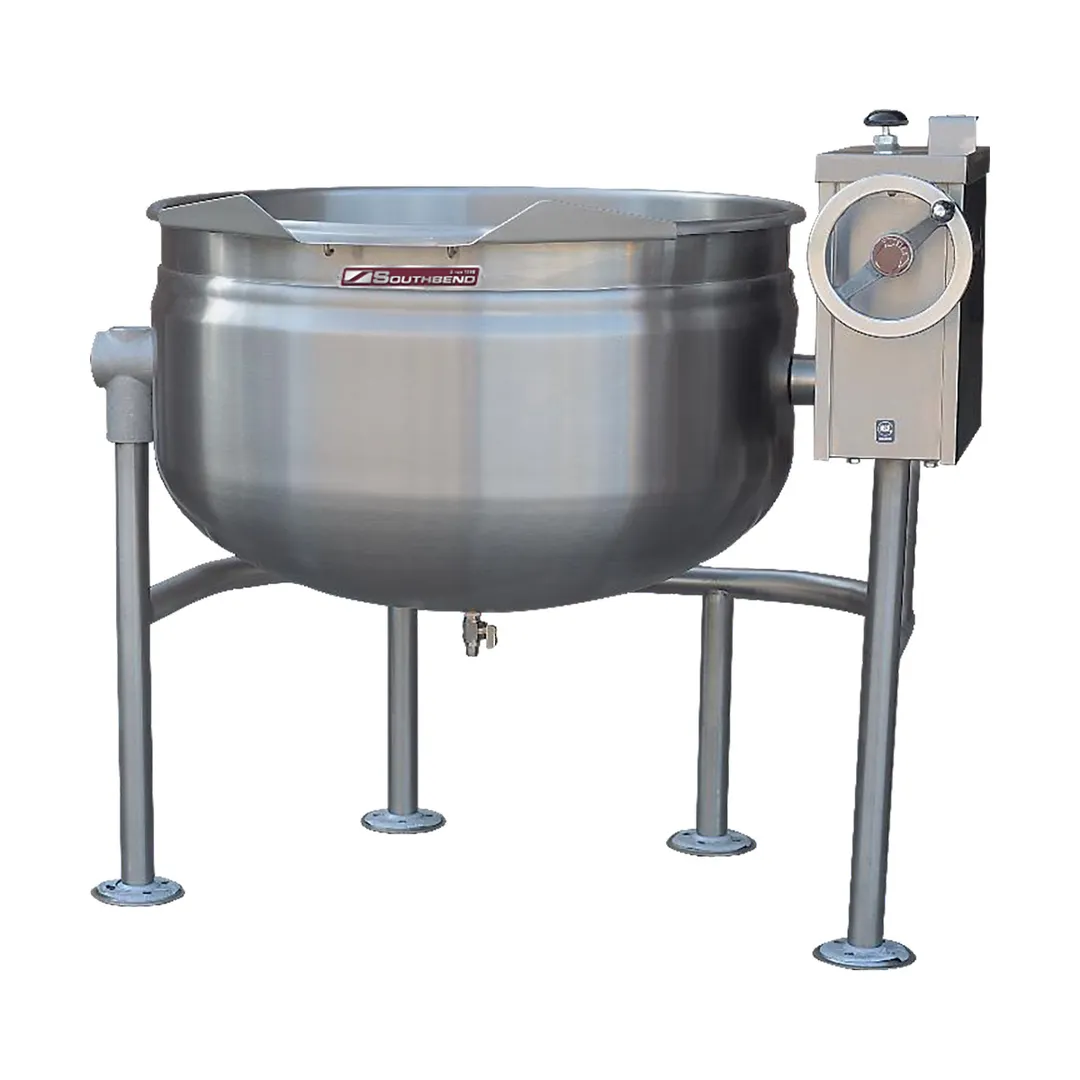

Southbend KDLT-30F Tilting Direct Steam Kettle

Standard Construction Specifications

• Shall be a Southbend Steam model KDLT-20F, KDLT-30F, KDLT-40F, KDLT-60F, KDLT-80F, or KDLT-100F, direct steam connected full jacketed leg tilting kettle.
• A double wall kettle interior shall form a steam jacket around the kettle.
• The bottom of the kettle shall be of hemispherical design for superior heat circulation.
• The mounting frame of stainless steel pipe shall support the kettle and tilt console and conceal the steam piping, house the steam control valve and tilt mechanism.
• Each leg shall be fitted with a 4 hole adjustable flanged foot for securing to the floor.
• The tilt mechanism shall permit the kettle to tilt forward a full 90° for complete emptying.
• The tilting mechanism shall be self-locking for positive stop action.
• Construction shall be all welded #4 finish stainless steel type 304.
• The kettle liner shall be standard 316 for high acid content cooking.
• Faucet bracket standard.
