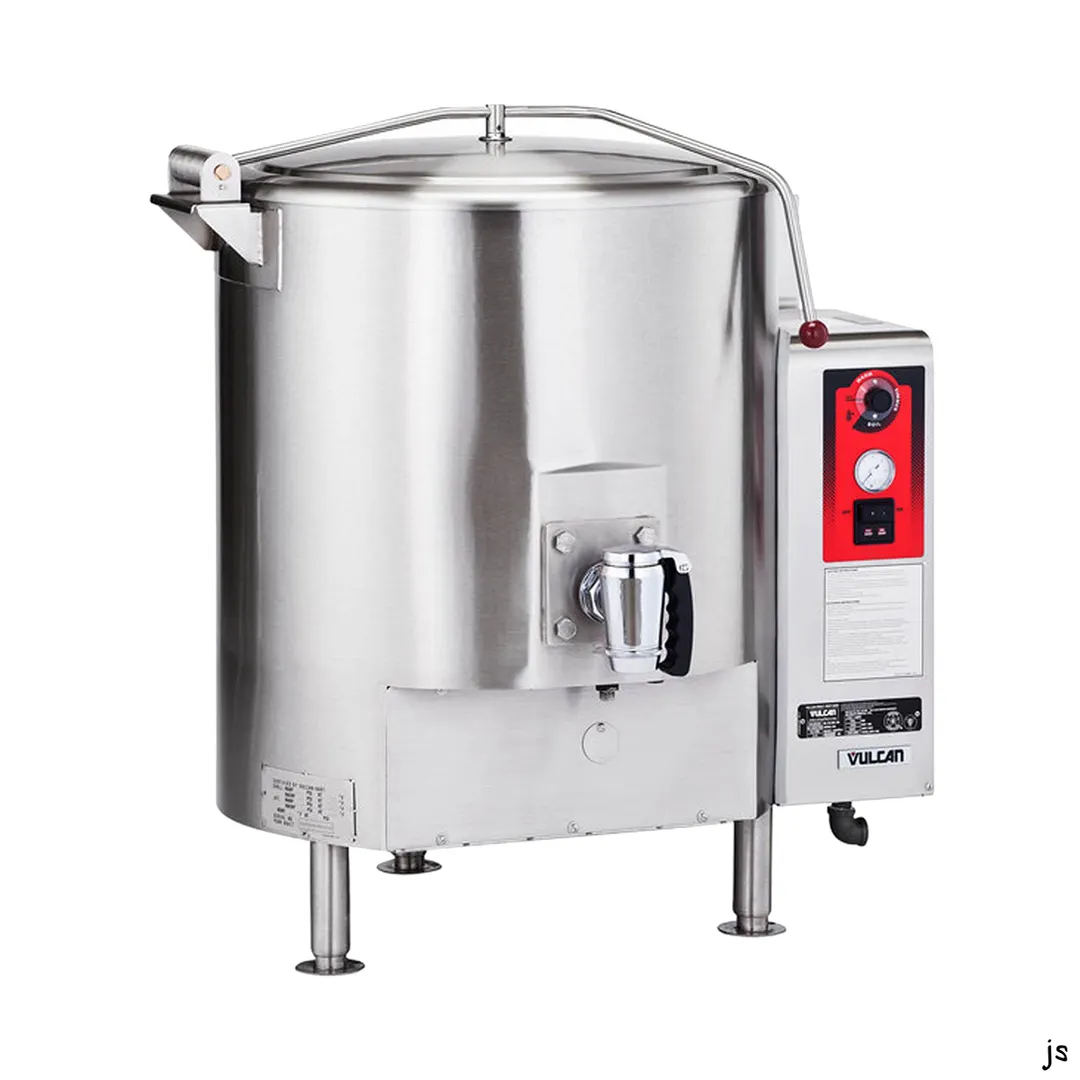

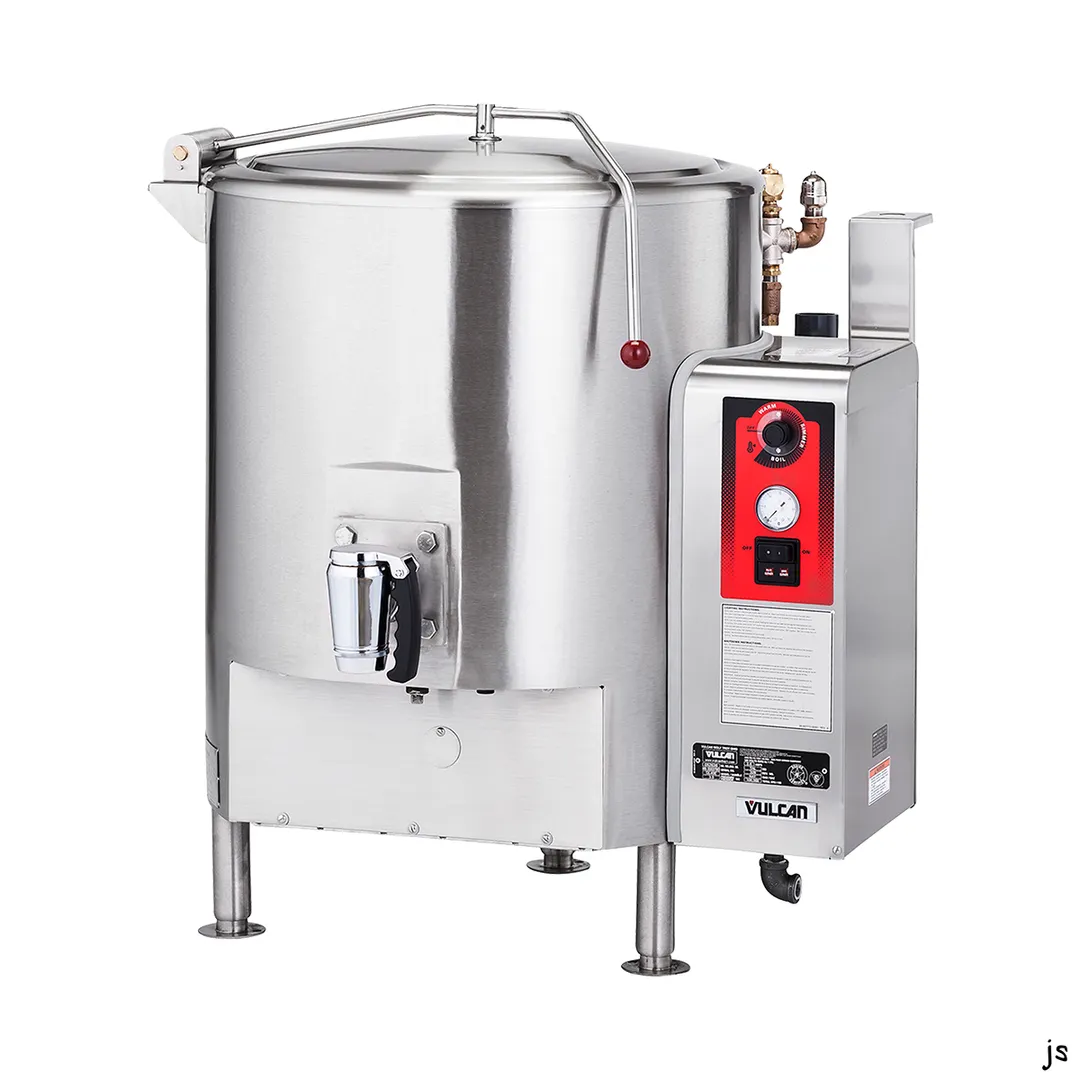

Vulcan GT100E Stationary Gas Kettle
Vulcan GT100E Standard Features
- Kettle fully steam jacketed.
- Mounted on stainless steel 2" diameter legs with adjustable flange feet.
- 316 Series stainless steel liner.
- Reinforced hinged stainless steel cover with condensate ring and drop down lift handle.
- Kettle interior bottom sloped to front for smooth product flow through a mounted, tapered, plug type food product draw-off valve of standard 2" diameter.
- Draw-off opening strainer.
- Graduated measuring rod.
- Faucet bracket.
- Vacuum pressure relief valve. 15 PSI relief valve. Low water cut-off control. Pressure limit switch and pressure gauge.
- Thermostat with a combination gas control valve and electronic ignition.
- One year limited parts and labor warranty.
- Second year extended limited parts and labor warranty.
Vulcan GT100E Specifications
- CAPACITY: 100 gallons, 379 liters
- BTU/HR. INPUT: 135,000
- Weight: 944 lbs
- Width: 58.5"
- Height: 49"
- Depth: 48"
- Base: tri-leg
- Kettle Liner: 316 stainless steel
- Kettle Jacket: full jacket
From The Manufacturer
Fully Jacketed Stationary Kettle, Gas, 100-gallon capacity, spring assisted hinged cover with heavy duty pivot assembly, 2" plug draw-off valve with perforated strainer, graduated measuring rod, faucet bracket, stainless steel construction with 316 series stainless steel liner, flanged feet, electric ignition, 135,000 BTU
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
