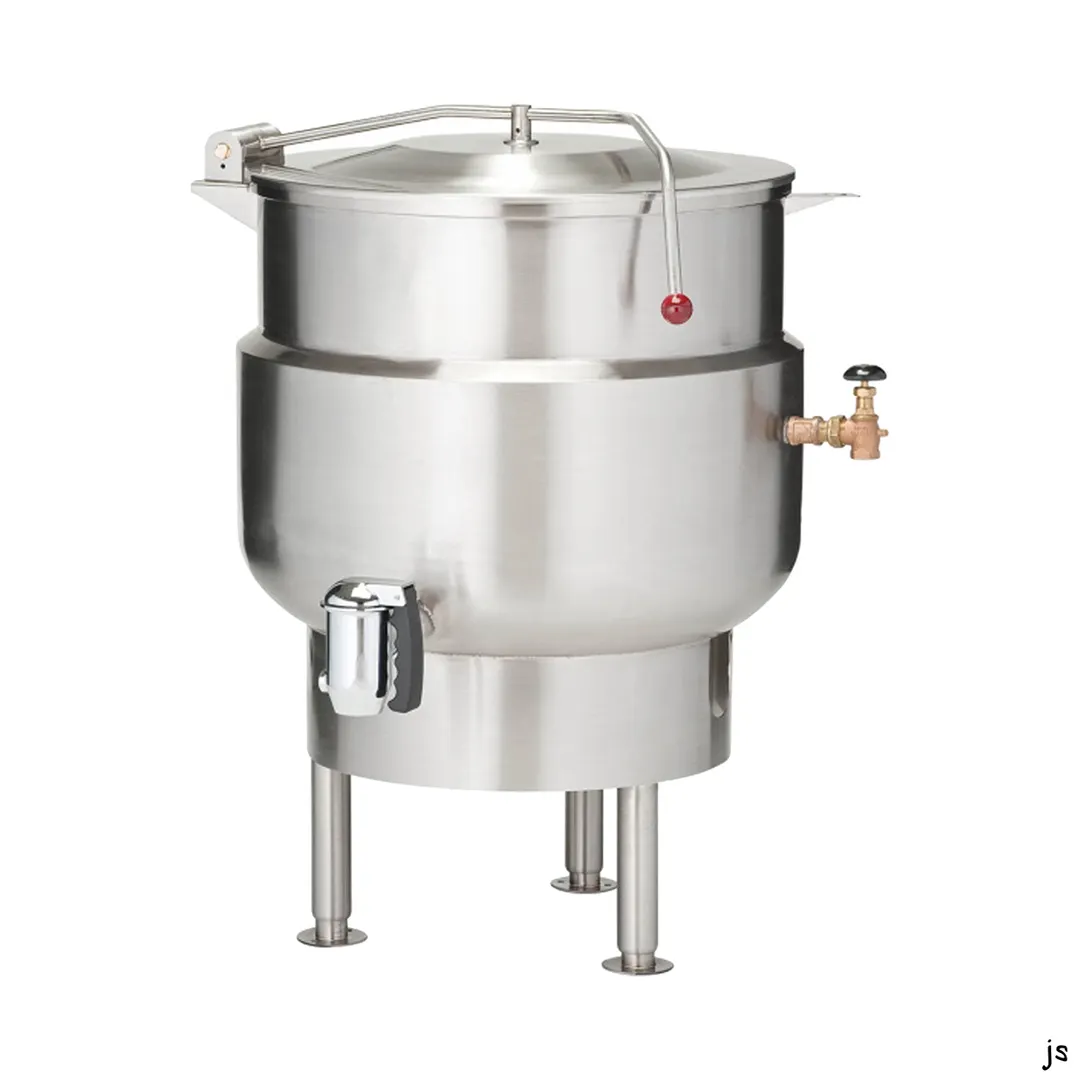

Vulcan K40DLT Tilting Direct Steam Kettle
Vulcan K40DLT Standard Features
- Direct steam, stainless steel, 2⁄3 jacketed floor mounted tilting steam kettle.
- Ellipsoidal bottom kettle liner formed and fully welded standard type 316 and type 304 stainless steel exterior.
- Bar rim (1⁄4 x 5⁄8 inch 20 gallons) (3⁄8 x 1 inch 40 gallons and greater).
- Embossed gallon/liter markings.
- 50 psi (3.4 kg/cm2) steam jacket rating.
- Stainless steel enclosure for steam control valve, selflocking tilt mechanism and faucet bracket.
- Steam control assembly includes condensate return line strainer and safety valve steam trap.
- Kettle tilts forward 90° to completely empty.
- Tubular stainless steel legs with flanged feet.
- One year limited parts and labor warranty.
Vulcan K40DLT Specifications
- TRUE WORKING CAPACITY: 40 gallons/152 liters
- Weight: 332 lbs
- Width: 41.8"
- Height: 36.1"
- Depth: 41.7"
- Capacity: 30 - 45 gallon
- Tilt: manual tilt
- Base: tri-leg
- Kettle Liner: 316 stainless steel
- Kettle Jacket: partial jacket
From The Manufacturer
Tilting Kettle, Direct, 40-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, manual tilt, faucet bracket on tilting console, stainless steel construction, tri-leg base, steam control assembly, 50 psi, 1.0 BHP
