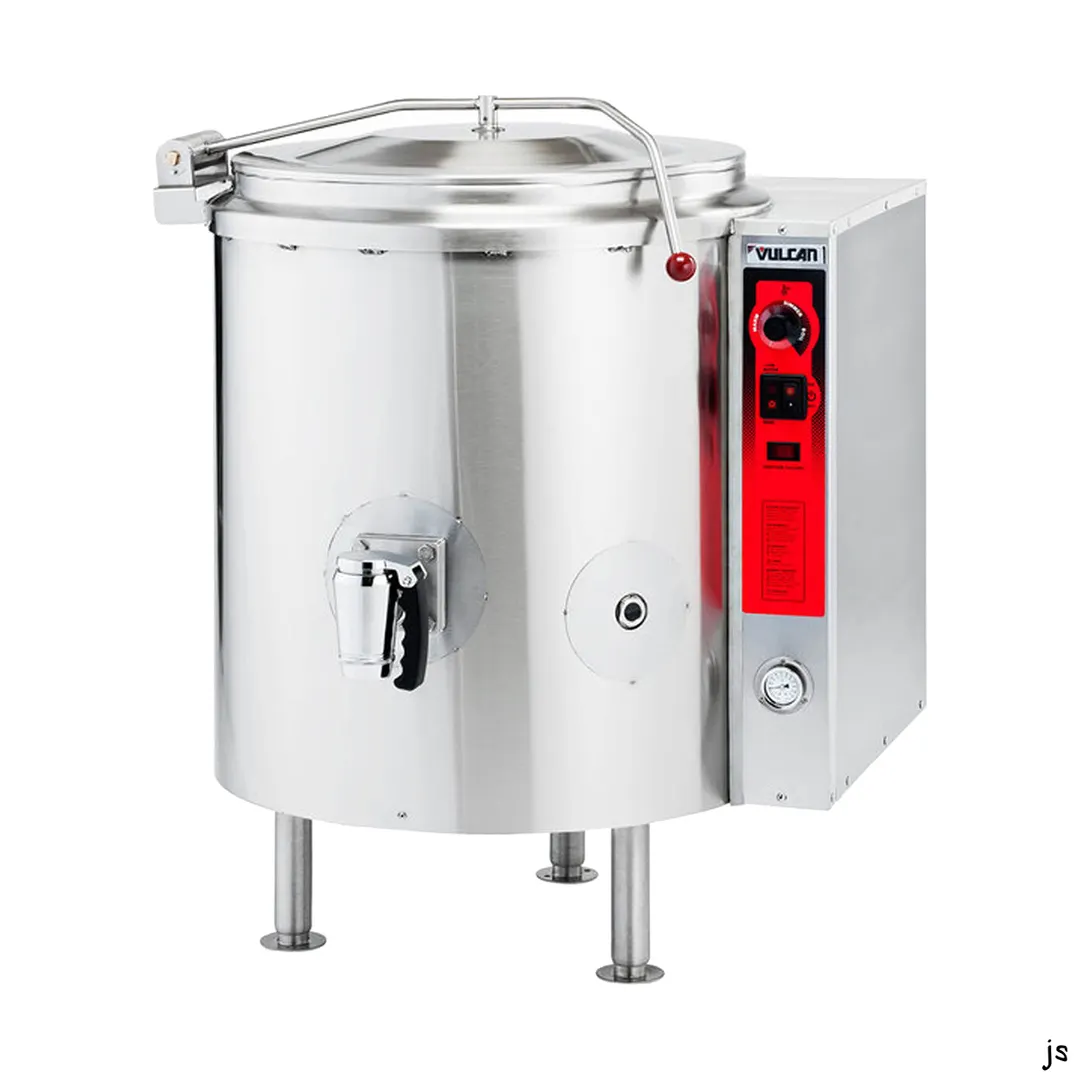

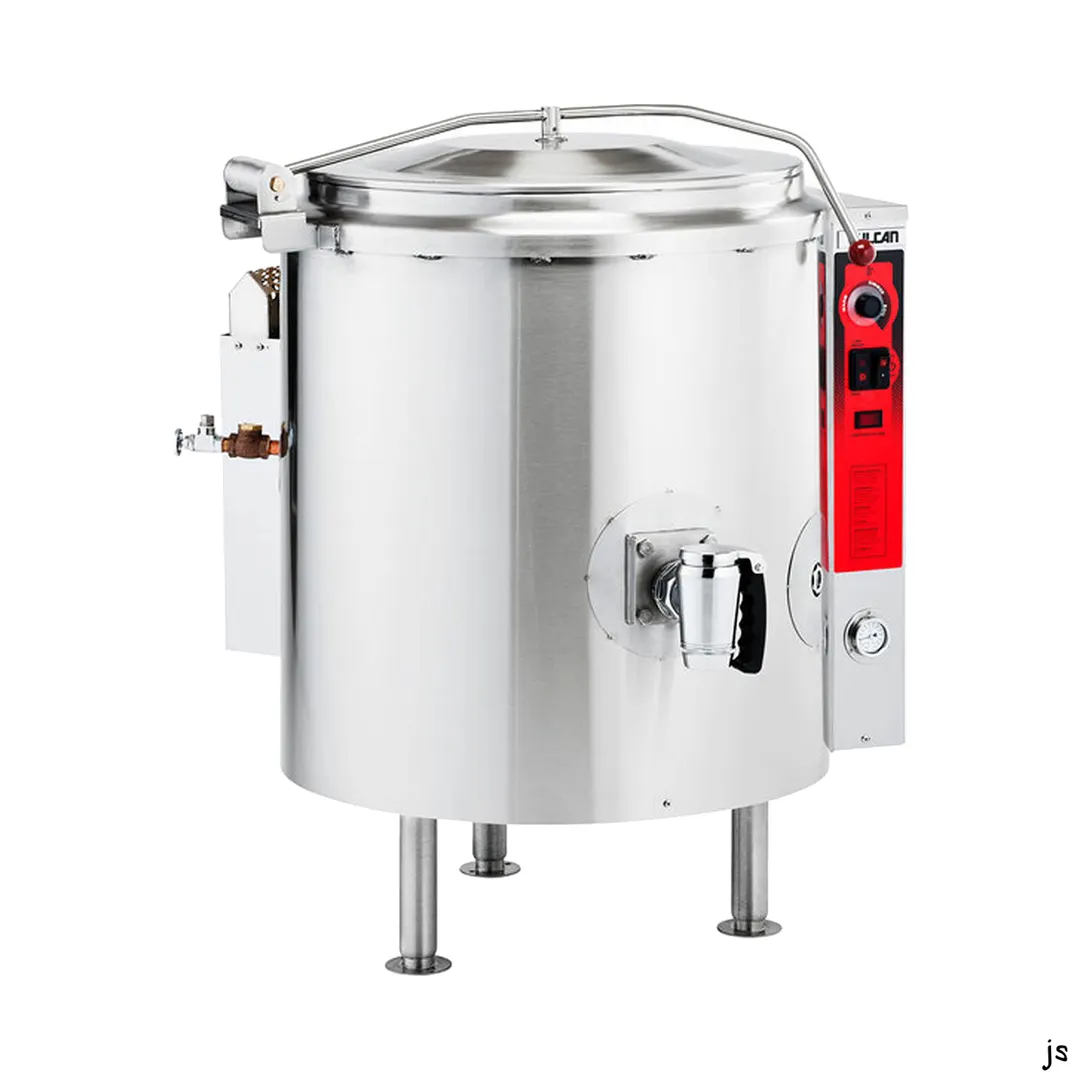

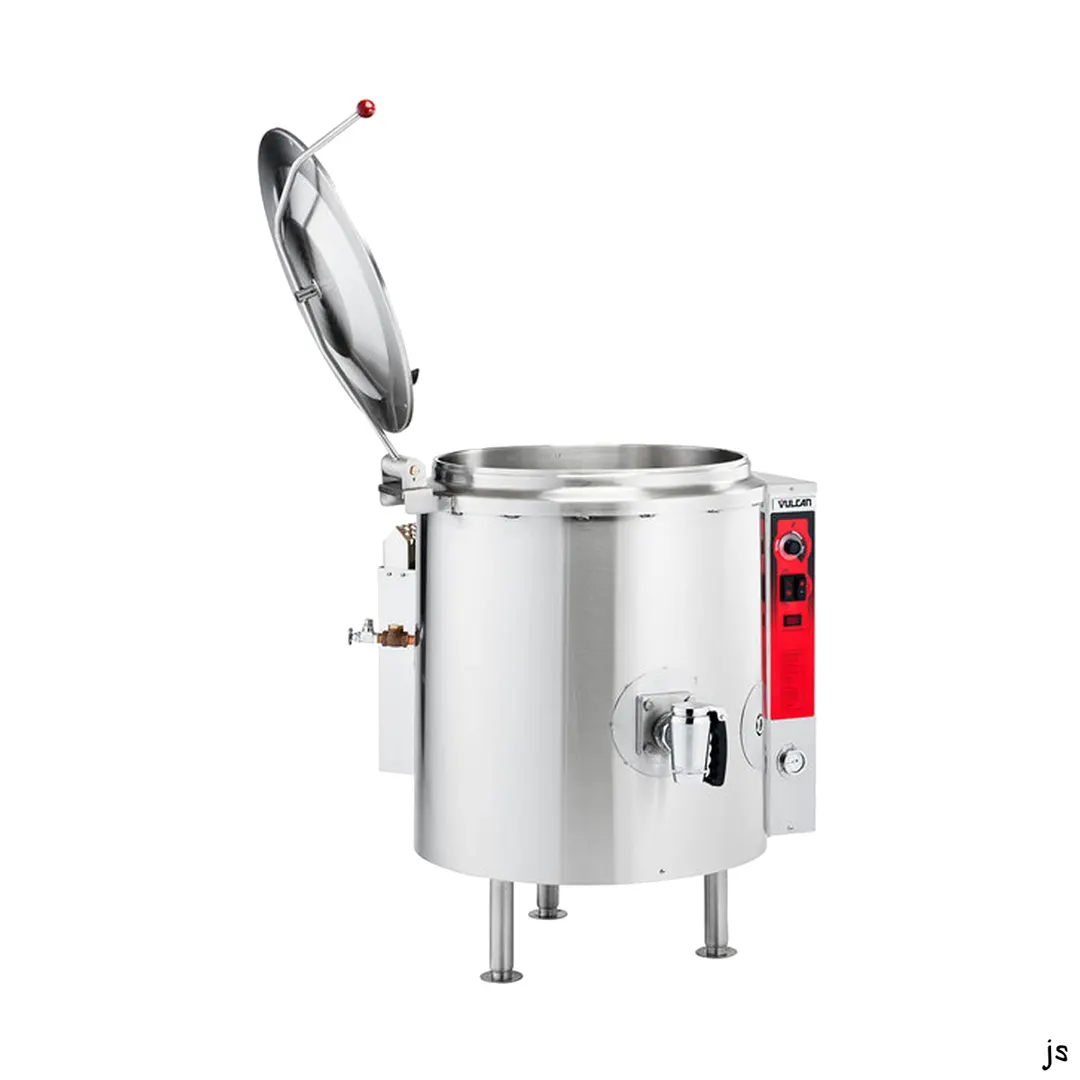

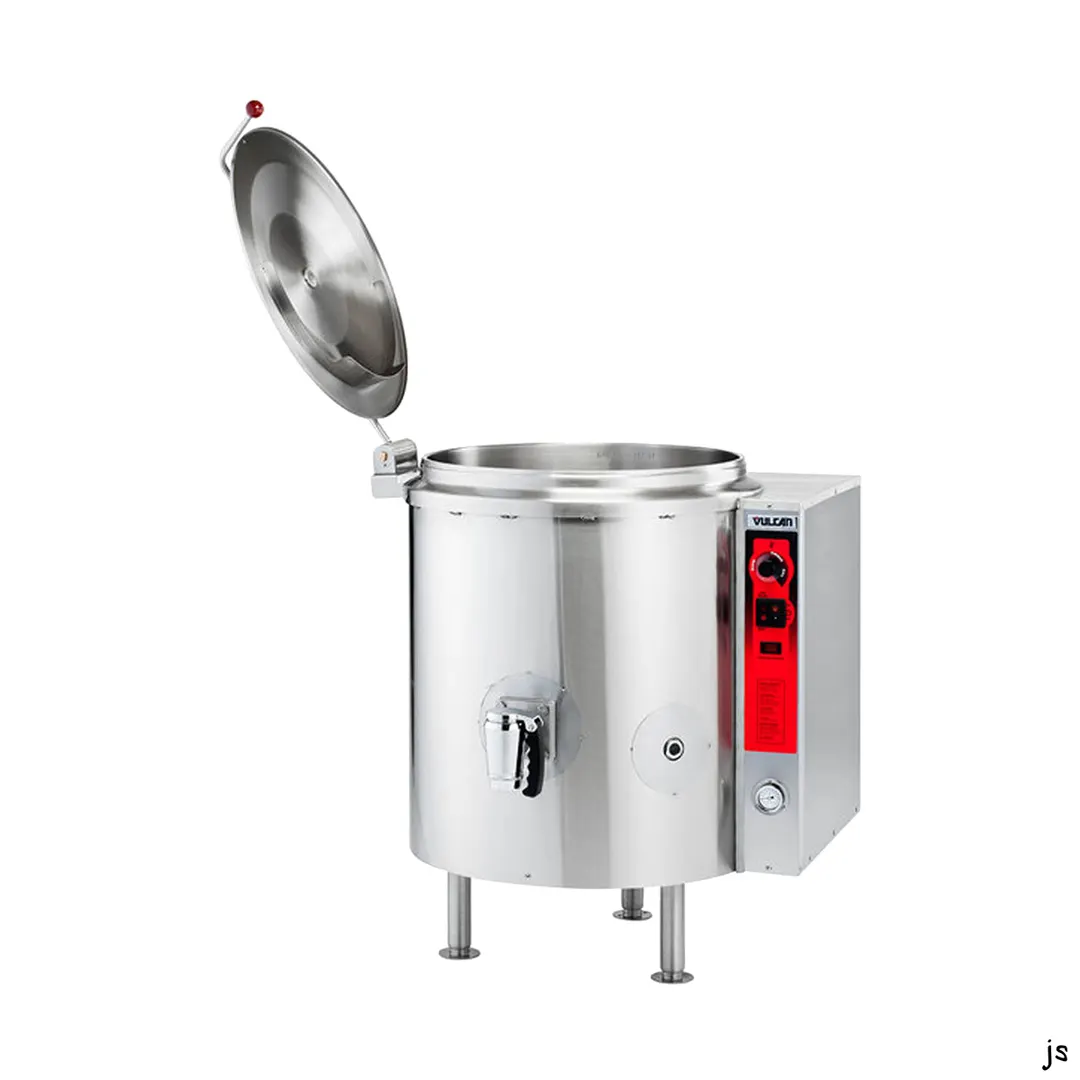

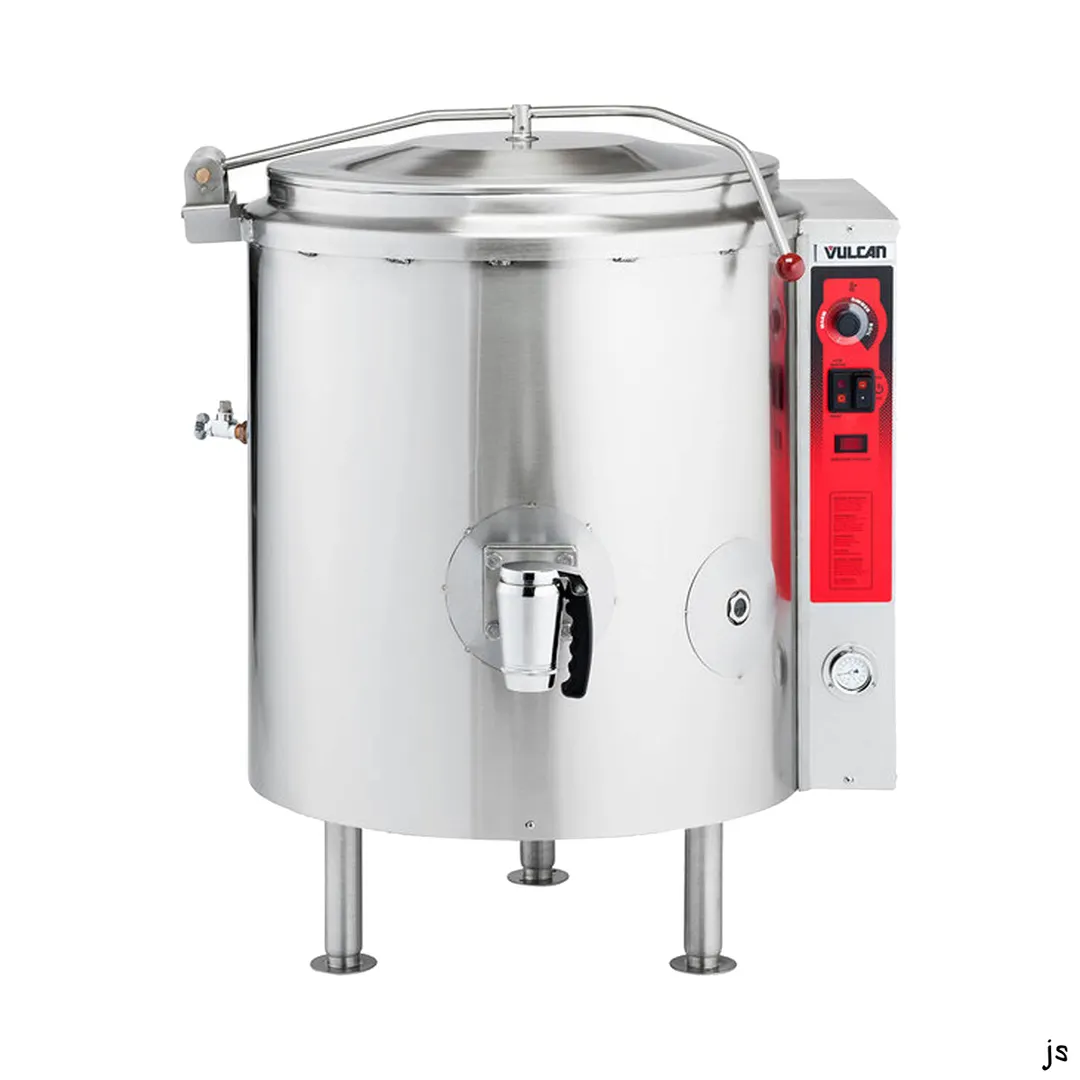

Vulcan K60GL Stationary Gas Kettle
Vulcan K60GL Standard Features
- Gas self-contained, stainless steel, 2⁄3 jacketed floor mounted stationary steam kettle.
- Ellipsoidal bottom kettle liner formed and fully welded standard type 316 and type 304 stainless steel exterior.
- Heavy bar rim (1⁄4 x 5⁄8 inch 20 gallons) (3⁄8 x 1 inch 40 gallons and greater).
- Embossed gallon/liter markings.
- Faucet bracket.
- 50 psi (3.4 kg/cm2) steam jacket rating.
- Spring assist hinged stainless steel cover with condensate ring and drop down lift handle.

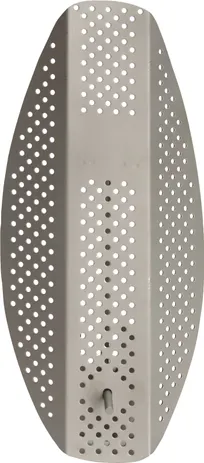

- Two inch compression tangent draw-off valve with perforated strainer.
- Tubular stainless steel legs with flanged feet.
- Stainless steel enclosure for “water resistant” controls.
- Controls include a power switch, power “on” light, solid state temperature control, vacuum pressure gauge, pressure relief valve, low water light and low water shut-off.
- Elevation from sea level to 8,999 feet standard, for higher elevation consult factory.
- One year limited parts and labor warranty
Vulcan K60GL Specifications
- TRUE WORKING CAPACITY: 60 gallons/227 liters
- Weight: 950 lbs
- Width: 40.9"
- Height: 39.5"
- Depth: 41.45"
- Capacity: 60 gal
- Kettle Liner: 316 stainless steel
- Kettle Jacket: partial jacket
From The Manufacturer
Stationary Kettle, Gas, 60-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, spring assisted hinged cover with heavy duty pivot assembly, 2" compression draw-off valve with perforated strainer, faucet bracket, stainless steel construction, 100,000 BTU
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
