Cleveland FLT0040-KIT for Steam Equipment Water Filtration System
Standart Features
- Patented scale inhibiting technology, helps protect equipment against scale and corrosion for the rated capacity of the system
- Reduces maintenance frequency and cost, and extends equipment life.
- Gradient-density sediment filtration protects against dirt, rust and other debris.
- FLT0014 cartridge - Activated carbon filtration protects equipment against corrosive chlorine.
- FLT0018 cartridge - Catalytic carbon provides added protection against chloramines when present in water supplies and IsoNet provides scale inhibition.
- New manifold design provides fewer possible leak points.
- Sturdy, powder-coated mounting bracket and multi-function valve simplify installation.
- Multi-function valve provides: - Shutoff valve for quick and simple filter replacements - System bypass valve for easy system maintenance - Flush port to flush cartridges after installation
- Built-in pressure gauge allows visual monitoring of when filters need to be changed.
- Utilizes cartridges that make changing filters quick, easy and sanitary.
Installation and Operating Tips
- Feed-water connection to system should be COLD only.
- Do not exceed system specifications for temperature and pressure.
- Allow 3" clearance below system for filter cartridge removal and cartridge replacement.
- To be used for treated water connection only.
- Detailed installation, operation and maintenance manual included with each system.
- Change cartridges on a regular six (6) month preventative maintenance program.
- Change cartridges when capacity is reached or when flow becomes too slow.
- Always flush the filter cartridge at time of
- installation and cartridge change.
- Service Flow Rate: 2.5 gpm (9.5 lpm)
- Rated Capacity: 20,000 gals. (75,708 L)
From The Manufacturer

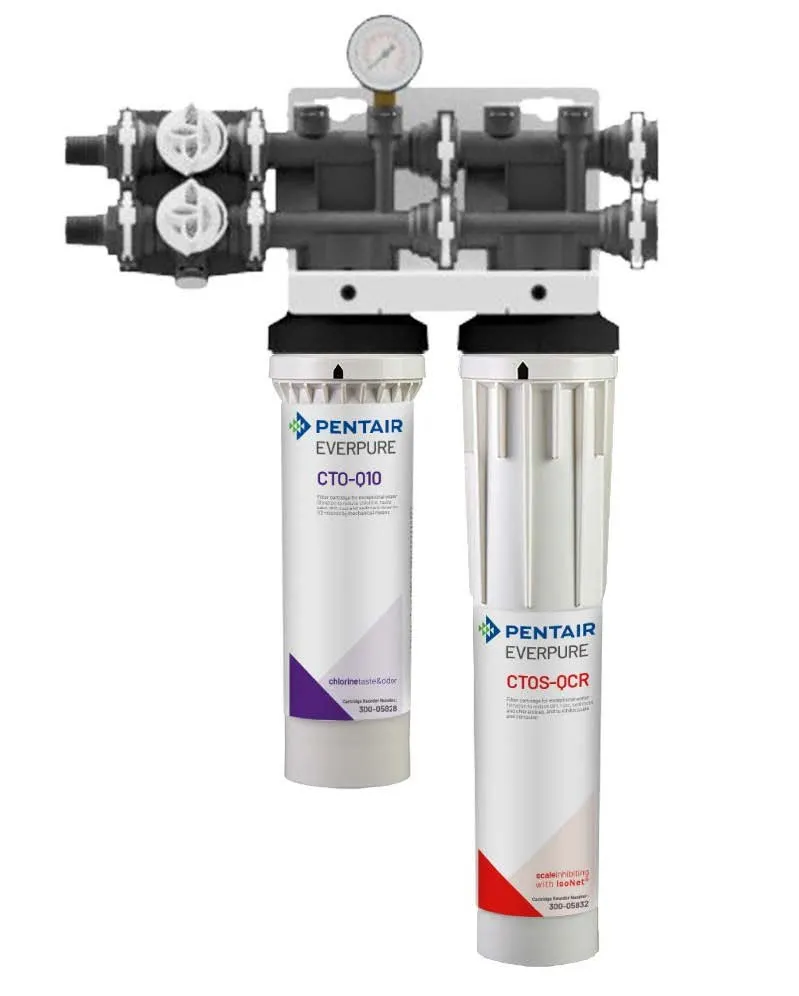

Water Treatment Filtration Kit, with cartridge replacements - Includes: (1) FLT0040 Water Filter System with (3) FLT0014 Cartridges & (3) FLT0018 Cartridges
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
