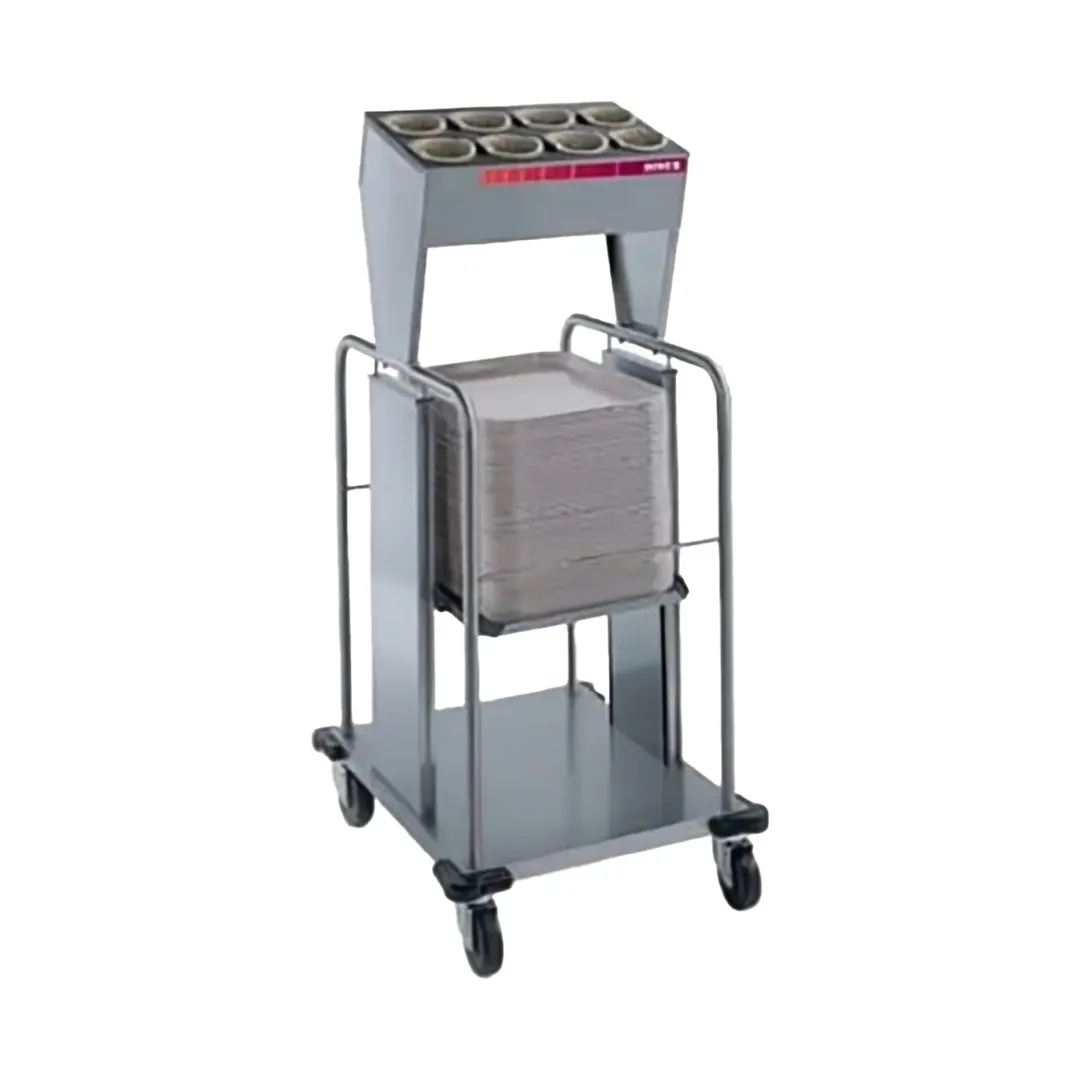

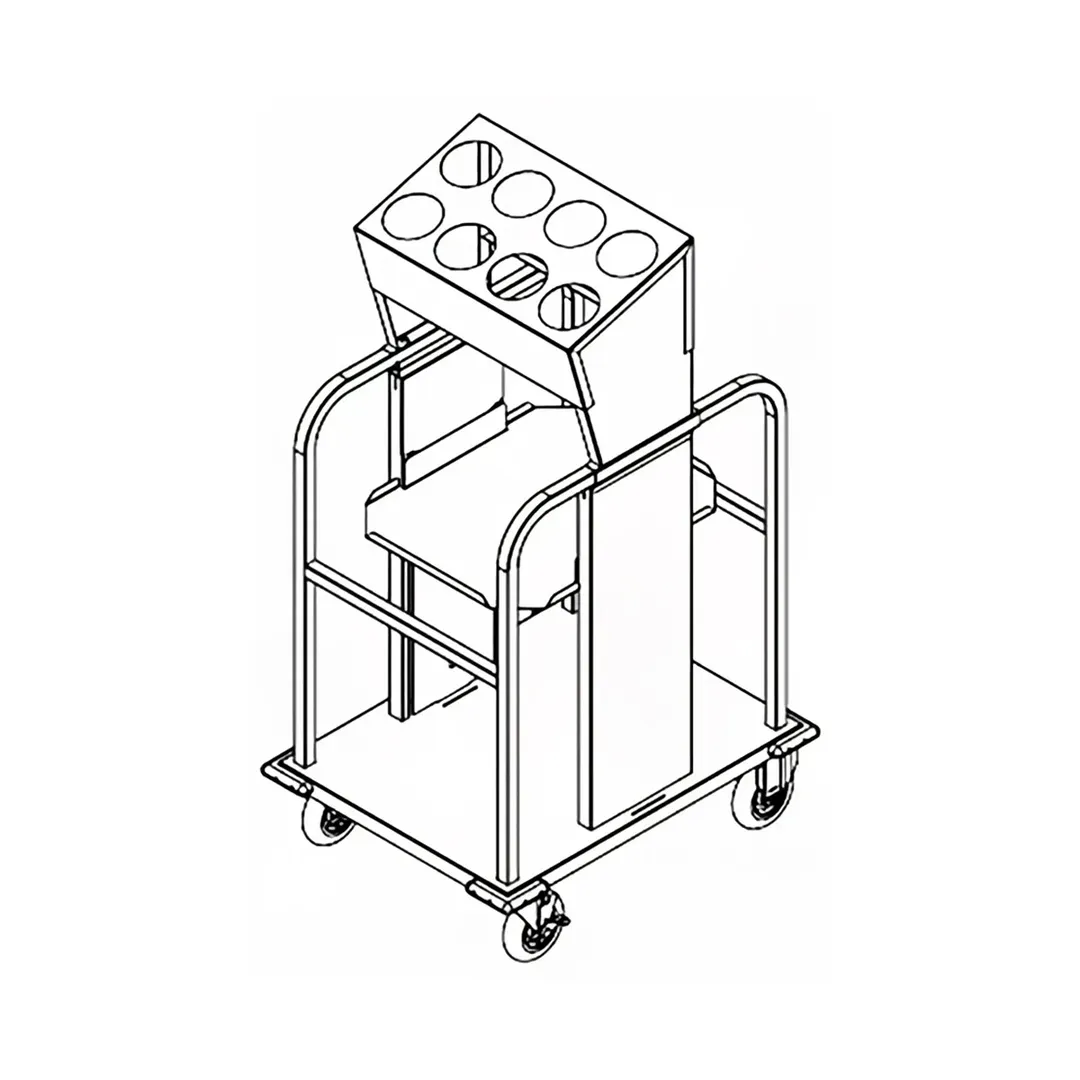

Dinex DXPIDTS1S1622 Mobile Tray & Silverware Dispenser with 8-Cylinder

Application

These self-leveling mobile tray and silver dispensers are offered in two styles: Single stack with eight silverware holders, or double stack with sixteen silverware holders. Each stack holds 150 trays. These self-leveling mobile tray and silver dispensers can be found in tray lines or any place your needs require.

Construction

• The lifting mechanisms are constructed of type 304 stainless steel with all exposed parts having a No. 4 finish. The Mobile Tray and Silver Dispenser is equipped with self-lubricating delrin wheels and a full complement of stainless steel extension springs which can be easily disconnected to adjust the lifting rate.
• A removable stainless steel carrier tray provides bottom support for trays being dispensed.
• The base is fabricated from 18-gauge type 304 stainless steel and reinforced with 16-gauge stainless steel angles. The tubular frames are fabricated from stainless steel tubing and securely welded to stainless steel angles on underside of base. The tubular frames are reinforced by horizontal 3/8” diameter type 304 stainless steel rods welded to each vertical frame. Four 5” heavy-duty non-marking swivel casters (2 with brakes) are securely mounted to the base and a non-marking bumper is mounted at each corner.

Standard Features

• Stainless steel construction including stainless steel extension springs for long lasting dependable service.
• Patented self-leveling mechanism lifts out for easy cleaning.
• Field adjustable to accommodate different weights.
• Top mounted silverware holder conveniently located above trays.
• Corner Bumpers
• Plastic Silverware Cylinders
