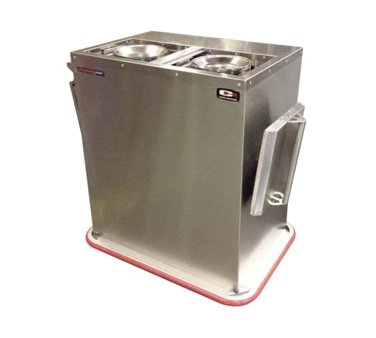

Carter-Hoffmann BH2S Plate and Base Heater
General Info
Combination base and plate heaters feature convection air and dual settings to hold plates or bases.
Heating System
High velocity blower air system; themostatically controlled to heat bases or plates. Thermally, protected fan motor with longlife bearings. High limit overheat protection, base/off/plate toggle switch and pilot/cycle light.
Carter-Hoffmann BH2S Standard Features
- All stainless steel construction for easy cleaning
- Enclosed design with convection air for even heating
- PBH2S combination cabinet features independently controlled silos to accommodate 1) both silos to hold plates, 2) both silos to hold bases or 3) plates in one silo and bases in the other silo
- Other models can accommodate either bases or plates in all silos. A flip of the switch to change the temperature setting and adjustment of the tension springs makes it easy.
- BH2S and BH3S are shipped from the factory pre-set for bases. PH2S and PH3S are shipped from the factory pre-set for plates.
- Removable lowerators with pulley style leveling system and adjustable springs for plate weight vs. base weight
- Bumpers are optional
Carter-Hoffmann BH2S Specifications
- Description : 2 Silo Base Heater
- Capacity: Wax Bases or Plates, 7" - 10.25" Dia : 120 Bases or 150 Plates
- Overall Dimensions (in/mm) : 45 1143 H X 23 584 D X 35 1/4 895 W
- Caster Diameter (in/mm)3 1/2-89
- Shipping weight (lbs/kgs) : 295/134
- Other Details : See spec. sheet
From The Manufacturer
Convection Base Heater, 2-silo, capacity (120) bases or (150) plates, 208v/60/1-ph, 3230 watts, 15.4 amps, cord with NEMA 6-20P, cULus, UL Eph Classified
