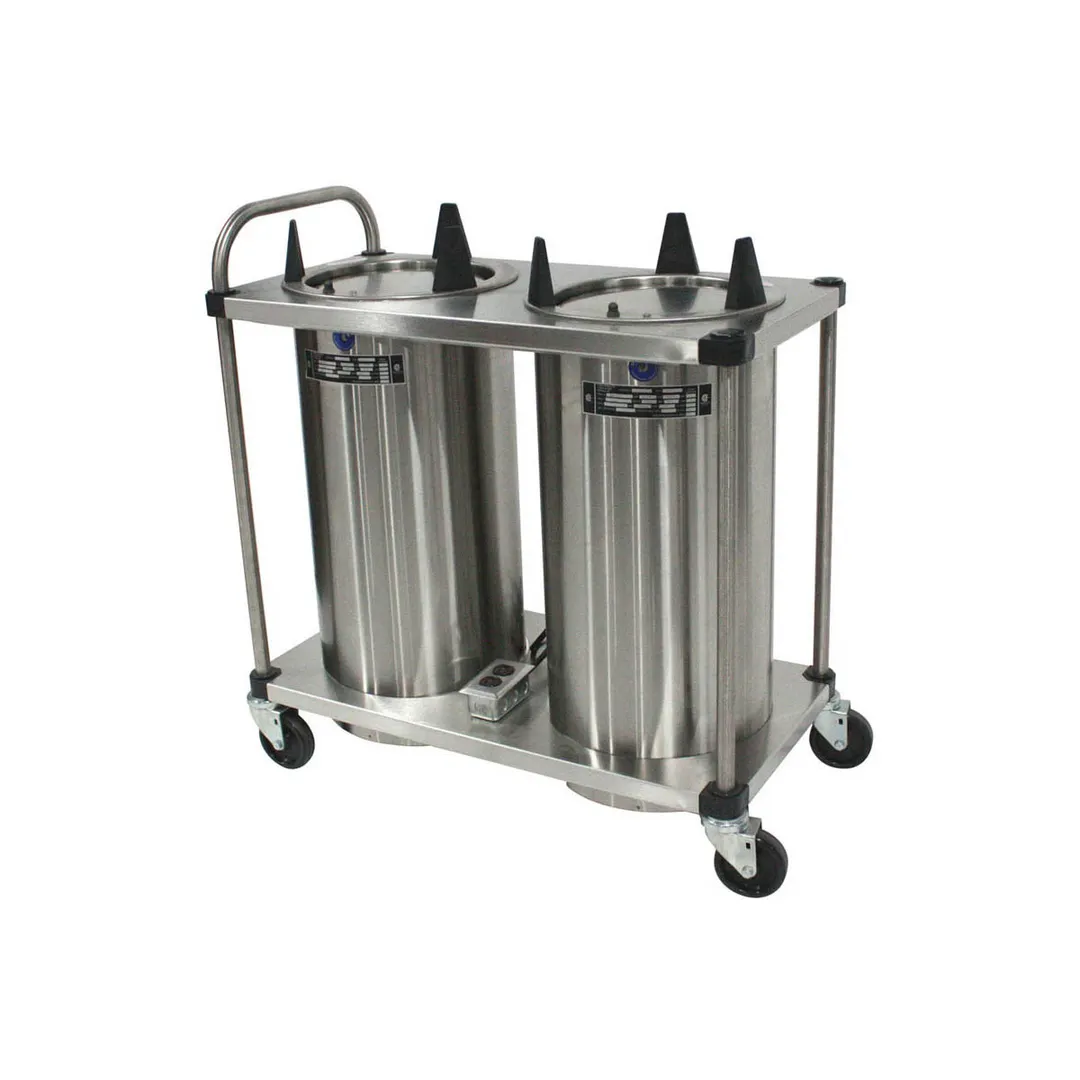

Piper Products 2ATGH75 Mobile Dish Dispensers - Self-leveling Dispensers
Why use Piper Products Dispensers?
Choosing the correct self-leveling dispenser is as simple as considering your application. Mobile units are ideal for temporary set-ups, mobile buffets or when transport is necessary. Drop-in dispensers work best for permanent serving applications. Consider heated dispensers when temperature maintenance is an issue; and when sanitation is a concern, the shielded dispenser is the best fit. As one of the world’s leading manufacturers of dispensing equipment, Piper knows how to avoid those costly black holes in your food service operation. Save time and money by reducing labor, handling and unnecessary breakage while increasing capacity and mobility with dependable Piper dispensers. Perfect for plates, cups and saucers, glasses, trays or even napkins. Whether hot or cold, mobile or stationary, built-in or dropin, Piper dispensers offer a durable self-leveling model for every application
Piper Products 2ATGH75 Standart Features
- Field adjustable to accommodate different plate weights
- Self-leveling mechanism lifts out for easy cleaning
- Three plate guides keep plates properly aligned
- A floating plate suspended from extension springs supports the stack of plates
- Non-marking bumper attached at each corner and includes four 4" heavy-duty non-marking casters
- Accommodate plate sizes from 5 1/8” to 12”
- Open and enclosed mobile units come in combination of two-, three- and four-stacks
- Offered in heated and unheated models
Piper Products 2ATGH75 Specification
- Frame: The frame is constructed of 1" O.D. 16 ga. stainless steel tubing
- Shelves:Each shelf is press formed from a single sheet of 18 ga. stainless steel. It is flanged down 1-5/16" on all four sides and formed back at a 30º angle for rigidity. Each inside corner is fitted with an ABS black plastic bracket and sleeve to accommodate an upright. The bottom shelf on all models is set 8" above the floor.
- Dispenser: ATG models are fitted with model AT adjustable, drop-in dish dispensers. ATGH models are fitted with model ATH heated, adjustable, drop-in dish dispensers (See page D-9 for specifications of these dispensers). On heated units, the dispensers plug into a central junction box which is fitted with a 4' long, 3 wire cord set with NEMA 5-15P plug for 120 volt or NEMA 6-15P for 220 volt.* These units are also available for oval platters, Model ATDO.
- Casters:Units are mounted on four, 4'' diameter heavy duty, swivel casters with non-marking rubber tires.
