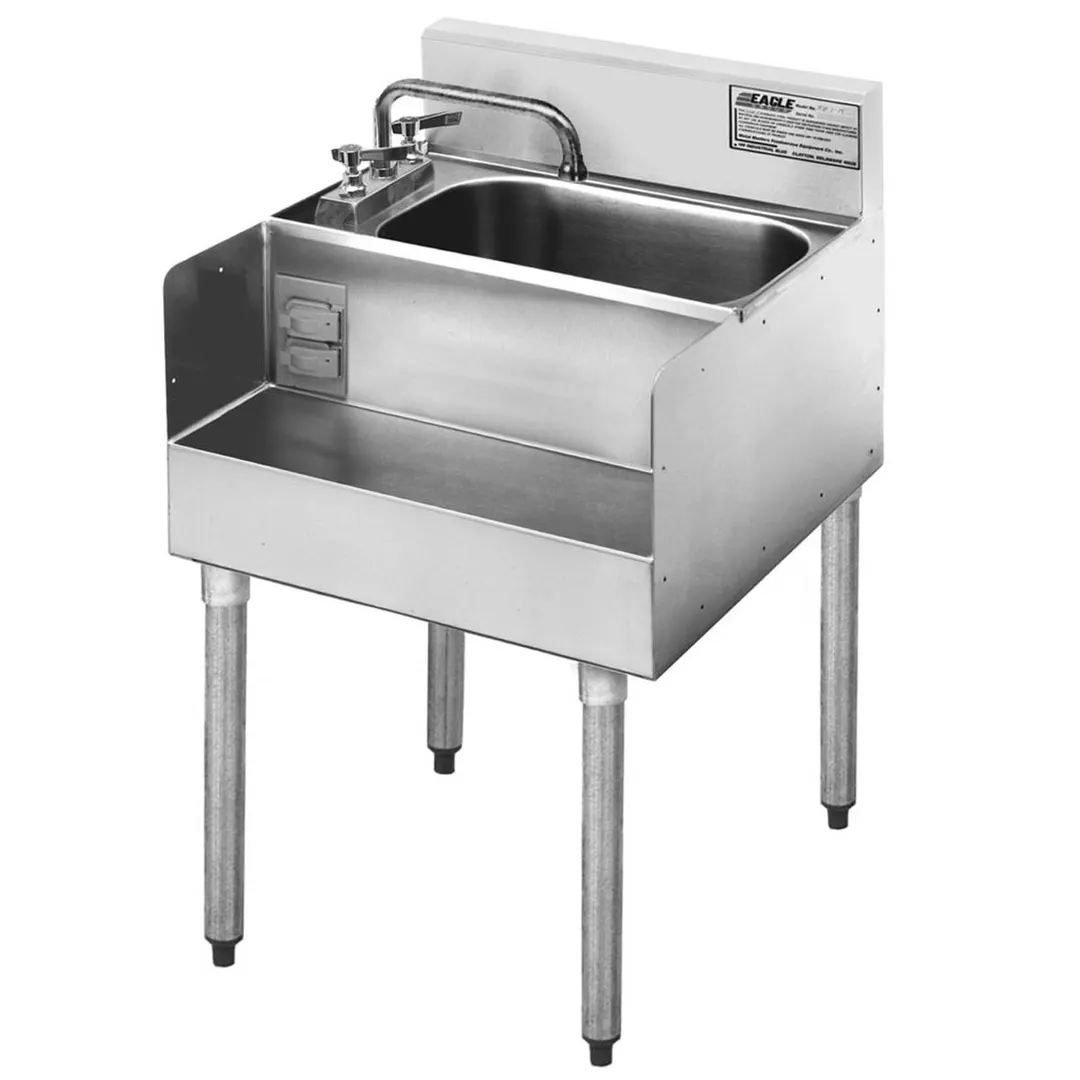

Eagle Group MA7-22 Modular Add-On Liquid Waste and Sink Step-Down Units For 2200 Series Underbar Units
Included In Liquid Waste Step-Down Units
Includes 6˝ (152mm)-diameter liquid waste assembly with removable stainless steel perforated liner, 1 1⁄2˝ (38mm) drain, and faucet.
Included In Sink Step-Down Units
Includes 10˝ x 14˝ (254 x 357mm) sink with 1 1⁄2˝ (38mm) drain and deck-mount faucet.
Eagle Group MA7-22 Features
- 18 gauge type 304 stainless steel construction.
- Add-on units attach to either end of underbar unit via predrilled mounting holes and pan-head screws.
- Models available for use with both 1800 Series and 2200 Series underbar units
- NEMA 5-20R, 120-volt 20-amp, duplex GFCI receptacle with waterproof cover plate.
- Includes knocked-down gusset/channel and galvanized leg assemblies.
Eagle Group MA7-22 Specifications
- Description : For 2200 Series units
- Overall Dimensions in.(mm) : 23 1⁄2" (597mm) W X 18" (457mm) L
- Shipping Weight (lbs.) (kg) : 37 (16,8)
From The Manufacturer
2200 Series Underbar Side-To-Side Modular Add-On Unit, 18"W x 23-1/2"D, blender/dump sink with faucet & basket drain, duplex recept. with waterproof cover plate (field mount & wire), 4" deck, 18 gauge 304 stainless steel top, (2) knocked-down gusset/channel & galvanized gusset assemblies with adjustable bullet feet
