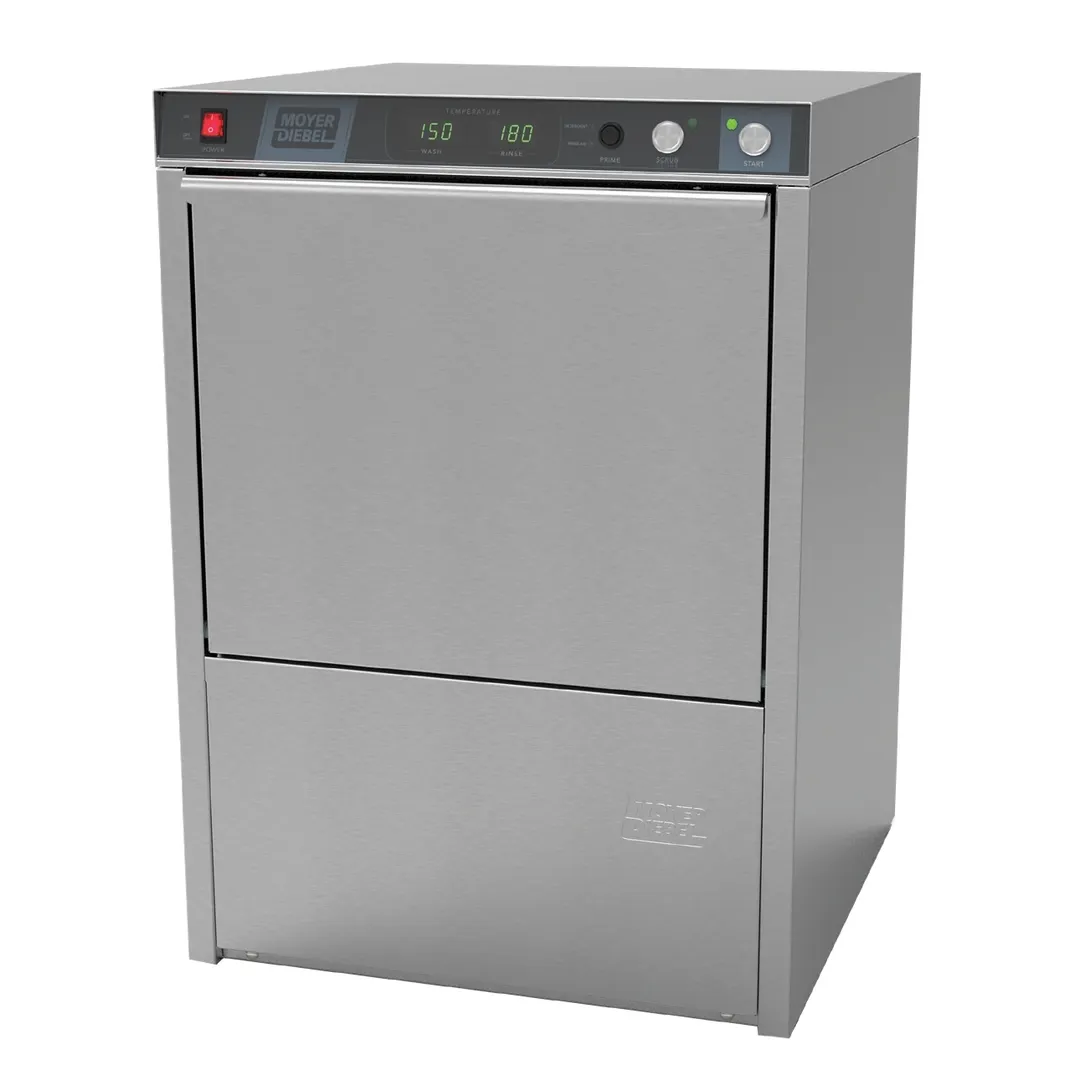

Moyer Diebel 201HT 24" Undercounter Dishwasher,25 Racks/Hr-38 Gal/Hr-High Temp w/Booster

Moyer Diebel 201HT undercounter dishwasher is a high-temp machine designed for commercial use in restaurants, bars, cafeterias, and other foodservice establishments. Washing up to 25 racks per hour, this undercounter dishwasher is a real workhorse for tight spaces. It occupies a small footprint and easily fits under any countertop with its compact dimensions of 33.75" H, 24" W, and 25" D (85.73 x 60.96 x 63.5 cm.) Moyer Diebel 201HT is specifically engineered to efficiently sanitize dishes, glassware, and utensils with minimum chemicals. A built-in booster rises the rinse temperature by 70°F (21.11°C), providing a final rinse temperature of 180°F (82.22°C.)

Moyer Diebel 201HT Undercounter Dishwasher: Ease of Use

Moyer Diebel 201HT high-temp undercounter dishwasher has many user-friendly features. Advanced digital settings let operators make wash cycle and temperature adjustments quickly. While advanced service diagnostics simplifies maintenance and reduces downtime, other features facilitate operation and installation.

• Wash Refresh™ drains the used water in the machine automatically to ensure that each new cycle always begins with new fresh water.
• StemSure™ activates the soft start feature, enabling gradual water flow into the machine. Soft start minimizes the risk of damage to delicate dishes and protects the dishwasher's internal components.
• Rinse Sentry monitors and guarantees that the final rinse water is at the desired temperature for effective sanitation and compliance with hygiene standards.
• Scrub Feature extends the wash cycle to handle heavily soiled dishes.
• Delime Feature spreads the wash cycle up to 20 minutes to help remove mineral buildup or limescale.
• Pumped Drain removes wastewater from the unit using a built-in pump. Thus, the Moyer Diebel 201HT dishwasher can be installed where gravity drainage is unavailable.
• The Door Safety Switch prevents the dishwasher from operating if the door is not securely closed, protecting users from potential hazards.
• Low Water Tank Heat Protection interrupts the wash tank heater's operation when the water level drops below a certain safe threshold to protect the electric heating elements.

Wash and Rinse Cycles

Moyer Diebel 201HT dishwasher completes a wash cycle in 90, rinse cycle in 60, and drain/fill cycle in 25 seconds, cleaning one rack only in 141 seconds. It does this quickly and effectively with interchangeable upper and lower wash/rinse spray arms, allowing customization of the dishwashing process with varying spray patterns. Interchangeable arms also ensure the dishwasher's interior receives thorough cleaning in every wash and rinse cycle. Detergent and rinse-aid dispensing pumps help maintain consistent results in each cycle.

Rack Configuration

Moyer Diebel 201HT high-temp dishwasher comes with 2 standard 20" by 20" (50.8 x 50.8 cm) racks: a peg rack for small-diameter dishes and a flat bottom rack for sheet pans, trays, and other larger items. The unit has a 15.75-inch (40-cm) door opening to facilitate loading bulkier wares.

Power, Temperature and Energy Ratings

Moyer Diebel 201HT's 1-HP wash pump provides a powerful spray of hot water mixed with detergent and circulates it throughout the wash chamber. The minimum water inlet temperature of 110°F (25.56°C) is increased to the maximum rinse temperature by a 6-kW booster. The tank heater uses 2 kW of electricity to retain the temperature within the 150 – 180°F (48.89 – 82.22°C) range.

Water Consumption and Pressure Ratings

Moyer Diebel 201HT consumes 1.8 gallons (6.81 liters) of water per rack, amounting to 38.4 gallons (145.30 liters) an hour. The ideal hot water supply pressure range is 25 – 95 PSI. Also, the recommended incoming water hardness is 3 grains/gal (5.3 mg/L) to prevent water-related issues. The unit comes with a flexible 6-ft. (1.83 m) hot water fill hose and a 6-ft. (1.83 m) drain hose.

Build Quality

Moyer Diebel 201HT is constructed from commercial-grade stainless steel panels and wash/rinse arms. The manufacturer supports this durable construction with a 1-year parts and labor warranty.

Compatibility

This unit requires 208-240/60/1 and 3-wire plus ground electrical connection, but the multi-power feature allows for an infield electrical connection to accept 3-phase power. Please refer to the Moyer Diebel 201HT manual to check compatibility with your existing water and electrical setups.
