Efficient Walk-In Cooling for Commercial Kitchens

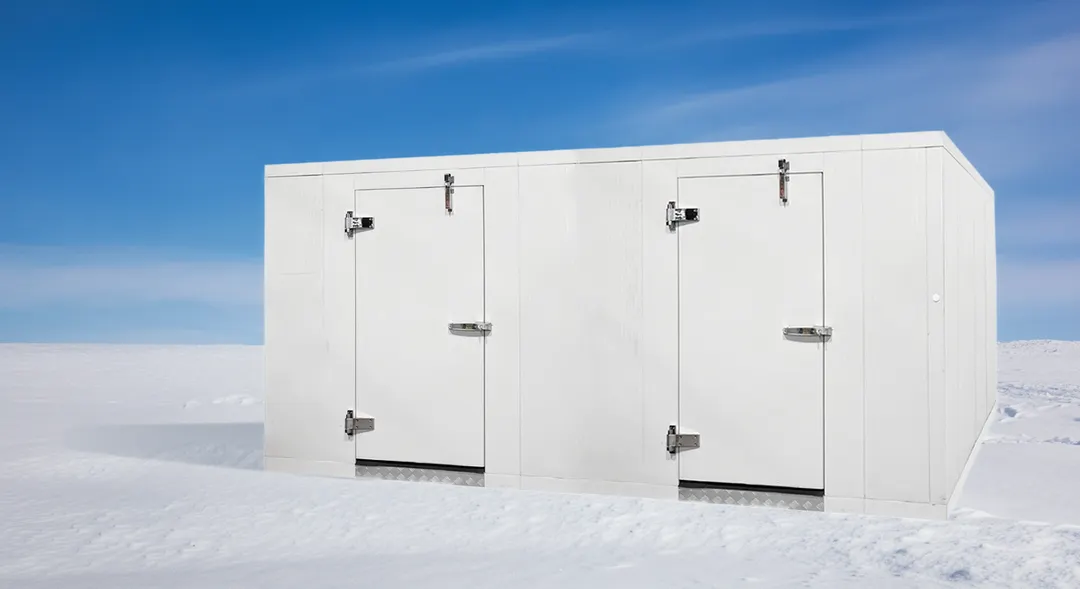

The Astra CMB12X8 delivers reliable, energy-efficient walk-in cooling and freezing for high-volume kitchens.
Key Features
- Dimensions 11'6" W × 8'2" L × 7'7" H with floor and ceiling panels of 24 ga pre-painted white galvanized steel.
- 4" foamed-in-place polyurethane insulation provides R28 for the cooler side and R33 for the freezer side.
- Cam-lock, tongue-and-groove panels and self-closing, keyed-lock doors meet NSF, UL723, DOE and ASTM certifications.
- 120 V/60 Hz single-phase heater wire on freezer doors and pressure-relief vent ensure safe operation.
- Optional diamond-plate floor adds durability for pallet-jack traffic.
From The Manufacturer
Astra Quick Ship Indoor Walk-In Cooler/Freezer Combination (CMB), both with floor, 11'6"W x 8'2"L x 7'7"H, 4" thick foamed-in-place polyurethane insulation providing R28 for coolers and R33 for freezers, cam-lock panels, tongue and groove design, 24 gauge pre-painted white galvanized steel on interior and exterior surfaces, CFC and HFC free materials, self-closing, flush-mounted doors, keyed locking door handle, 120v/60/1-ph, 1 amp heating wire on freezer doors, pressure relief vent for freezer, NSF, UL, DOE, ASTM Test 518, ASTM Test E84, UL723 Flame Spread and Smoke Development Compliant, 24 gauge pre-painted white galvanized steel panel for floor (same as ceiling panel), optional diamond plate
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
