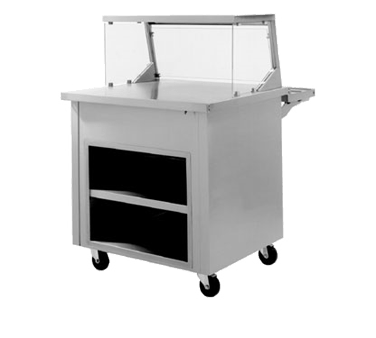

The Delfield SC-28-NU Shelleysteel Mobile All Purpose Counters
Why Use Delfield's Shelleysteel?
Shelleysteel’s rugged, welded stainless steel body stands up to everyday abuse. This versatile equipment offers an almost unlimited selection of laminate colors and designs to customize for your needs. Best of all, it’s a cost-effective system that’s easy to modify over years of use.
Built to Last
Shelleysteel bases have a heavy, 18-gauge stainless steel exterior, reinforced with overlapping 16-gauge corners that are welded in place. The galvanized steel bottom adds extra rigidity and strength. Coved corners protect the laminate from wear and tear and make cleanup easier.
Built to Suit You
Let Delfield create your ideal lineup. Select Shelleysteel bases in a variety of custom lengths, with counter heights from 28 to 36 inches. Add canopies, decal packages and other trim.Short on space? A horseshoe layout can help move students through a concentrated area while staff monitors multiple locations with fewer steps.
High Quality Construction
- Bases are mobile and modular for greater versatility
- 14-gauge stainless steel tops
- Easy, soap-and-water-cleanable, durable, stainless steel surfaces
- 18-gauge welded stainless steel body with structural integrity
- 5” polyurethane locking casters are standard
- UL and NSF listed
- Easy-to-use, stainless steel, fully retractable interlock system on bases and tray slides
Easy To Use
Hot food wells are easily serviced through a convenient, removable panel . . . no need to remove the top
High Quality
Delfield’s exclusive tray slide bracket design has been tested to withstand 200 pounds with no deflection. Perfect when kids lean or sit on the tray slides!
Delfield SC-28-NU Specification
- Exterior body is constructed of 18-gauge stainless steel side panels and 14-gauge galvanized bottom. All exterior side panels are reinforced with overlapping corners and are welded in place. All body cutouts are reinforced with 14-gauge galvanized channel supports
- Exterior top is constructed of 14-gauge stainless steel, welded, ground and polished into one integral unit. Top is fabricated with square exterior corners.
- Casters:Unit is mounted on 5” (13cm) diameter swivel casters with non-marking polyurethane tires and plate brakes. Overall height of caster assembly is 6.00” (15cm).
Delfield SC-28-NU Options & Accessories
- 12” (30.5cm) wide stainless steel fold-down tray slide
- 9” (22.9cm) wide three-bar folddown tray slide
- 10” (25.4cm) wide composite fold-down cutting boards
- 10” (25.4cm) wide stainless steel fold-down work shelf
- Line-up interlock device
- Glass-front counter protector
- Two tier display with glass shelves and sneezeguards
- Dual service two tier display with sneezeguards
- Three tier display with glass shelves and sneezeguards
- 12” (30.5cm) wide 18-gauge stainless steel overshelf
- Single service flip-up sneezeguard
- Double service flip-up sneezeguard
- *Fluorescent or incandescent light fixtures (specify which)
- *Radiant heat lamps
- *Bullet-style heat lamps
- Open understorage with shelf (SC-NU Series only)
- *120V/60Hz/1ø, 10 amp convenience outlet with breaker SG5A
- Single dry insert with doors(SC-NU Series only) SG5B)
- Double dry insert with doors (SC-NU Series only)
- Stainless steel trim strips
- 14” x 30” (35.6cm x 76.2cm) stainless steel end drop shelf
- 6” (15.2cm) high adjustable stainless steel legs in lieu of casters
* Inclusion of these options will alter the electrical specifications of the unit
