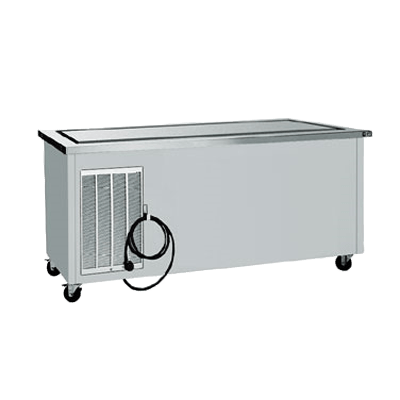

The Delfield SCFT-60-NU Shelleysteel Mobile Self-Contained Frost Top Serving Counter
Why Use Delfield's Shelleysteel?
Shelleysteel’s rugged, welded stainless steel body stands up to everyday abuse. This versatile equipment offers an almost unlimited selection of laminate colors and designs to customize for your needs. Best of all, it’s a cost-effective system that’s easy to modify over years of use.
Built to Last
Shelleysteel bases have a heavy, 18-gauge stainless steel exterior, reinforced with overlapping 16-gauge corners that are welded in place. The galvanized steel bottom adds extra rigidity and strength. Coved corners protect the laminate from wear and tear and make cleanup easier.
Built to Suit You
Let Delfield create your ideal lineup. Select Shelleysteel bases in a variety of custom lengths, with counter heights from 28 to 36 inches. Add canopies, decal packages and other trim.Short on space? A horseshoe layout can help move students through a concentrated area while staff monitors multiple locations with fewer steps.
High Quality Construction
- Bases are mobile and modular for greater versatility
- 14-gauge stainless steel tops
- Easy, soap-and-water-cleanable, durable, stainless steel surfaces
- 18-gauge welded stainless steel body with structural integrity
- 5” polyurethane locking casters are standard
- UL and NSF listed
- Easy-to-use, stainless steel, fully retractable interlock system on bases and tray slides
Easy To Use
Hot food wells are easily serviced through a convenient, removable panel . . . no need to remove the top
High Quality
Delfield’s exclusive tray slide bracket design has been tested to withstand 200 pounds with no deflection. Perfect when kids lean or sit on the tray slides!
Delfield SCFT-60-NU Standard Features
- Frost top is one piece stainless steel construction; perimeter drain with valve located at bottom of unit standard
- All exterior panels reinforced with overlapping corners, welded in place
- SCFT-60-NU: 60” Mobile frost top serving counter without understorage
- Stainless steel exterior body and top
- Galvanized bottom
- 18” x 26” sheet pan can rest on frost top
- On/off switch located on exterior of unit
- SCFT units are standard with enclosed base
- Environmentally friendly R404A refrigerant
- A maximum 10’ long cord and plug
- All body cutouts reinforced with channel supports
- All units are standard on 5” diameter polyurethane swivel casters for easy cleaning
- Easy to use stainless steel interlock system is standard on base and tray slides
- Environmentally friendly HFC-404A refrigerant
- One year parts and 90 day labor standard warranty
Delfield SCFT-60-NU Options & Accessories
- Tray slides and work shelves
- 10” (25cm) wide composite fold-down cutting boards
- Line-up interlock device
- Food shields
- Glass-front counter protector
- 12” (30cm) wide stainless steel overshelf
- Fluorescent or incandescent light fixtures*
- Open understorage with shelf
- 120V/60Hz/1ø, 10 amp convenience outlet with breaker*
- Dry storage compartment
- Stainless steel trim strips
- 14” x 30” (36cm x 76cm) stainless steel end drop shelf
- 6” (15cm) high adjustable stainless steel legs in lieu of casters
- Laminate exterior panels in lieu of stainless steel exterior panels
* Inclusion of these options will alter the electrical specifications of the unit
Delfield SCFT-60-NU Specification
- Exterior body is constructed of 18-gauge stainless steel side panels and 14-gauge galvanized bottom. All exterior side panels are reinforced with overlapping corners and are welded in place. All body cutouts are reinforced with 14-gauge galvanized channel supports
- Exterior top is constructed of 14-gauge stainless steel, welded, ground and polished into one integral unit. Top is fabricated with square exterior corners.
- Frost top is stainless steel, one-piece construction and perimeter trough. Underside of frost top is sealed with refrigeration lines and insulated with high-density, closed cell environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. Frost top assembly is enclosed in a galvanized steel jacket. The frost top is separated from the exterior top be a thermal break.
- Refrigeration system uses HCFC-404a refrigerant and has a self-contained 115 volt, 60 Hertz, single phase hermetically sealed condensing unit. Unit is wired with a 3-wire, grounded, maximum 10’ (3m) cord and plug. Unit has an on/off switch mounted on the exterior
- Casters:Unit is mounted on 5” (13cm) diameter swivel casters with non-marking polyurethane tires and plate brakes. Overall height of caster assembly is 6.00” (15cm).
